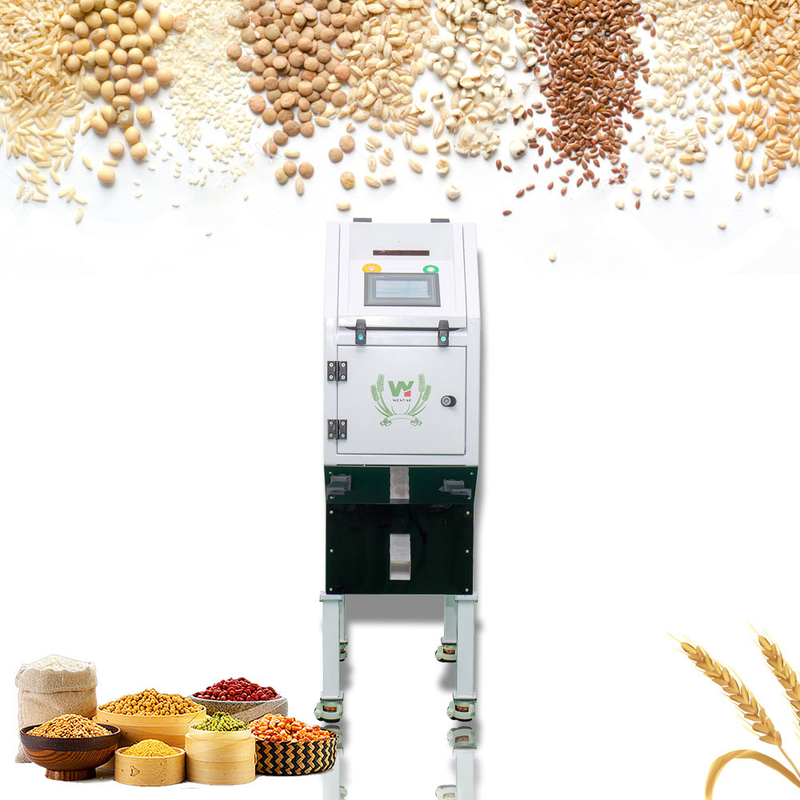

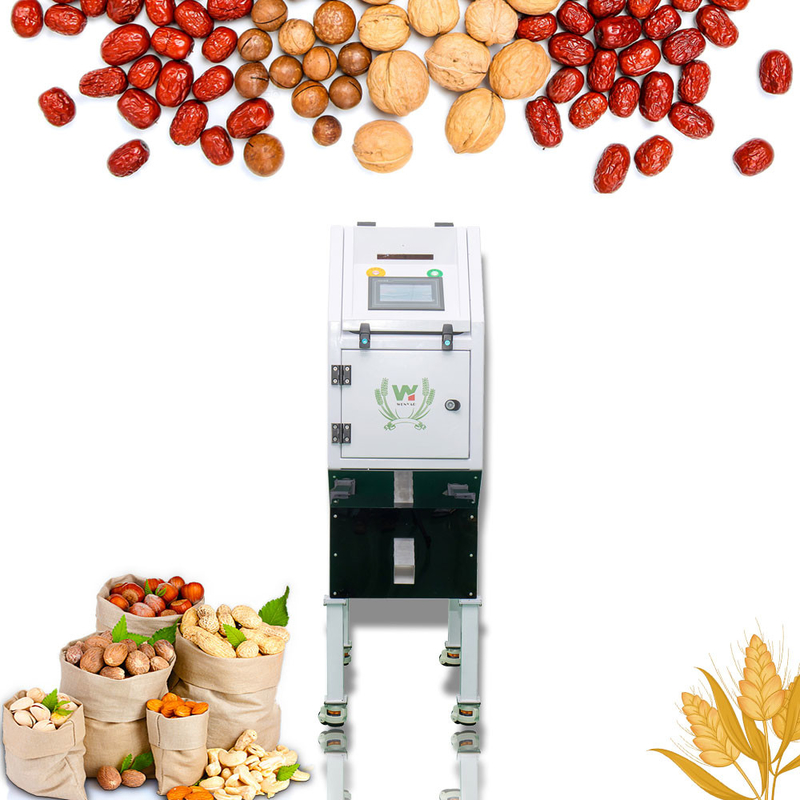

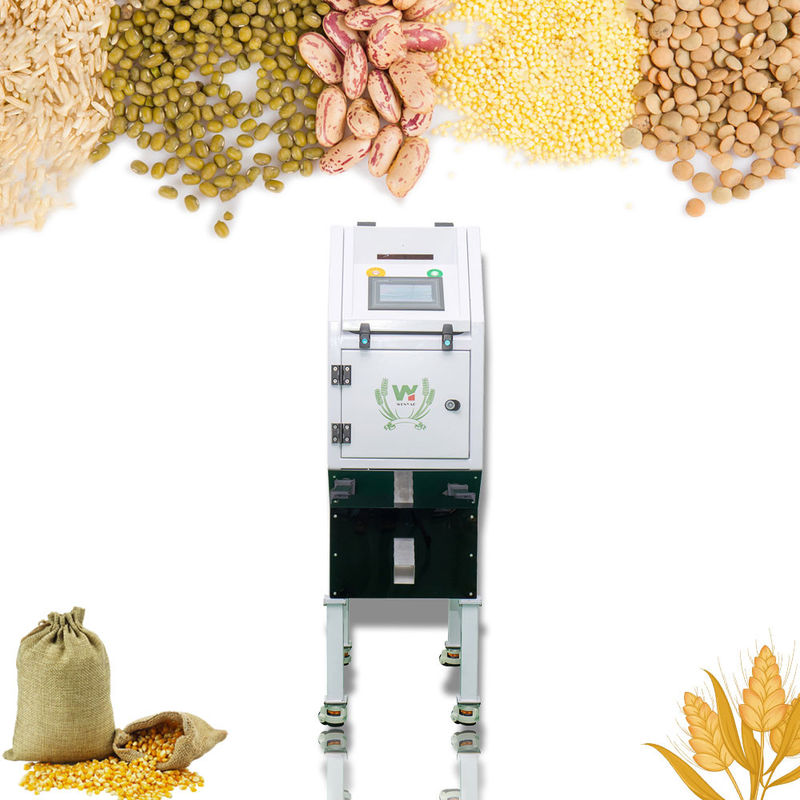

32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size

32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size

32 Channels Color Sorting Machine

Color Sorting Machine Intelligent

Mini Color Sorter 32 Channels

Place of Origin:

China

Brand Name:

wenyao

Certification:

CE

Model Number:

WYCS1-32

Contact Us

Request A Quote
Product Details
Warranty:
2 Years
Voltage:
220v/50~60hz
Capacity:
300-500kg/h
Sorting Accuracy:
99.95%
Machinery Function:
Color And Size Sorting
Power:
0.50kw
Optical Camera:
Toshiba Brand
Electromagnetic Valve:
Japan SMC
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
5500-6000usd
Packaging Details
Wooden case
Delivery Time
3-5working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
500pcs per month
Product Description

Small 32 Channels Intelligent Toshiba Camera CCD Compact Mini Size,Shape and Color Sorting Machine



Introduction:

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber



Machine Features:

►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.



32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size 0Packing

32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size 1

32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size 2



32 Channels Intelligent CCD Shape And Color Sorting Machine Compact Mini Size 3
