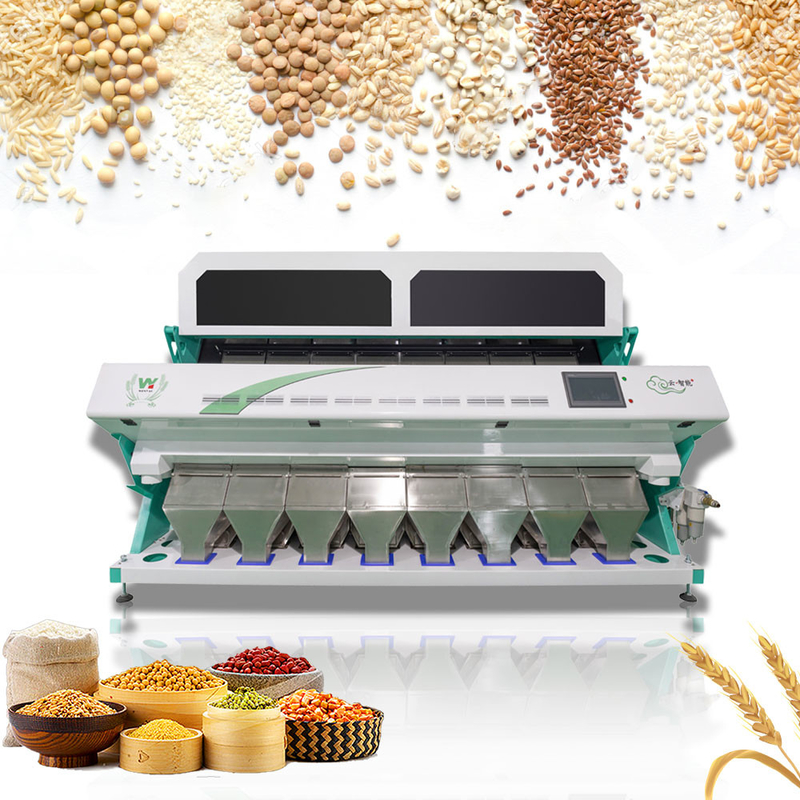

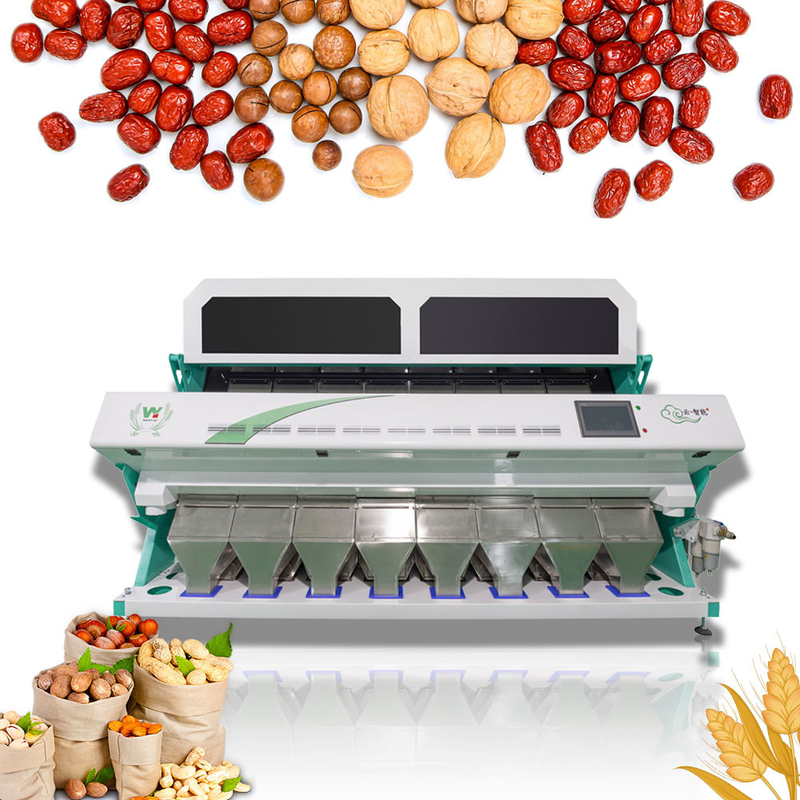

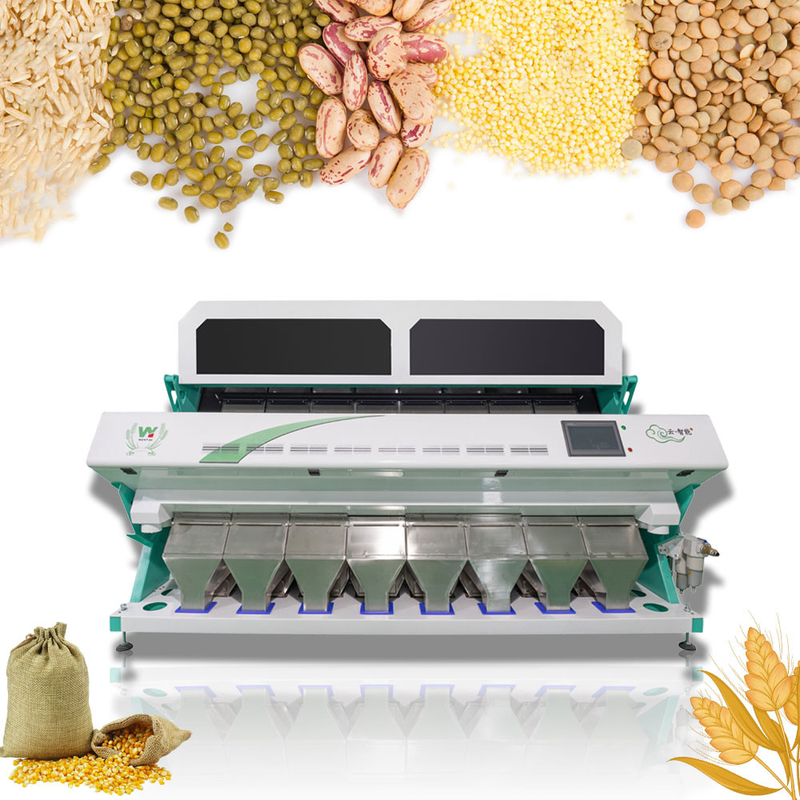

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera

Chia Seeds Color Sorter Machine

512 Channels Color Sorter Machine

Chia Seeds Color Sorting Machine

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS8-512

Contact Us

Request A Quote
Product Details
Color:
Blue Frame Or According To Customer Requests
Chutes:
8
Channels:
512
Sorting Accuracy(%):
≥99.99
Remote:
Wifi Remote Control
CCD:
Toshiba
Camera:
RGB Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Chia Seeds Color Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
New
Throughput:
1-2t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High Quality 8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera



Chia seeds color sorter working principle:

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 0

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 1



When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Chia Seeds Color Sorter Technical Parameters:

MODEL WYCS8-512
Chutes/Channels 8/512
Throughput(t/h) 1-2t/h
Sorting Aaccuracy ≥99.99%
Power 5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1500kg
Diamension(L*W*H) 3025*1540*1852mm

Throughtput:Different impurity with different throughput.



Chia seeds color sorter features:

.

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.



Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.



Examples of color sorting:

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 2

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 3

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 4

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 5





8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 6

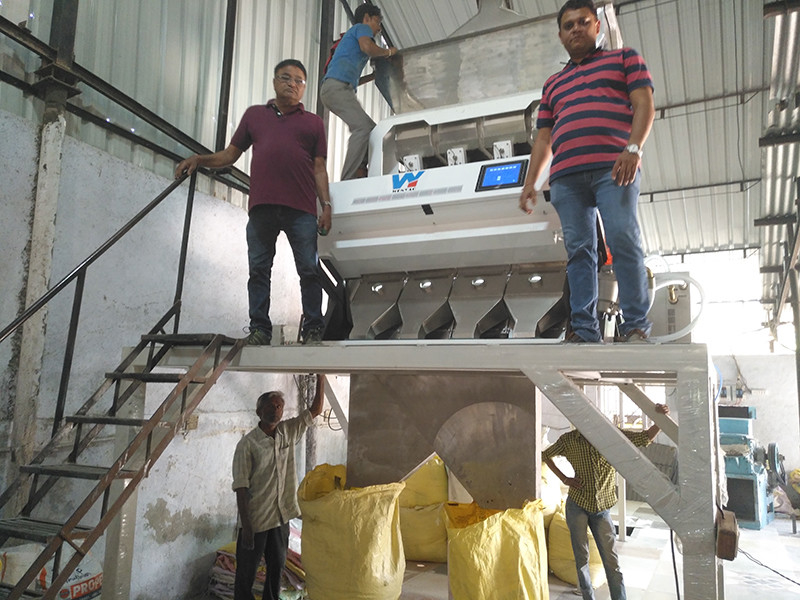

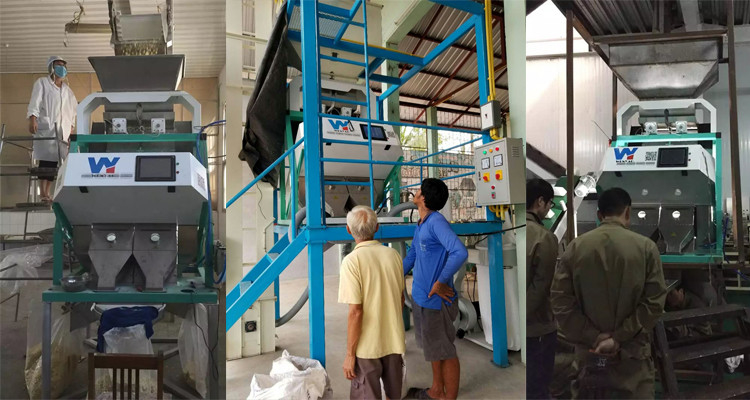

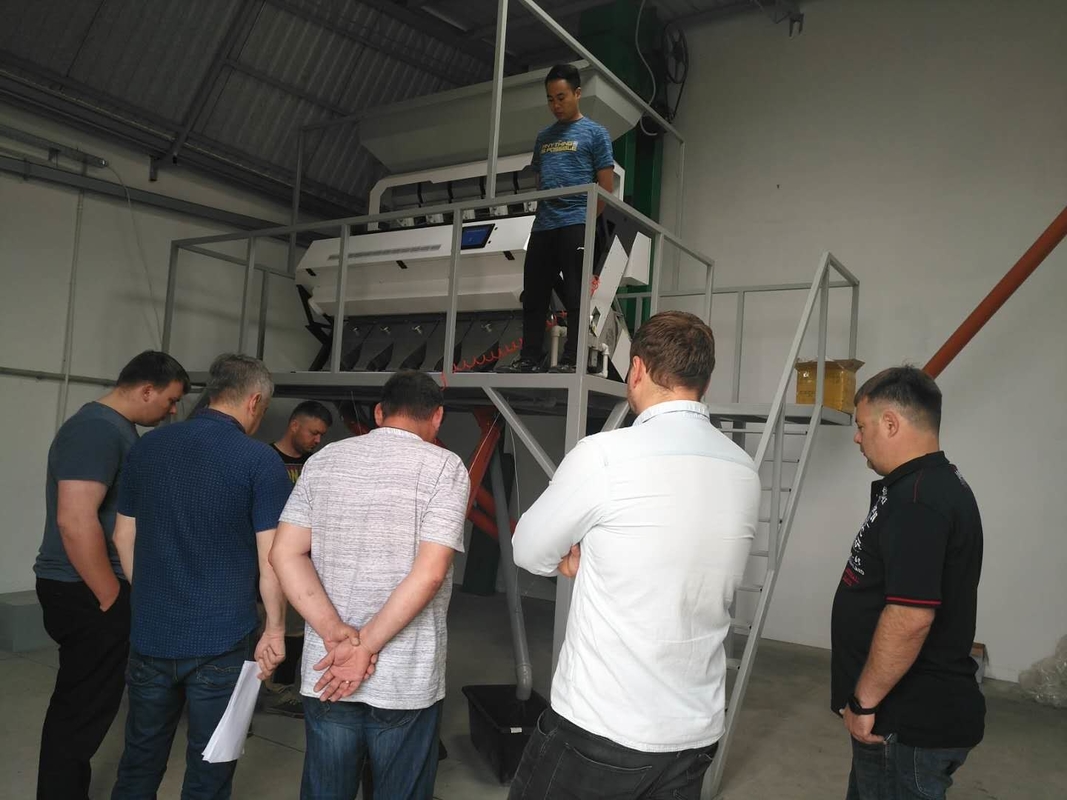

Customer site:



8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 7

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 8

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 9

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 10

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 11

Delivery:

8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 12



8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 13



8 Chutes 512 Channels Chia Seeds Color Sorter Machine With RGB Camera 14
