| Place of Origin: | China |
|---|---|
| Brand Name: | WENYAO |
| Certification: | CE & ISO9001 |
| Model Number: | WYCS1-64 |
| Minimum Order Quantity: | 1 PCS |
| Price: | Negotiable |
| Packaging Details: | Plywood case package Packing size(L*W*H):3.35*1.72*2.05M |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200PCS Per Month |
| Function: | Color And Shape Sorting | Sorting Accuracy(%): | ≥99.99 |
|---|---|---|---|
| Ejector: | Metal | Color: | Blue,according To Customer's Need |
| Light: | LED | After-sales Service Provided: | Available |
| Application: | Coffee Bean Sorting | CCD: | Toshiba |
| Camera: | RGB Camera | Lamp: | Variable Light Background |
| High Light: | Wifi Remote Control Automated Sorter,Wenyao Automated Sorter,Wifi Remote Control Wenyao Sorter |
||

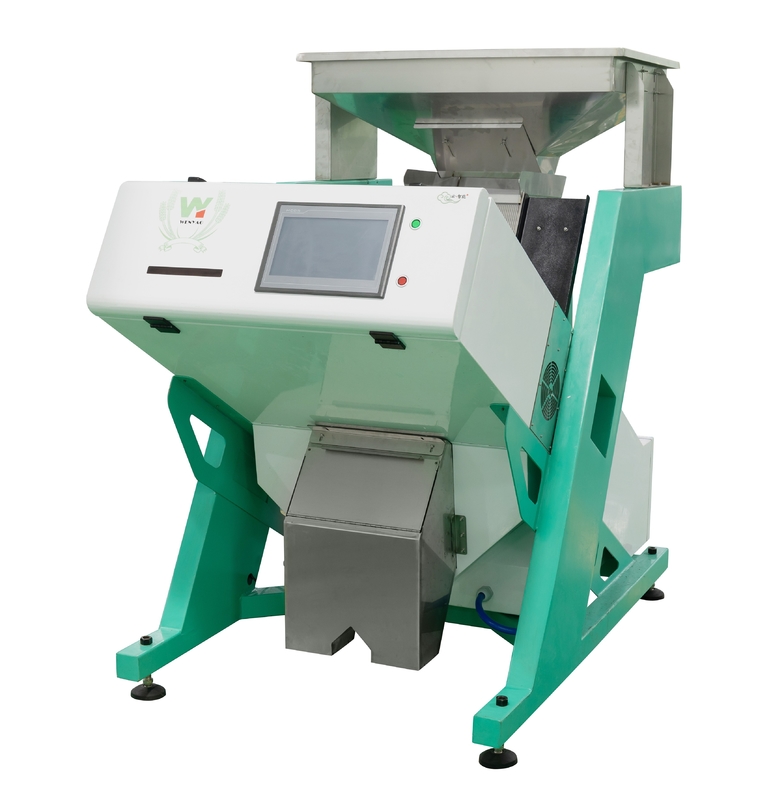

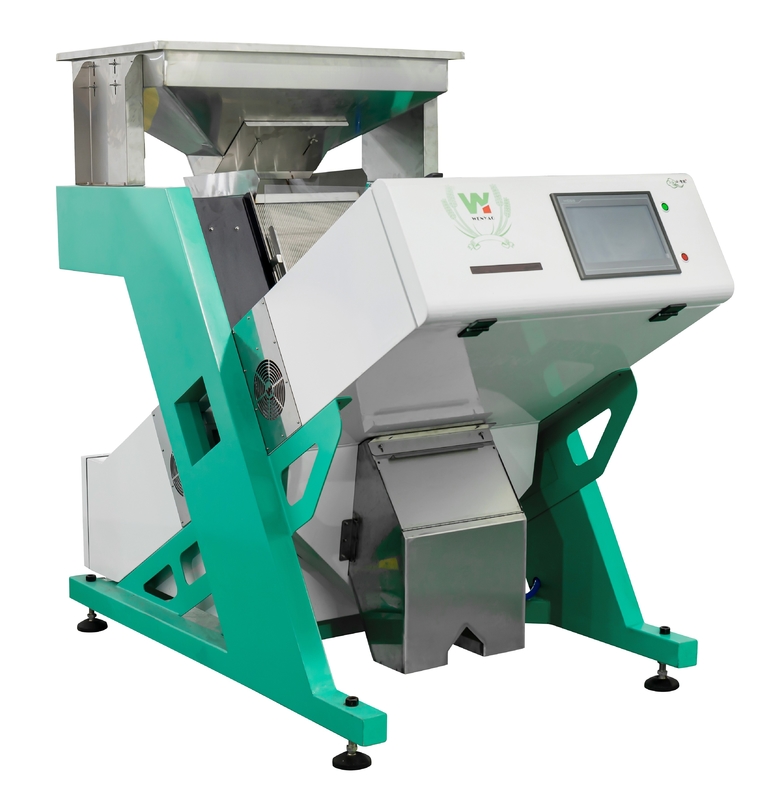

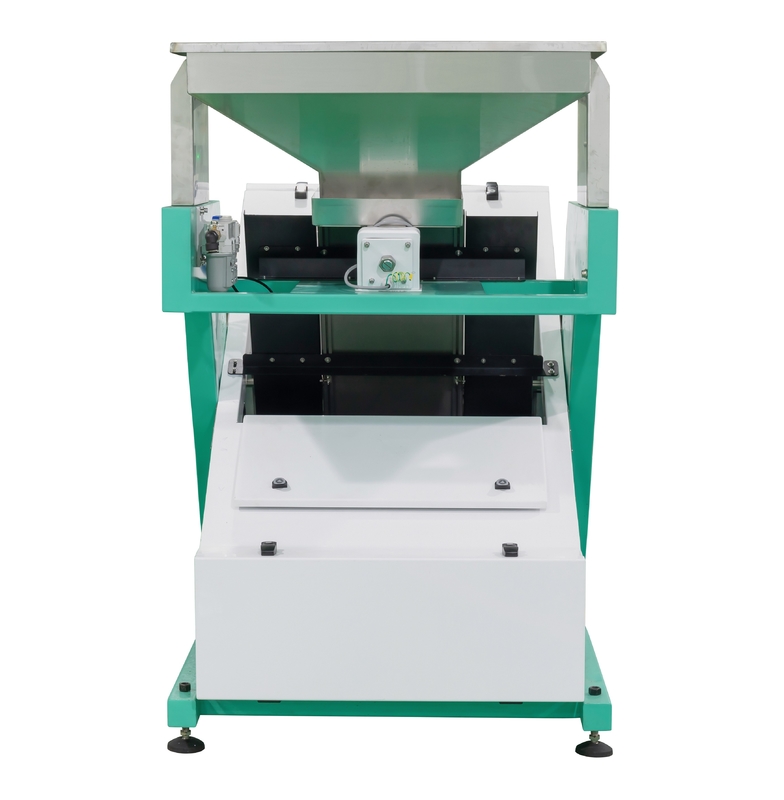

Wifi Remote Control System Wenyao Beans Intelligent Automated Color Sorter Sorting Machine Ce Certificate
Wenyao Multifunction Color Sorter Description:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 500-1200kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <600L/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1530*1543mm |
Throughtput:Different impurity with different throughput.
Features:
►5400Pixel CCD image acquisition system with high speed chip.
►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►Variable light background easy to operate.
Examples of color sorting:
Our Service:
A:For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.
B:For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.
How to select a most suitable machine:
Step 1: Confirm the products which you want to sort
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Step2: What's the capacity per hour will you needs
Such as: 300kg/h, 500kg/h, 800kg/h, 1ton, 3ton,5 ton...,etc
Welcome your inquiry:
