Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera

Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera

Red Quinoa optical color sorter

White Quinoa Multifunction Color Sorter

Optical Sorting Machine With Toshiba CCD

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS4-256

Contact Us

Request A Quote
Product Details
Function:
Ccd Color Sorter
Sorting Accuracy(%):
99.99%
Warranty:
2 Years Warranty
Condition:
New Color Sorting
Color:
White ,blue ,green ,yellow Can Be Customized
Application:
CCD Color Sorter
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available
Camera:
Toshiba
Rejection Rate:
30:1
Air Pressure:
0.6-0.8
Voltage:
220V 50HZ, 220V 50HZ
Whole Power:
2.3KW
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Delivery Time
15 to 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100PCS Per Month
Product Description

Red White Quinoa Optical Color Sorting Machine Multi Functional With Toshiba CCD Camera



Technical Parameters:

MODEL WYCS4-256
Chutes/Channels 4/256
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 2.3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 750kg
Diamension(L*W*H) 1855*1540*1852mm




Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc.



When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Red White Quinoa Optical Color Sorting Machine Multi Functional With Toshiba CCD Camera

Color sorter :



One of the primary uses of an optical color sorter is to find blemishes in products, and remove unsatisfactory items from the manufacturing process. These flaws may be merely superficial, or they might indicate that a product is defective or unsafe. In a factory that produces a specific size item, for example, a defect or size variation with one of the products could cause significant problems. An optical sorter can detect the defect, and remove the improperly sized part before it is released from the factory.




Color sorter Principle as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 0





Examples of color sorting:



Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 1

Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 2

Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 3



Red White Quinoa Optical Color Sorting Machine Multi Functional With Toshiba CCD Camera

Advantage:

A: Free direct the installation and operation of the equipments and train operators for customer.
B: Safe and reliable, efficient and energy saving, easy operating.
C: In time with English operating instruction program.

D: Timely, professionally



Installation and commissioning of color sorter machine

The optical color sorter must be installed at an overall level. It should be installed in a place without vibration to avoid vibration and reduce the accuracy of color selection. Do not install the color sorter in a place where it can be directly exposed to sunlight, as it will affect its photoelectric system to collect signals. Do not install the color sorter in a humid, hot, dusty place. If possible, install it in a separate and isolated room, and install air conditioning maintenance. As for the color sorter commissioning, senior engineers generally need to work on site, because work experience and professional knowledge are required.

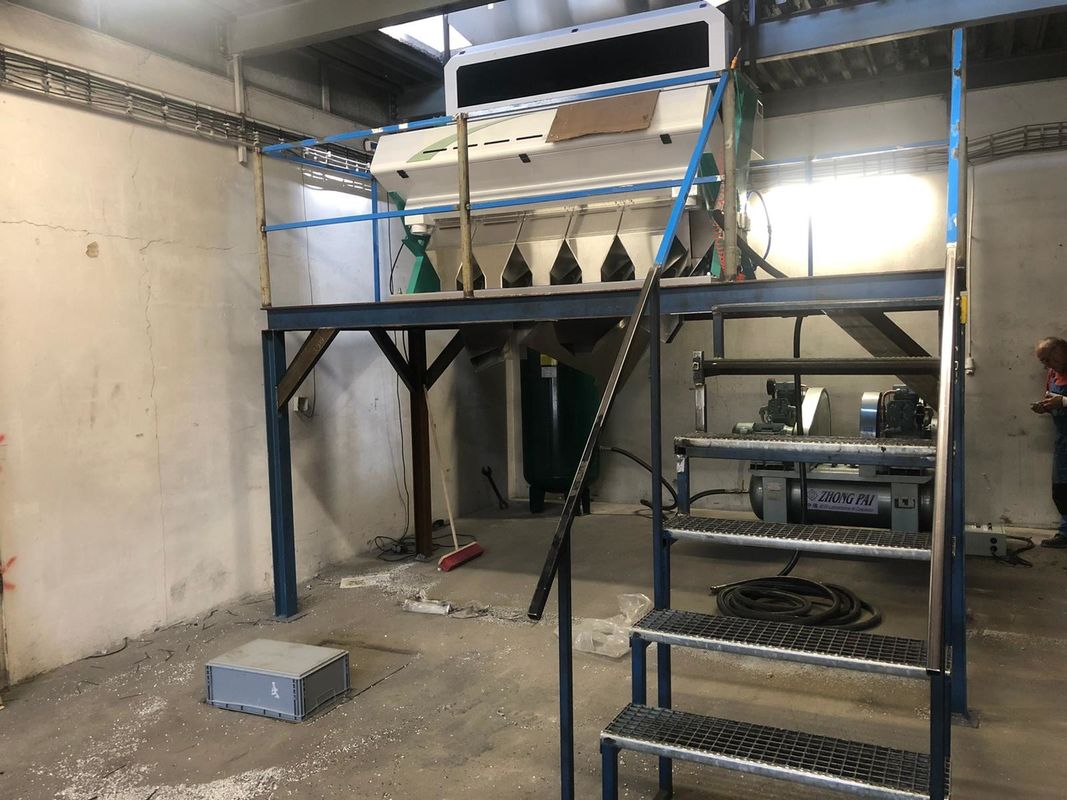

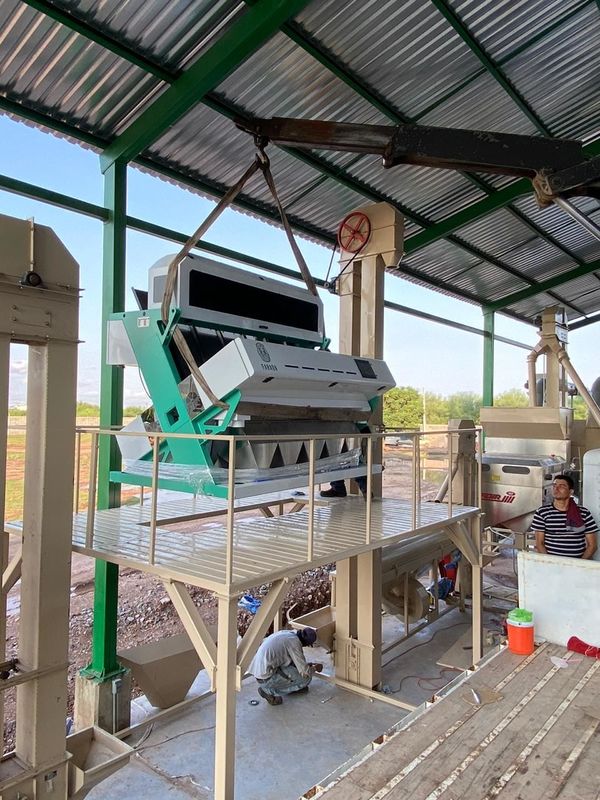

Customer's Site :



Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 4

Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 5



Red White Quinoa Optical Color Sorter Multi Functional With Toshiba CCD Camera 6
