Newest technology High quality Series Rice Optical Sorting Machine Rice Color Sorter For Rice Mill
Company profile
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is located in "The city of science and education" reputation, - Hefei City Anhui China. The company is located in the high-end positioning Yaohai City Technology Industrial Park Is a comprehensive high-tech enterprise integrating scientific research, development, production, sales and service of CCD intelligent color sorter and near infrared color sorter. Mainly for the industry to provide high-end sorting, sorting and other equipment, has for many enterprises and individuals to provide professional, quality products and services.
Product Description:

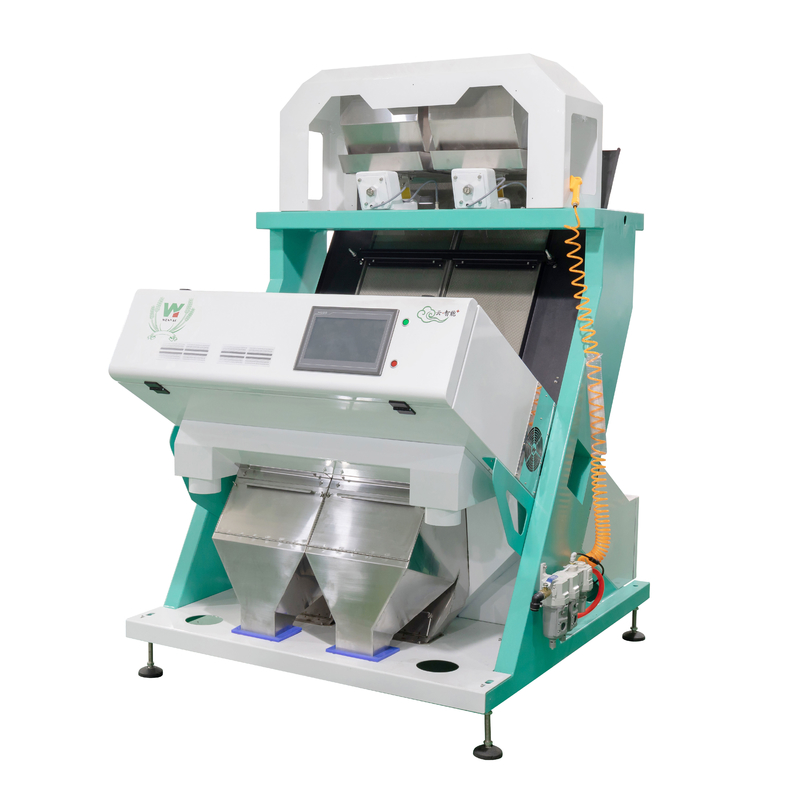

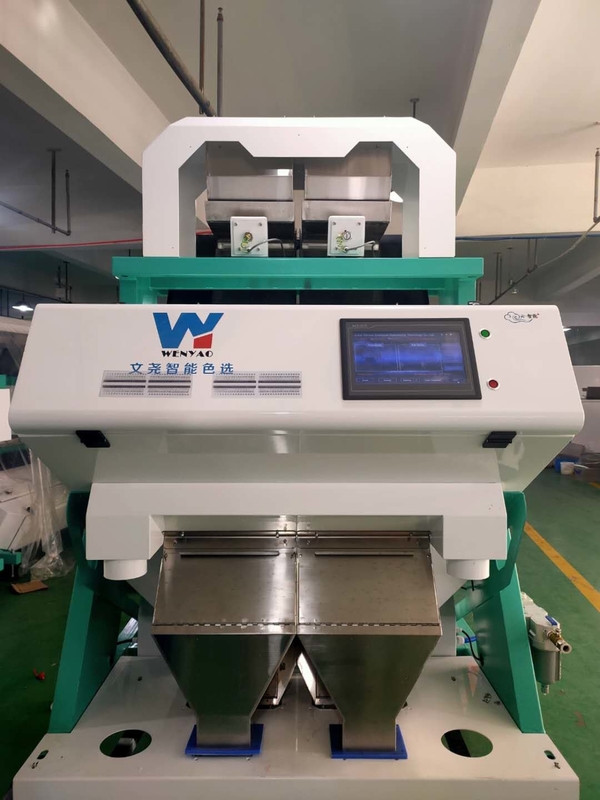

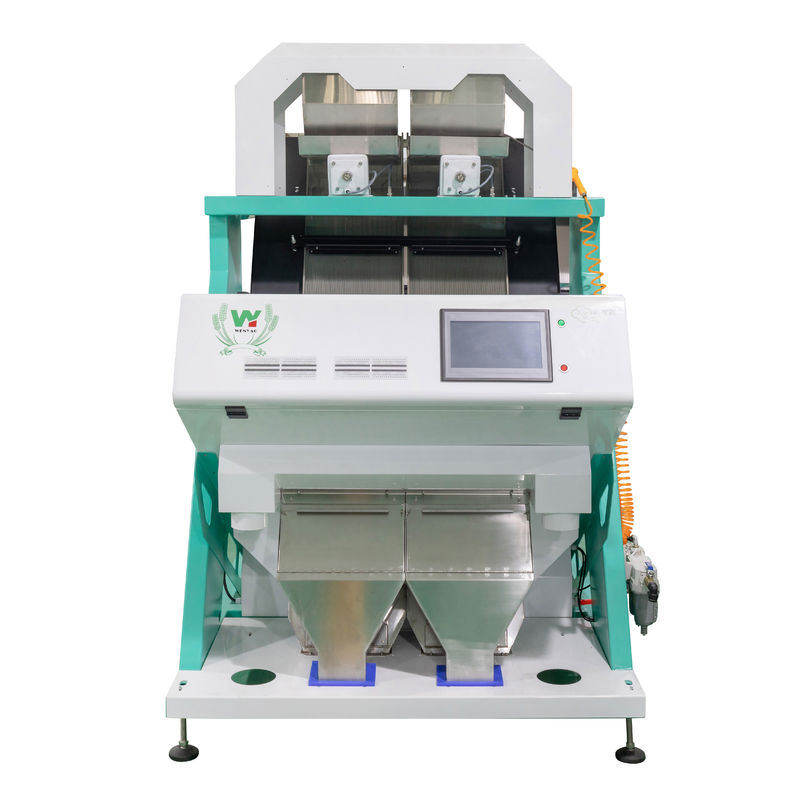

Machine name: Excellent Quality Optical Radish Seed Ccd Color Sorter Turnip Color Sorting Machine
Function : Remove unqualified Seed automatically
Working Principle: Optical principle, with latest CCD camera,LED light
Models: Different channel (size) machines available for choosing,depands on the required capacity.
How to get the correct size and price for wenyao color sorting machine?
Please contact us according to the following questions if you need color sorter prices:
• Step 1.What kinds of the material are you planning to sort processing?
• Food materials:
• Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
PARTS DETAILS:
►5340 linear CCD camera with high precision allows high definition identification and high speed sorting.
Most advanced ccd technology can sort materials accurately.
Toshiba CCD sensor
American process chip
►Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.
High quality FPGA processing technology, defects of 0.04mm2 can be detected.
►Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.
Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change the light source.
►We adopt imported original SMC Filter which has high reputation in color sorter accessories market.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

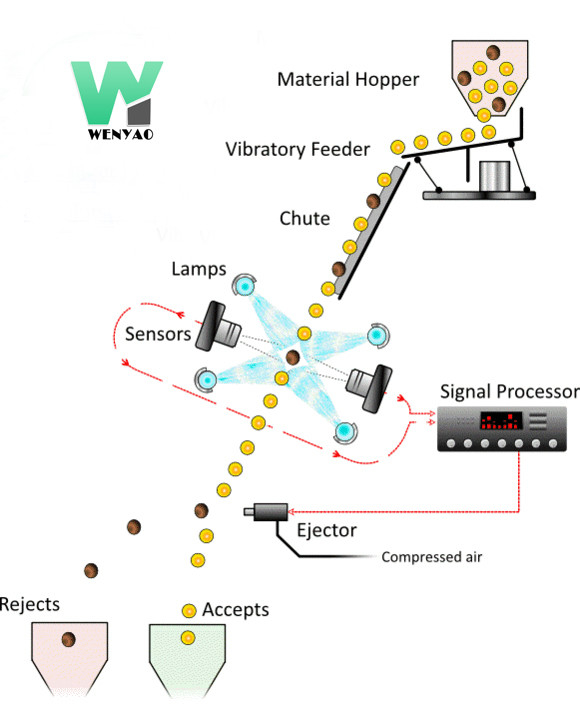

Steps:
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Examples of Color Sorting:
| MODEL |
WYCS2-128 |
| Chutes/Channels |
2/128 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<1.2M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
1250*1535*1832mm |
Examples of color sorting:
| Model |
S1 |
S2 |
S3 |
S4 |
S5 |
S6 |
S7 |
S8 |
S10 |
S12 |
| Capacity(t/h) |
0.8~2.0 |
1.2~2.5 |
1.5~3 |
3~6 |
4~7 |
5~8 |
6~10 |
7~11 |
7~15 |
10~18 |
|
Voltage
(V)
|
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
AC220V 50/60Hz |
| Power(KW) |
﹤1.5 |
﹤2 |
﹤2.4 |
﹤2.6 |
﹤3.0 |
﹤3.6 |
﹤4.0 |
﹤4.6 |
﹤5.5 |
﹤7.0 |
|
Air pressure
(Mpa)
|
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
0.6-0.8 |
|
Dimension
(mm)
|
910*
1620*1550
|
1220*
1615*1550
|
1628*
1595*2040
|
1870*
1595*2040
|
2210*
1595*2040
|
2528*
1595*2040
|
2836*
1595*2040
|
3152*
1595*2040
|
3910*
1595*2040
|
4594*
1595*2100
|
| Weight (Kg) |
350 |
500 |
800 |
1000 |
1250 |
1400 |
1600 |
1800 |
2250 |
2700 |
Packaging & Shipping
1.Our company usually packs in standard export wooden case.
2.Transportation means by Air, by Sea or by Express and ect.
3.Shipment cost will depend on the destination, shipment wayand the weight of the goods.
4.You will get full feedback when your machine is on the way.
