128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter

128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter

Bean Color Sorting Machine

128 Channels Kidney Beans Color Sorter

White Kidney Beans Optical Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS2-128

Contact Us

Request A Quote
Product Details
Function:
Color Sorting
Sorting Accuracy(%):
≥99.99
Channels:
128
Color:
Blue,according To Customer's Need
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Application:
Industrial Machine Color Sorter For Plastic Flake,plastic Granules,glass,salt,rubber
Capacity:
1T/H
CCD Sensor:
Toshiba
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood case package Packing size(L*W*H):1.77x1.54x2.10M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

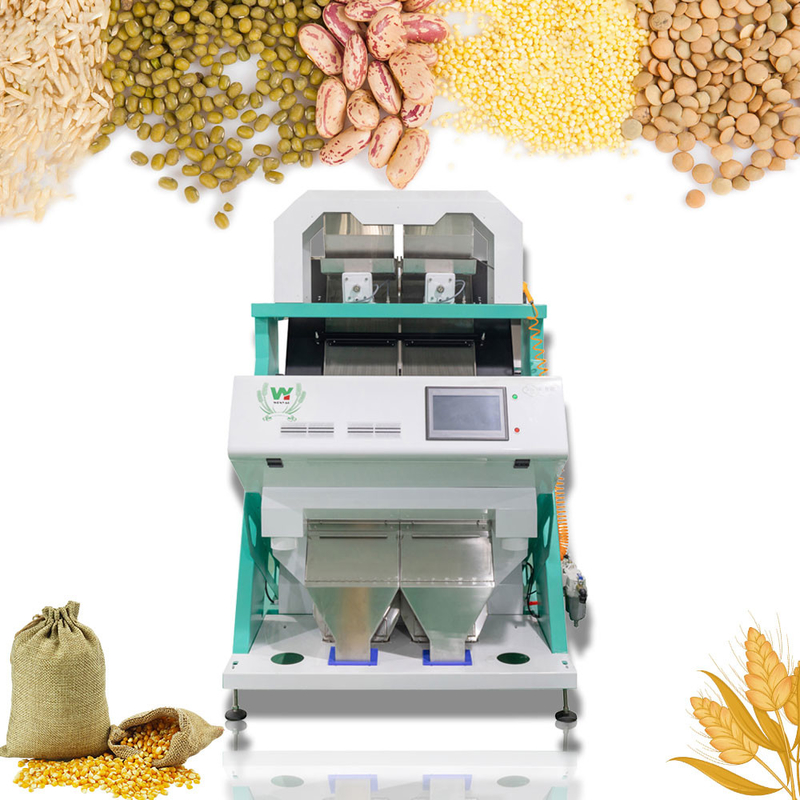

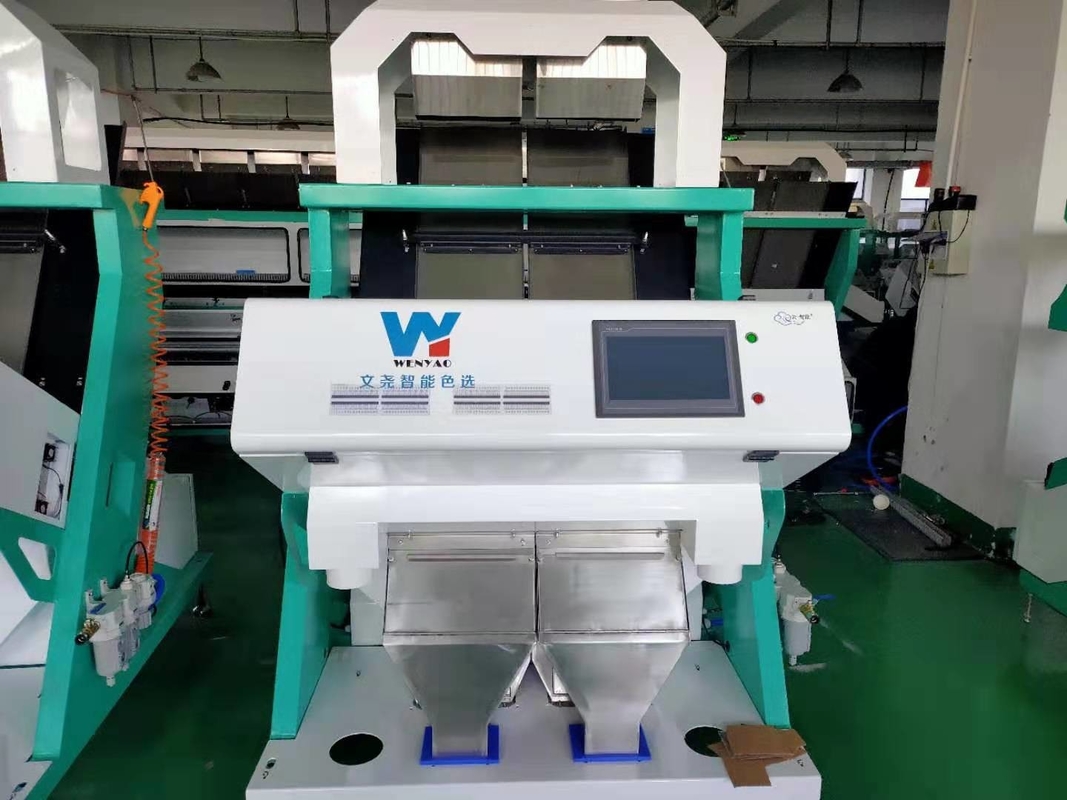

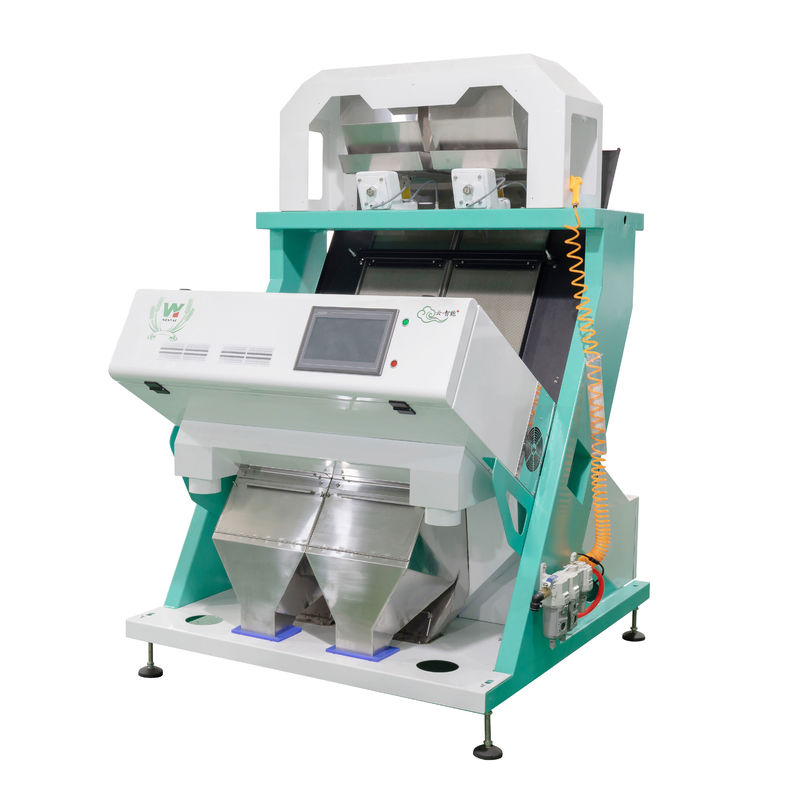

Increased High Capacity Productivity Bean Color Sorting Machine For White Kidney Beans Optical Sorter

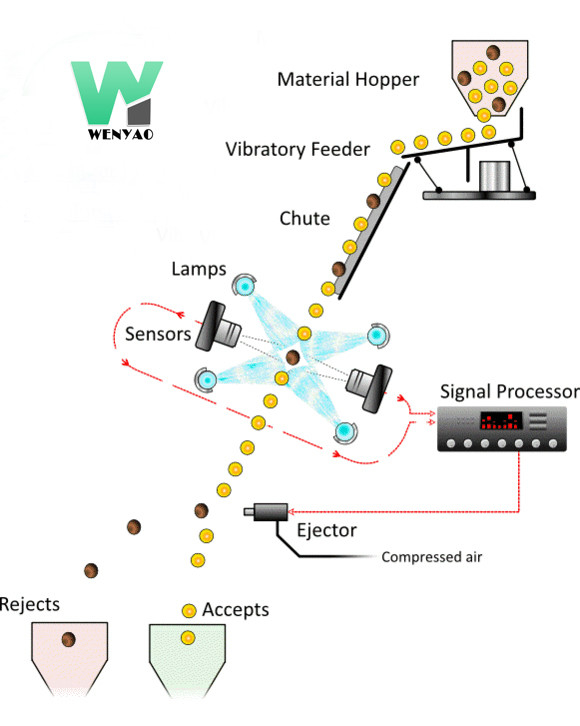

Customized high definition RGB camera assembly can be installed for special material The latest 3 linear color CCD camera and FPGA processing system in addition to the high-speed electromagnetic ejector have been adopted in the machine, and also the multi-color touch screen has been installed therein, so it is a high-tech product combined with technology of optics, electronics and pneumatics. The machine can automatically reject contaminant or colored grains, featuring high sorting accuracy, great efficiency, simply operation, easy maintenance, compact structure and elegant appearance.

128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 0





128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 1

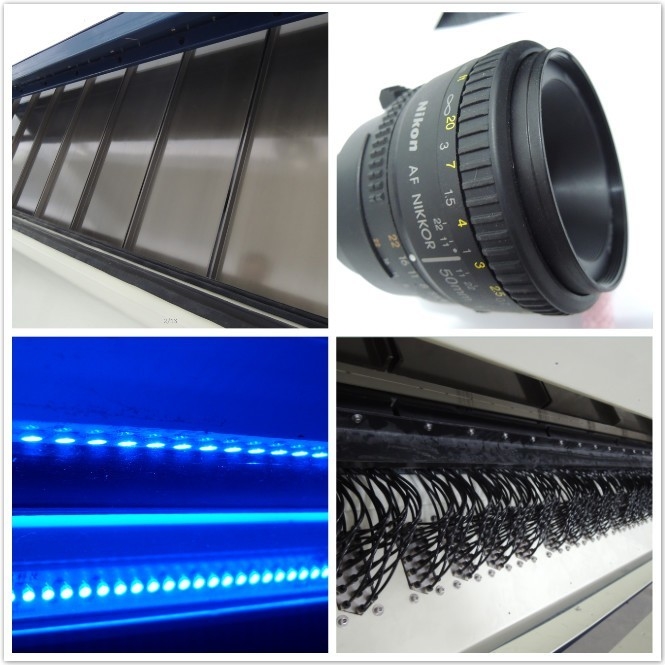

PARTS DETAILS:

128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 2128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 3

Main features

Increased Productivity

  1. Dedicated digital sorting engine to deliver high speed
  2. Wide flat chute to increase throughput

Maximized Sorting Yield

  1. Sorting high speed and precise ejection to minimize good product in reject
  2. Resort capability reclaims good product from reject

High Sorting Accuracy

  1. High speed, high resolution, full color RGB CCD camera to detect tiny defects
  2. Advanced imaging technology to sort defects with minimum contrast
  3. Enclosed feeding system to provide better feeding and chute protection
  4. Infrared sorting (optional) to effectively sort foreign materials

User Friendly Operation

  1. High resolution touch screen with user-friendly graphics
  2. Real time monitor of machine status
  3. Easy software upgrade with USB

Ejection

  1. Specially made ejectors and optimized timing for low carryover, reduced air consumption
  2. Dual air supply for stable air pressure under high defect sorting

Technical Parameters:

MODEL WYCS2-128
Chutes/Channels 2/128
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 1.1kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <1.2M3/Min
Weight 450kg
Diamension(L*W*H) 1250*1535*1832mm



Examples of color sorting:

128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 4

128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 5



1. What can you provide if we buy the machine?
We will test here first(it is helpful if you can send us your material), after testing, we will send you a video to tech but if still have problem after you received it, we will send one engineer but it is paid.

2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required. but the cost need to be covered by Customer.

5. How to calculate Installation personnel cost?
Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation .





Packing & Delivery



128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 6128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 7128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 8128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 9



Certificate :



128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 10128 Channels Bean Color Sorting Machine For White Kidney Beans Optical Sorter 11




1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.


2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.


4. Is oversea service available?
Yes, our engineers could go abroad when required.
