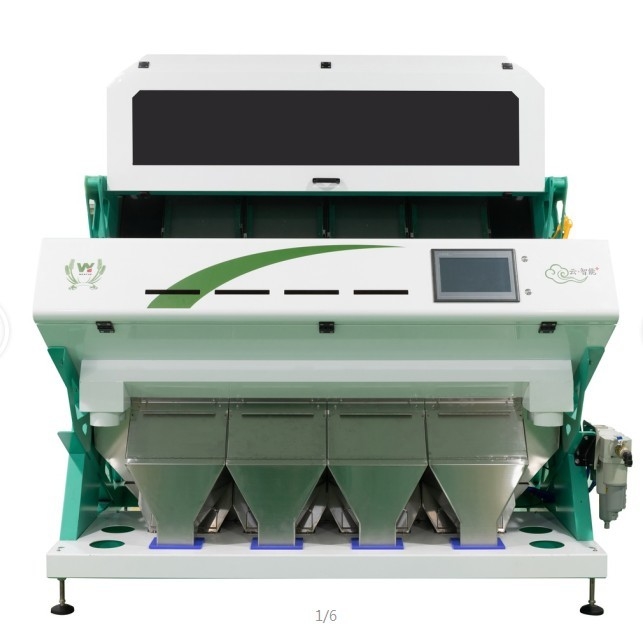

Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine

Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine

Wheat Sorter Machine 2.3KW

CCD Hazelnut Color Sorter

Automatic Corn Bean Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS4-256

Contact Us

Request A Quote
Product Details
Condition:
New Color Sorting
Sorting Accuracy(%):
More Than 99.99%
Warranty:
2 Years Warranty
Application:
CCD Color Sorter
Color:
White ,blue ,green ,yellow Can Be Customized
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available
Camera:
Toshiba Camera
Rejection Rate:
30:1
Air Pressure:
0.6-0.8
Whole Power:
2.3KW
Voltage:
220V 50HZ, 220V 50HZ
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood Box package Packing size(L*W*H):2.15*1.72*2.05M
Delivery Time
15 to 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100PCS Per Month
Product Description

High Sorting Accuracy Corn Bean Wheat Grain Hazelnut Color Sorter Wheat Sorter Machine



The Hazelnuts nuts color sorter machine works on the principle of harnessing the power of sensors and advanced image processing technology to identify and sort nuts based on their individual color variations.

Technical Parameters:

MODEL WYCS4-256
Chutes/Channels 4/256
Throughput(t/h) 2-3t/h
Sorting Aaccuracy ≥99.99%
Power 2.3kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.4M3/Min
Weight 750kg
Diamension(L*W*H) 1855*1540*1852mm


1.High Sorting Accuracy: The nuts color sorter machine adopts advanced image processing technology and high-resolution CCD camera to accurately remove defective nuts, such as moldy, broken, discolored, and other foreign substances.

2.Fast Processing Speed: With a sorting speed of up to 5 tons per hour, the nuts color sorter machine can efficiently sort large quantities of nuts in a short time, improving production efficiency.

3.Easy to Operate: The nuts color sorting machine is easy to set up and operate, with user-friendly interfaces and intuitive controls.

4.Durable Design: The machine is made of high-quality materials, ensuring durability and resistance to wear and tear, with a long service life.

5.Low Energy Consumption: The nuts color sorter machine consumes less energy than traditional sorting methods, making it an environmentally friendly and cost-effective solution.

6.Wide Range of Applications: The nuts color sorter machine can be used to sort a wide range of nuts, including walnuts, almonds, hazelnuts, pistachios,pecan,pinenut,raisins,peanuts,cashew nut and others.

7.Versatility: The machine can sort nuts according to shape, size, and color, making it ideal for various applications.

8.High Capacity: The nuts color sorter machine can handle large volumes of nuts and sort them accurately, reducing processing times and increasing efficiency.





Color sorter Definition :



One of the primary uses of an optical color sorter is to find blemishes in products, and remove unsatisfactory items from the manufacturing process. These flaws may be merely superficial, or they might indicate that a product is defective or unsafe. In a factory that produces a specific size item, for example, a defect or size variation with one of the products could cause significant problems. An optical sorter can detect the defect, and remove the improperly sized part before it is released from the factory.




Color sorter Principle as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)

Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine 0





Examples of color sorting:



Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine 1

Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine 2

Advantage:

Our engineer: Free direct the installation and operation of the equipments and train operators for customer.
Our machine: Safe and reliable, efficient and energy saving, easy operating.
Our delivery: In time with English operating instruction program.
Our after-sale service: Timely, professionally



FAQ:

1. How will we get Quotations for Color Sorter?

Color Sorter separates materials by optoelectronic technology according to color difference.

Please indicate Input Materials name, and Production Throughput. It will be better if you could provide materials photos, and mark accepted colors and rejected colors.



2. How do we do Samples Test?

Welcome customers provide test materials or visit us, then we provide test report together with test video in time. If you could not send it, Please provide photos like these, Original Materials, Accepted Materials and Rejected Materials. Then we use stored materials for test, and advise you with test data.



3. What is your After-sale service?

We provides detailed technical assistance on how to install, After the machinery is installed, our service engineer comes to customer workshop, debugging well on-cite, and training customers staff free-charge.



4. Hong long is Warranty time?

We provide Two years warranty of whole machine.



5. Could you supply Accessories of Color Sorter?

Yes, also supply these spare devices like Air compressor, Air tank, Platform, Air filter, Elevator, UPS, Regulated Power supply. Quotation will be separate.



6. How many models do you have?

We supply Various Models to meet the needs of different production, from household to large scale production, We also accepts orders of customized models.



7. We are interested in your machine, How we have a meeting face by face?

our staff visit oversea clients regularly, Please make an appointment in advance with us. In additional, if you visit our office and workshop, please take your materials sample together and let us test it in our workshop.



Q:How about your after-sales policy?

A:Timely, efficient, customer first

(1)One-year warranty (life-time service)

(2)Online support and professional video guidance



Packing And Delivery :





Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine 3



Corn Bean Wheat Grain Hazelnut Color Sorter High Accuracy Wheat Sorter Machine 4
