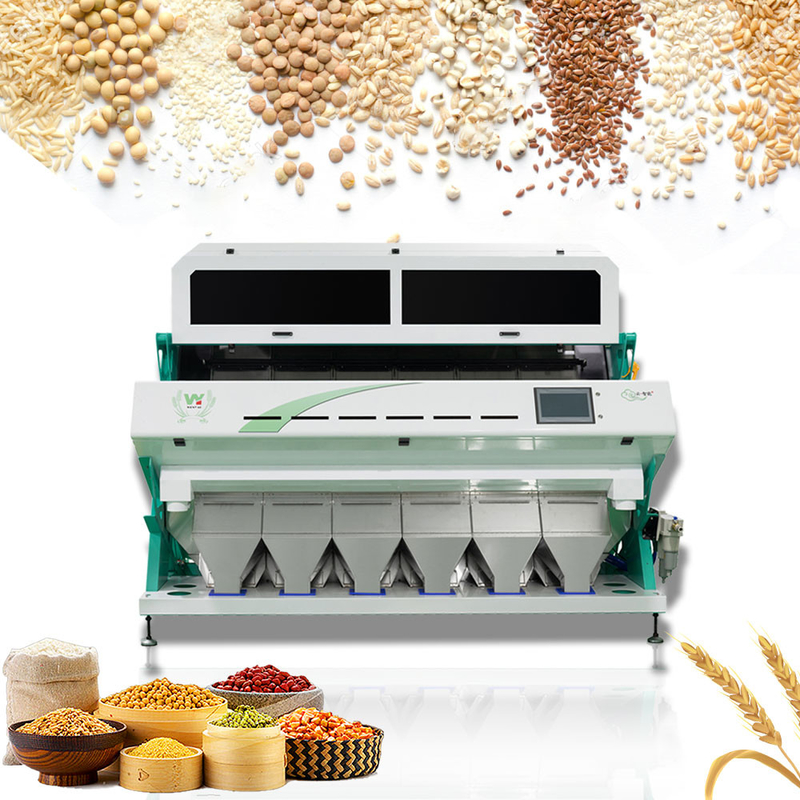

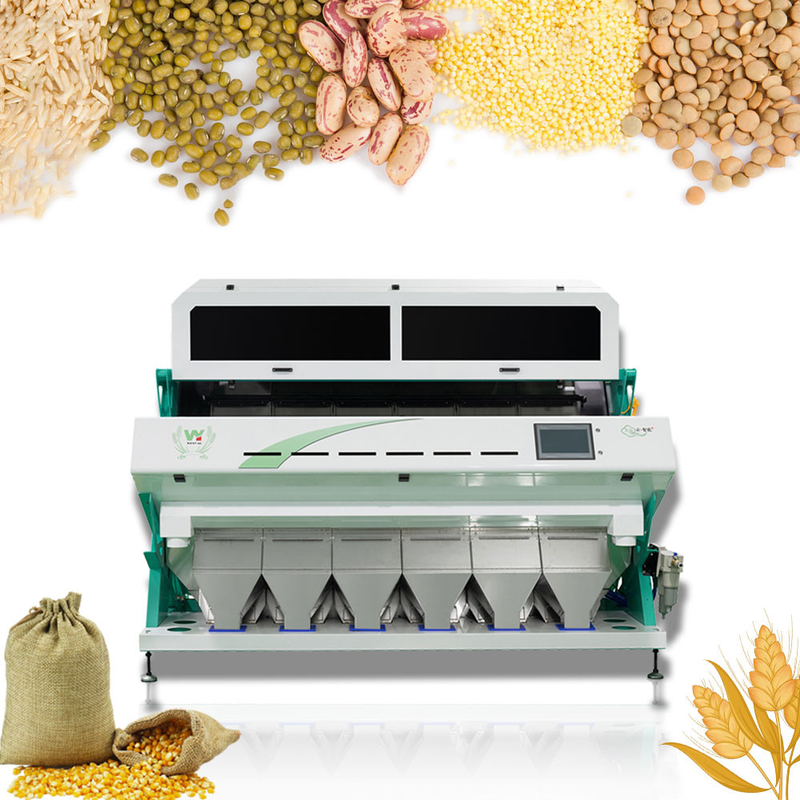

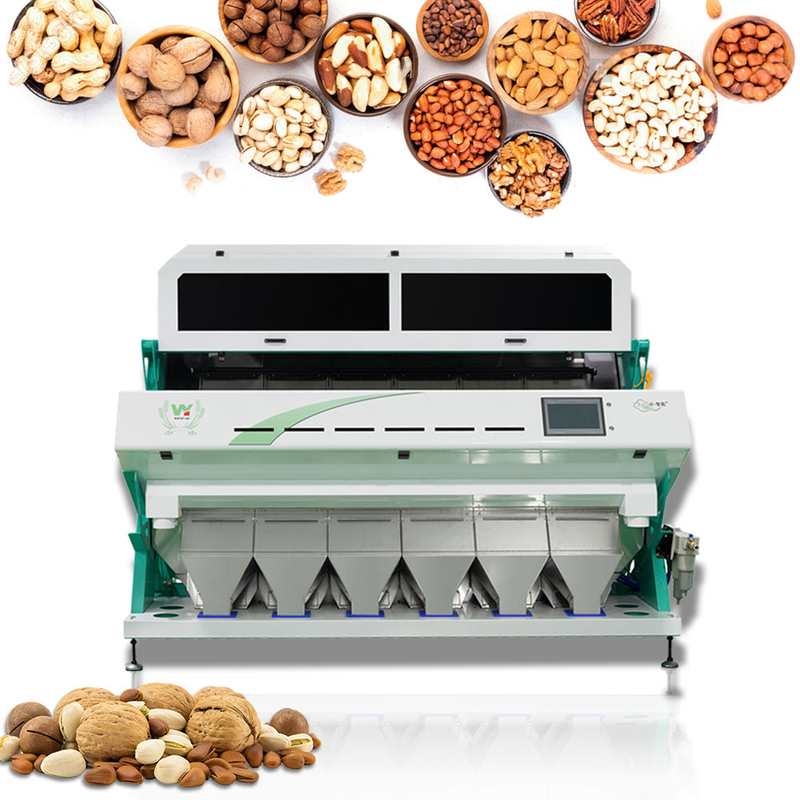

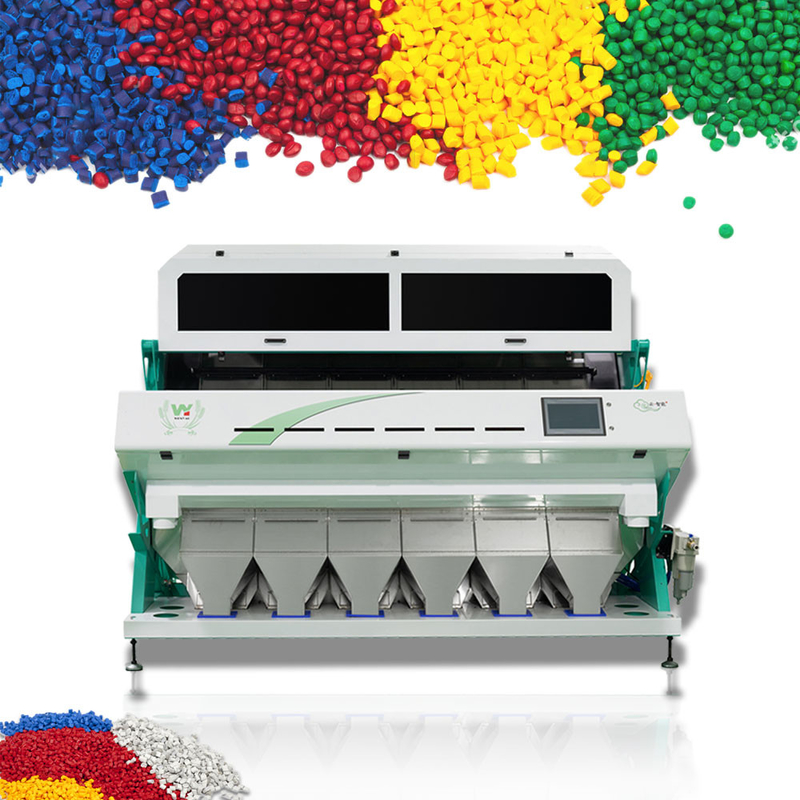

Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service

Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service

Peanut Color Sorter 220V

Peanut Nut Color Sorter

Wifi Remote Control Nut Color Sorter

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,SGS,TUV

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Function:
Color Sorting Machine
Sorting Accuracy(%):
≥99.99
Machine Color:
White Or Customized
Light Source:
LED
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Ejector:
Japan SMC
Application:
Rice,wheat,grain,nuts,seed,plastic,mineral
Voltage:
220V/50~60HZ
Feature:
Easy To Operate ,high Sorting Accuracy
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
PE Bag with Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
5-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS/Month
Product Description

Highly Productive Peanut Nut Color Sorter with Wifi Remote Control Service



1.High Sorting Accuracy: The nuts color sorter machine adopts advanced image processing technology and high-resolution CCD camera to accurately remove defective nuts, such as moldy, broken, discolored, and other foreign substances.

2.Fast Processing Speed: With a sorting speed of up to 5 tons per hour, the nuts color sorter machine can efficiently sort large quantities of nuts in a short time, improving production efficiency.

3.Easy to Operate: The nuts color sorting machine is easy to set up and operate, with user-friendly interfaces and intuitive controls.

4.Durable Design: The machine is made of high-quality materials, ensuring durability and resistance to wear and tear, with a long service life.

5.Low Energy Consumption: The nuts color sorter machine consumes less energy than traditional sorting methods, making it an environmentally friendly and cost-effective solution.

6.Wide Range of Applications: The nuts color sorter machine can be used to sort a wide range of nuts, including walnuts, almonds, hazelnuts, pistachios,pecan,pinenut,raisins,peanuts,cashew nut and others.

7.Versatility: The machine can sort nuts according to shape, size, and color, making it ideal for various applications.

8.High Capacity: The nuts color sorter machine can handle large volumes of nuts and sort them accurately, reducing processing times and increasing efficiency.




High Resolution Intelligent Metal Copper Aluminium Scrap CCD Optical Sensor Color Sorting Machine



Color sorter work principle:

Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 0


Working principle CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:

Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)







Sorting Performance



Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 1

Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 2







Technic Parameter:

Model WYCS6-384
Chute/Channel 6/384
Throughput(t/h) 2.5-8 Ton /H
Sorting Aaccuracy ≥99.99%
Power 3.1kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 110kg
Diamension(L*W*H) 2595*1540*1852mm



From Customer's Site :



Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 3Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 4Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 5Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 6Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 7Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 8Highly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 9



Recommended Applications:

RiceHighly Productive Peanut Nut Color Sorter With Wifi Remote Control Service 10

Wheat

Peanuts

Seeds

Grains

Beans and Pulses

Why choosing Wenyao

1,Advanced image acquisition system
Wenyao color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.

2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.

3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.

4,High quality solenoid valve(ejector)
Wenyao color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, Wenyao optical sorters use the solenoid valve of different sizes.

5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.

6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
