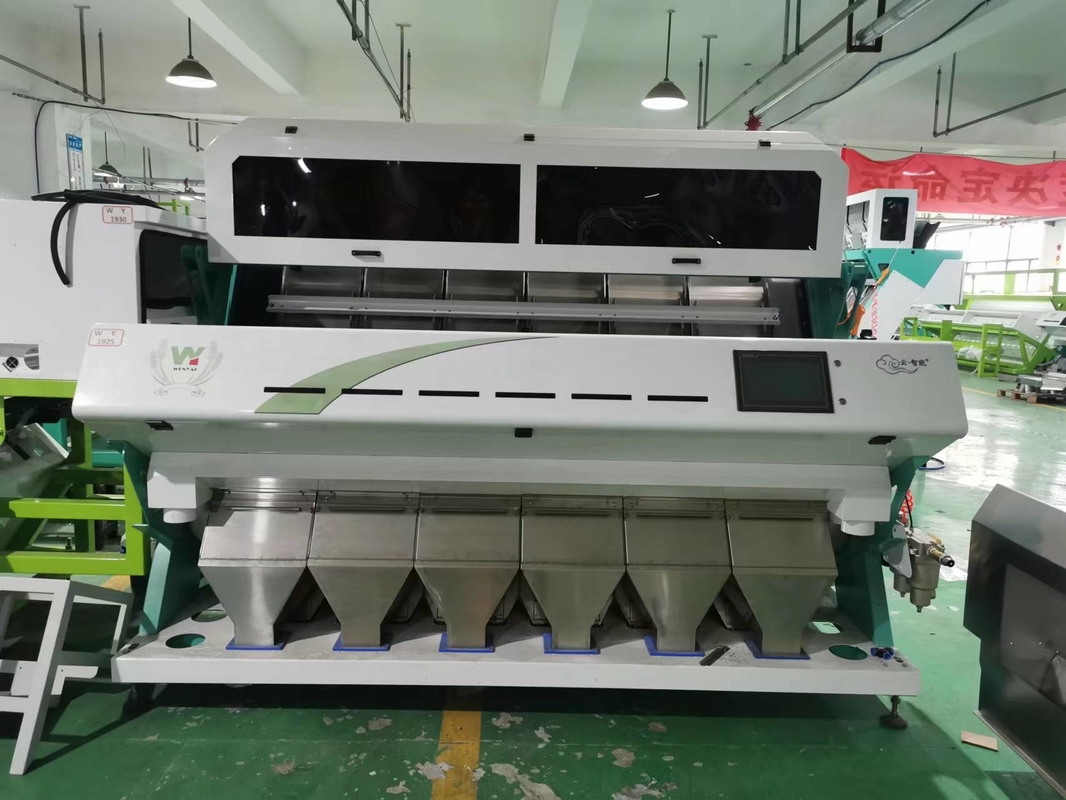

Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat

Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat

Sesame Oat Color Sorter

CCD Camera Grain Color Sorter Machine

Peanut Colour Sorting Machine

Place of Origin:

Hefei,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,SGS,TUV

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Function:
Color Sorting Machine
Sorting Accuracy(%):
≥99.99
Machine Color:
White Or Customized
Light Source:
LED
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Ejector:
Japan SMC
Application:
Red Beens,kidney Beans,coffee Bean,black Beans,mung Beans.
Voltage:
220V/50~60HZ
Feature:
Easy To Operate ,high Sorting Accuracy
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
PE Bag with Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
5-7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS/Month
Product Description

Grain Color Sorter Machine China CCD Camera For Peanut Corn Sesame Oat

Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 0

Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 1Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 2



Details as following
MODEL WYCS6-384
Chutes(channels) 6(384)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥30:1
Output(T/h) ≥4
Voltage 180-240V/50Hz
Power supply(kw) 3.1
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 1500-3200
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 2539*1560*1860
Weight(kgs) 1100
Package Plywood case
Package Size mm

2645*1590*1902





Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 3

Our Advantage :



1.Over 16 years experiences.focus on sorter machine.The biggest sorter machine factory.

2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install .

3.We have service station, cooperate reseller in more than 100 countries.

4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.

5.Quality process assurance: We pass ISO quality management system, each process of production are under strictly standard.
6.System test: Our technical engineers check the product performance, to ensure that the factory products in full compliance with customer requirements
7.Shipping guarantee: we have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.

Parameter :

1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide “color selection + shape selected” function for different materials, a variety of modes set free.

Customer's site :
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 4
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 5
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 6
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 7
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 8
Grain Color Sorter Machine CCD Camera For Peanut Corn Sesame Oat 9



1.High Sorting Accuracy: The nuts color sorter machine adopts advanced image processing technology and high-resolution CCD camera to accurately remove defective nuts, such as moldy, broken, discolored, and other foreign substances.

2.Fast Processing Speed: With a sorting speed of up to 5 tons per hour, the nuts color sorter machine can efficiently sort large quantities of nuts in a short time, improving production efficiency.

3.Easy to Operate: The nuts color sorting machine is easy to set up and operate, with user-friendly interfaces and intuitive controls.

4.Durable Design: The machine is made of high-quality materials, ensuring durability and resistance to wear and tear, with a long service life.

5.Low Energy Consumption: The nuts color sorter machine consumes less energy than traditional sorting methods, making it an environmentally friendly and cost-effective solution.

6.Wide Range of Applications: The nuts color sorter machine can be used to sort a wide range of nuts, including walnuts, almonds, hazelnuts, pistachios,pecan,pinenut,raisins,peanuts,cashew nut and others.

7.Versatility: The machine can sort nuts according to shape, size, and color, making it ideal for various applications.

8.High Capacity: The nuts color sorter machine can handle large volumes of nuts and sort them accurately, reducing processing times and increasing efficiency.
