High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China

Multifunction Rice Color Sorter

Intelligent Rice Color Sorter

AI Control Rice Color Sorter

Place of Origin:

Anhui,China

Brand Name:

WENYAO

Certification:

CE,ISO9001,SGS,TUV

Model Number:

WYCS10-640

Contact Us

Request A Quote
Product Details
Machine Name:
Wenyao Rice Color Sorter
Function:
Sorting Different Color & Size By Opetical Camera
Sorting Accuracy(%):
≥99.99
Key Selling Points:
High Precision & Capacity
Air Pressure:
0.6-0.8
Color:
Blue Or Customized
Warranty:
2 Years
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package with PE bag Packing size(L*W*H):3.95*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China

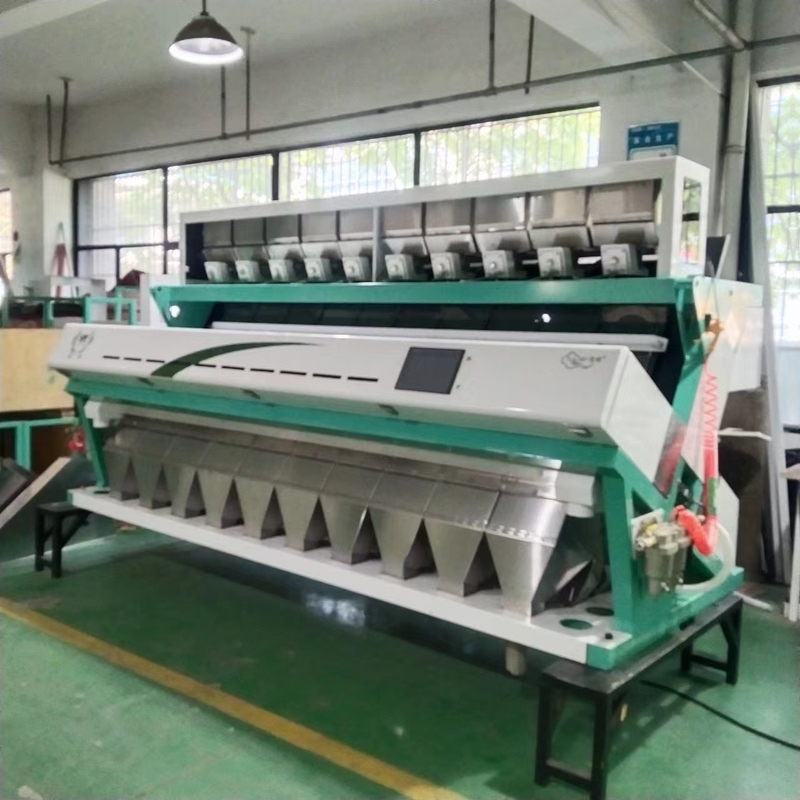

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 0

Working principle:

According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.



Steps:



1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

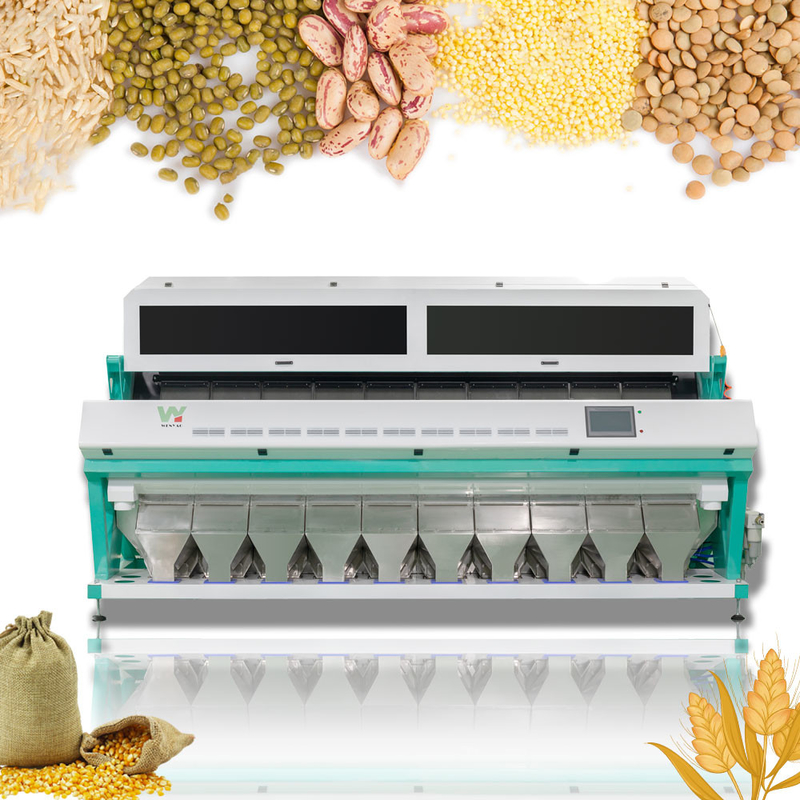

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 1

Features:

1. CCD core intelligent sensor.

2.Original intelligent image processing algorithm.

3.Brainlike thinking intelligent embeddedchip chip.

4.Fast and accurate color sorting solution.

5.High efficiency and high quality nozzil system+accurate and excellent remove rate.

6.Simple Effective-installation&Start-up&Commissioning services;remote teaching and guidance via live video online through internet to worldwide

Technical Parameters:

MODEL WYCS10-640
Chutes/Channels 10/640
Throughput(t/h) 10-15t/h
Sorting Aaccuracy ≥99.99%
Power 6.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <5M3/Min
Weight 1800kg
Diamension(L*W*H) 3750*1540*1852mm



Application:

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp



Sorting Performance:

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 2

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 3

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 4



Note:The machine support mor than 2500 materials ,welcome to inquire us for more details.



Our service:
Before sale:

no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.



After Sale :

We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.



Why choose Wenyao?

1,Advanced image acquisition system
Wenyao color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.



2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.



3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.



4,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.



High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 5

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 6

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 7

High quality Intelligent Multifunction Rice Color Sorter Machine With AI Control from China 8
