High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator

Sesame Color Sorter Separator

High Frequency CCD Color Sorter

Grain Cleaner Color Sorting Machine

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Produnct Name:
Grain Color Sorter Machine
Color:
Blue,green,can Be Customized
Function:
Remove Bad Grains Out
Interface:
12 Inch Humanized Touch Screen
Capacity:
5-10ton/h
Pixel:
5400
Hopper:
Stainless 304 Stell
HS Code:
843710
Warranty:
2 Years
After-sales Service Provided:
7*24h On Line Support
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):0.63x1.05x1.49M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

China High Frequency CCD Color Sorter Grain Cleaner Sorting Machine Economical Sesame Color Sorter Separator



The selected material enters the machine from the top hopper, slides down the channel through the vibration of the vibrator device, accelerates the falling into the observation area of the sorting room, and passes through the sensor and the background plate. Under the action of light source, according to the intensity and color change of light, the system generates output signal to drive the solenoid valve to work and blow out the heterochromatic particles into the waste cavity of the hopper, while the good selected materials continue to fall into the finished cavity of the hopper, so as to achieve the purpose of sorting.



High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 0

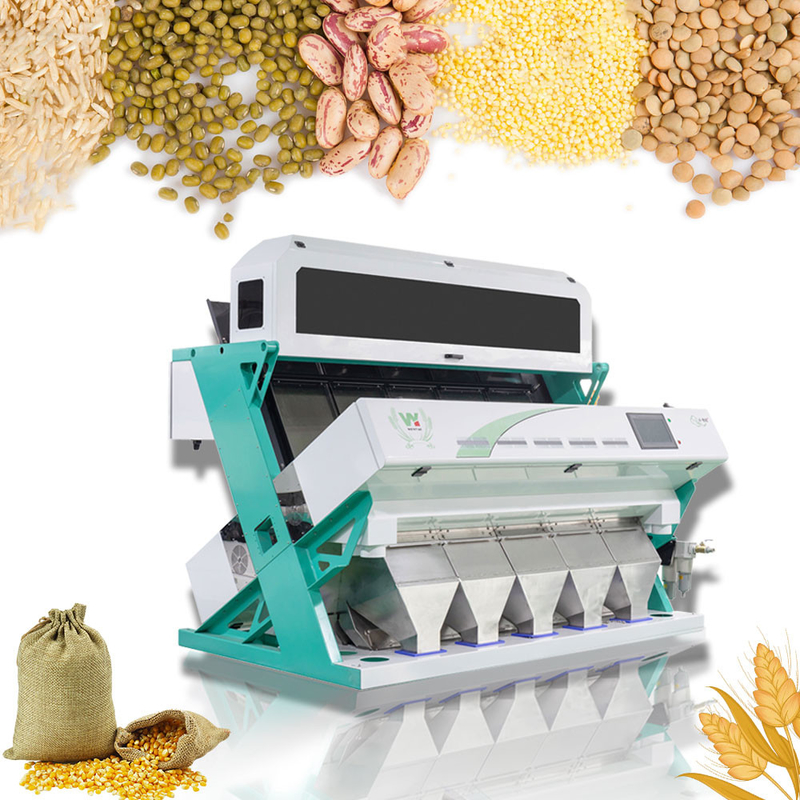

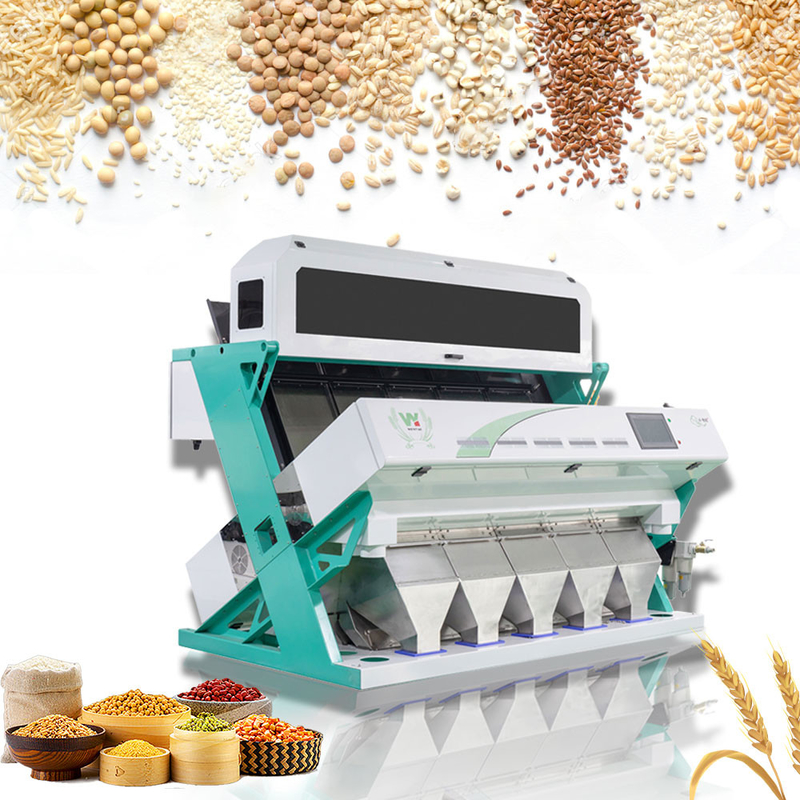

5 chuts color sorter poduct show

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 1

MODEL WYCS5-320
Chutes/Channels 5/320
Throughput(t/h) 5-10
Sorting Aaccuracy ≥99.99%
Power 2.9kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption 1.3-2.8M3/Min
Weight 900kg
Diamension(L*W*H) 2244*1540*1852mm



Grain Colour Sorter Components:

  • Wenyao Big Database
  • 5400Pixel CCD Image Acquisition System
  • Image Processing System
  • Intelligent Dust Cleaning System
  • Self Design High Frequency Ejectors
  • Low Temperature LED Light Source
  • Intelligent LED Control System
  • Remote Control System
  • Automatic Computing and Super Brain Intelligent Identification



Product Application:

Agriculture products color sorter

Used for:Rice,Wheat,Corn,Soybean,Peanut,Nut,Grain,Cereal,Seeds,Bean,Sunflower seeds,Walnut,Almond,Quinoa,Salt,Medlar,Pistachio,Kidney bean,Red bean,Black bean,Green bean,Coffee bean,Fava bean,Mung bean,Millet,Sorghum,Peeled garlic,Dehydrated garlic,Lotus seed,Sesame,Pine nut kernel,Watermelon seeds,Cotton seeds,Melon seeds,Buckwheat,Oats,Barley,Cardamon,Pea,Lentil,Cashew nut,Raisin,Jujube,Evaporate vegetables,Sugar,Onion,Potato,Blueberry,Tomato,Mango,Chickpea,Olives,Chili,others.

Industrial product color sorter

Used for:Waste Plastics,Plastic pellet,Plastic pieces,Plastic granule,Plastic bottle cap flake,PET bottle scrap,ABS plastic flake,PP plastic scrap,Recycled plastic,Quartz stone,Quartz sand,Potassium feldspar,Barite,Calcite,Limestone,Pearl,Marble and others.

River&Sea food color sorter

Used for: Dried shrimp, fish, small fish clove and so on.

Customized color sorter

Can be customized according to customer specific color selection program.



Color sorter sorting effect for grain

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 2

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 3

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 4



Packing delivery

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 5

Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Detail:
Within 15 - 20 days after received deposit

What you can choose from wenyao?

---Advanced equipment, good quality

---Professional skills, all-related services

---High quality and efficiency technology

---Complete production line, quick delivery

---The biggest grain and oil machine manufacturer and exporter in China

---Exporting to more than 100 countries and regions

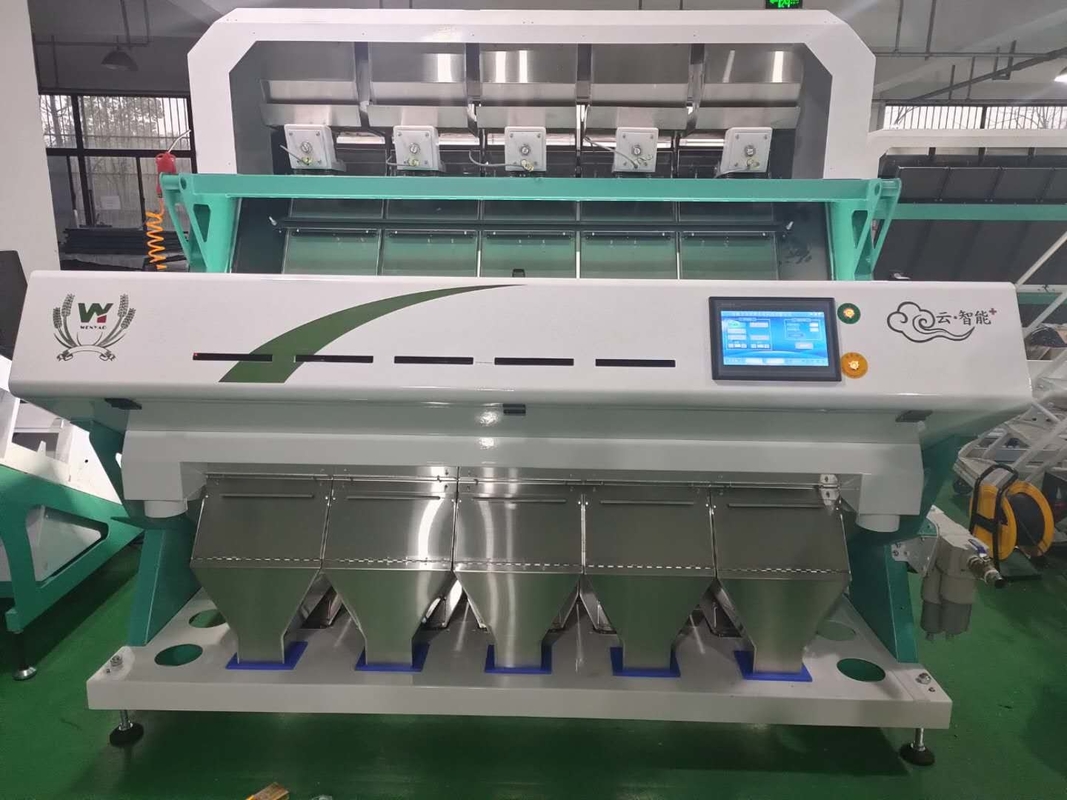

Our factory and customer

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 6

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 7

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 8

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 9

High Frequency CCD Grain Cleaner Color Sorter Economical Sesame Color Sorter Separator 10
