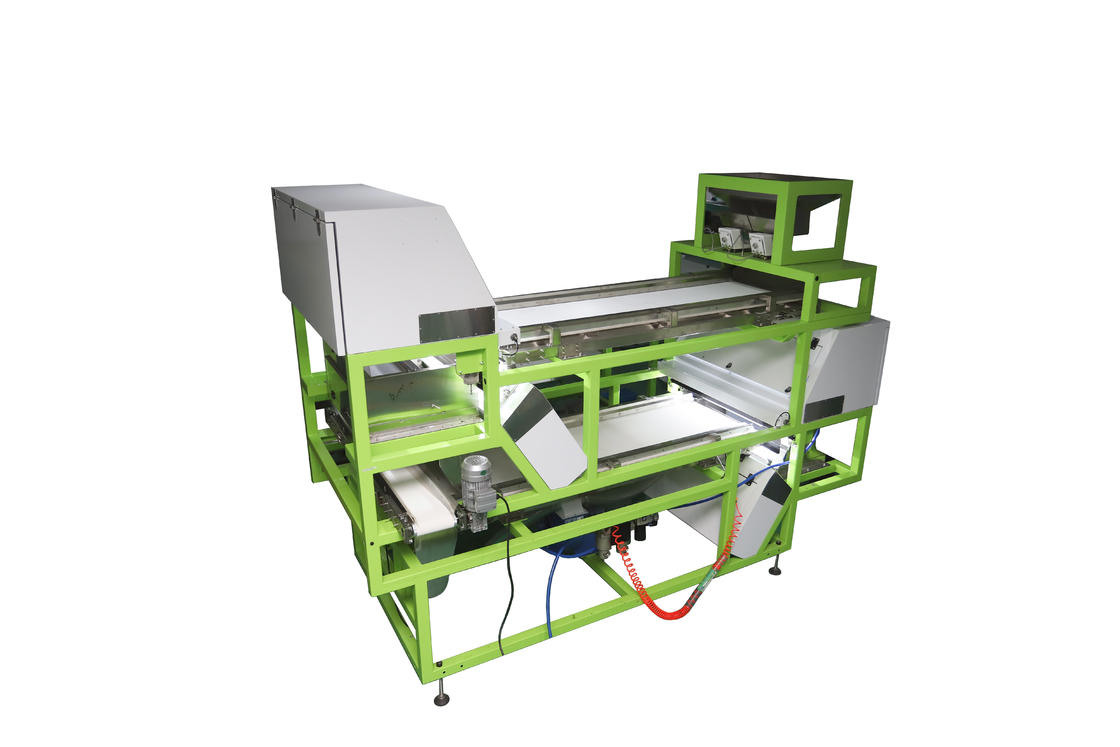

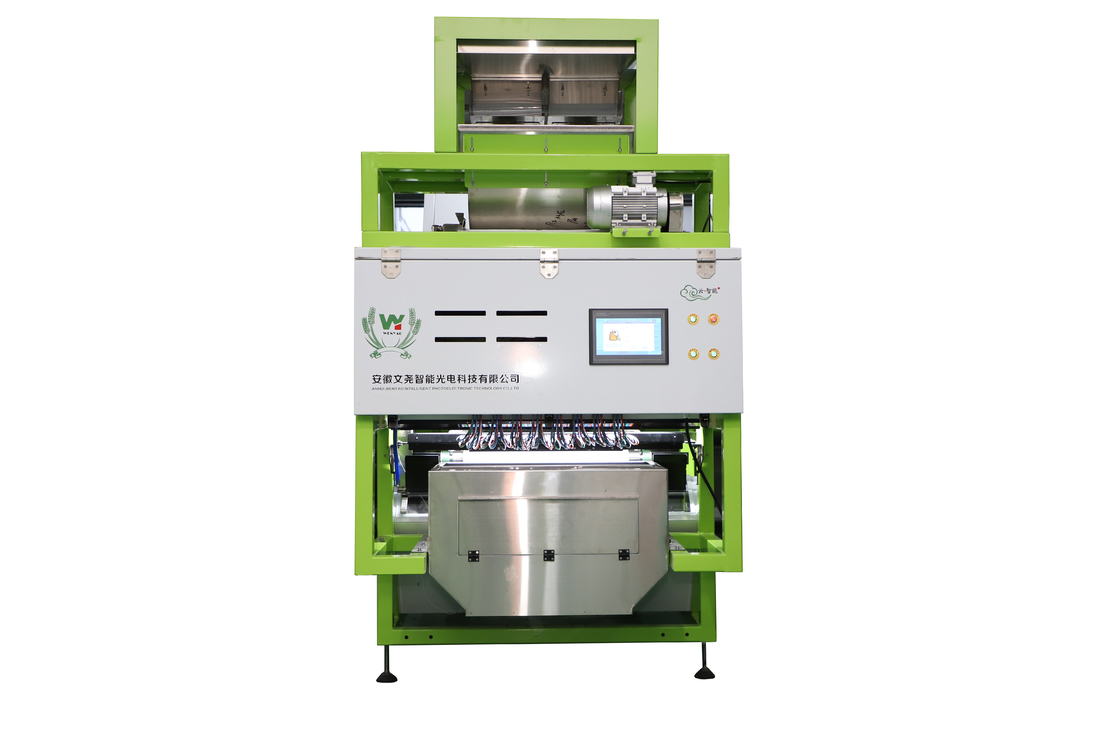

High Sorting Accuracy RGB Color Sorter Machine For PP PET PVC ABS Recycling Industries

High Sorting Accuracy RGB Color Sorter Machine For PP PET PVC ABS Recycling Industries

• Features of Color Sorter Machine:

• Latest full-color imaging and analysis technology,high-speed processing,accurate identification.

• High level AI self-learning function,one-key automation,user friendly interface,easy operation.

• Multi-function,multi-purpose,widely used for rice,grain ,beans,plastic,chinese herbals etc.

• Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.

• High and specification ensures high stability with high sorting accuracy small carry over and low energy.

• Clound computing,massive dated analysis,multi-camera identification,high accuracy.

• Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.

•

  Working Principles





  The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.



  Color Sorter Machine Feeding system



  It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.



  Optoelectronic system



  The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.



  Sorting system



  The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.



  Cleaning system



  The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.



  Operating System



  The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.

Examples of color sorting:

From Customer's Site:

Questions :

1. How about engineers service oversea?
    Engineers available to service machinery overseas.

2. How to use the machine?
    We will supply customer the installation catalog or video online.
    We will ask our engineer to teach you, how to use when he go to your country to debug the machine.


3. How about the sample machines for testing?
   Sample sending for testing is welcomed.
   Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.

4. How about the guarantee period?
   One year.

5. Will you accept L/C as payment?
   L/C ,T/T is OK .
   Alibaba Trade Assurance is your best choice.

6.Do you have any other spare parts for the customer?
   Yes,we will supply you some spare parts .

7.Which machine will work together with our color sorter which you can supply?
   Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
