Name: Juniper Color Sorter with 5400 Toshiba Camera 3-5Ton/hour Sorting Weight and Metal Ejector from WENYAO
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYCS3-192
Price: 28,040.00 USD
Availability: InStock

Home > Products > Multifunction Color Sorter >

Juniper Color Sorter with 5400 Toshiba Camera 3-5Ton/hour Sorting Weight and Metal Ejector from WENYAO

China Color Sorting Machine

WENYAO Color Sorting Machine

Place of Origin:

China Mainland

Brand Name:

WENYAO

Certification:

CE ISO9001

Model Number:

WYCS3-192

Request A Quote

Product Details

Sorting Weight:

3-5Ton/hour

Whole Power:

1.6kw

Interface:

12 Inch Display Screen

Light Source:

LED

Function:

Ccd Color Sorter

Chip:

America FPGA Process Chip

Ejector:

Metal

Sorting Power Supply:

220V/50Hz

Camera:

5400 Toshiba

Sorting Modes:

Shape Sorting, Color Sorting, Defect Sorting

Rejection Rate:

30:1

Transport Package:

Wooden Packing

Sorting Type:

Optical Sorting

Sorting Materials:

Rice, Wheat, Beans, Nuts, Seeds, Juniper,etc.

Machine Name:

Multi-function Color Sorter

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

Negotiable

Packaging Details

plywood cases

Delivery Time

7-10working days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,

Supply Ability

100pcs per month

8/512pcs Chutes Toshiba Japan CCD 2-3t/h Throughput Multifunction Color Sorter Machine

Get Best Price

Video

Juniper Color Sorter with 5400 Toshiba Camera 3-5Ton/hour Sorting Weight and Metal Ejector from WENYAO

Get Best Price

Video

Nutmeg Peanut Sorting Machine for Removing Aflatoxin Particles with UV Light Technology

Get Best Price

Video

High Capacity 10 Channels SS316 Anti-Corrosive Salt Quartz Mineral Color Sorter Machine with 99.99% Sorting Accuracy

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

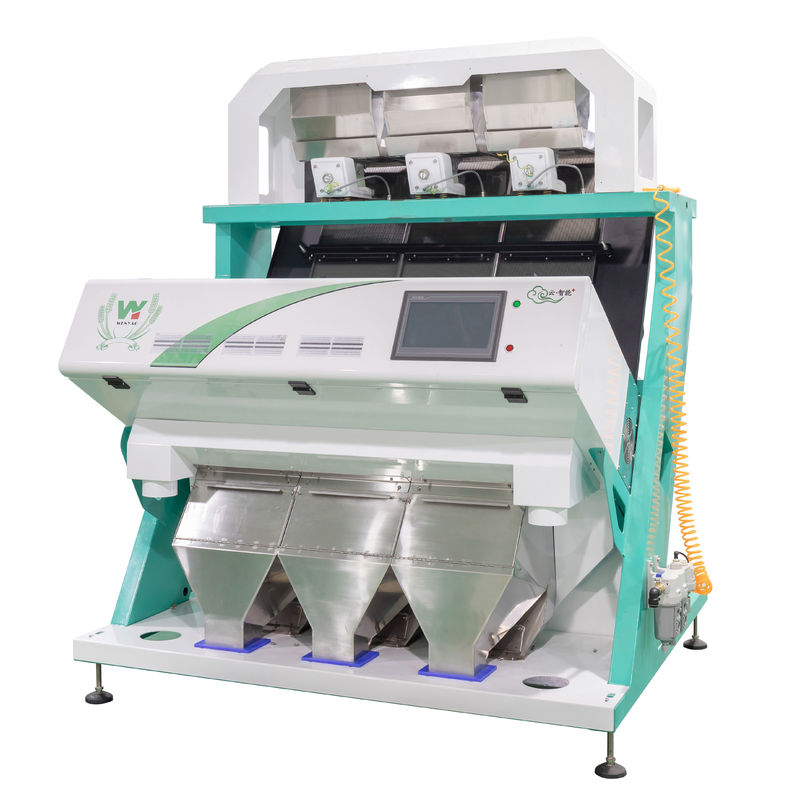

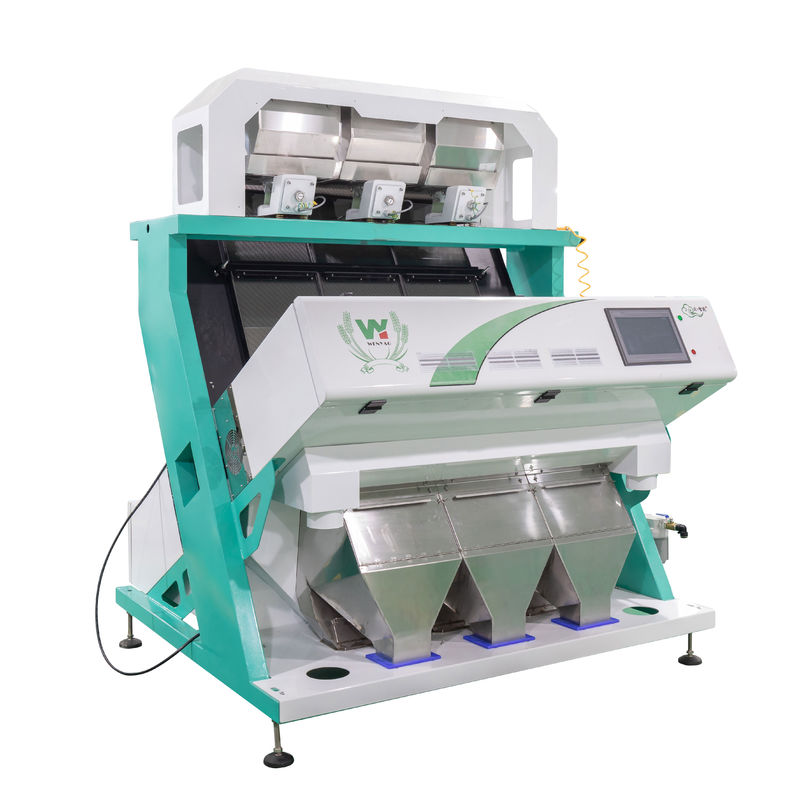

Juniper Color Sorting Machine

High-performance Juniper Color Sorter from WENYAO Color Sorter Factory, designed for efficient and accurate color-based sorting of granular materials.

Technical Specifications

Model	WYCS3-192
Chutes/Channels	3/192
Throughput	3-5T/h
Sorting Accuracy	≥99.99%
Power	1.6kw
Power Voltage	180-240V/50Hz
Air Source Pressure	0.6-0.8Mpa
Air Consumption	<3M³/Min
Weight	600kg
Dimensions (L×W×H)	1620×1535×1830mm

Premium Features

Most advanced RGB 5400 pixel linear industry CCD camera
America FPGA process chip
Japan Toshiba CCD sensor
High-performance ejectors: Japan SMC, Italy Matrix, or Metal ejector options
Quality filters: Japan SMC, Japan CKD, or Korea YSC
Taiwan Meanwell power supply for extended lifetime
All LED light source for energy efficiency and longevity
12-inch Flexem humanized touch screen interface

What is a Color Sorter?

Color sorters (also known as color sorting machines or optical sorting machines) utilize high-resolution CCD optical sensors to detect color differences in granular materials. These advanced systems drive solenoid valves to sort materials based on color variations. Widely used across agricultural products, food processing, and mineral industries, color sorters efficiently process materials including rice, wheat, corn, peanuts, various beans, seeds, tea, herbs, dried vegetables, recycled plastics, salt, and ores.

Working Principle

Raw materials enter the machine through the top hopper, where they are vibrated by the feeder and slide along the material chute into the observation zone. In the sorting chamber, materials pass through sensors against a background plate. Under controlled lighting, CCD sensors receive composite light from the materials. Based on light intensity and color variations, the system generates output signals that activate solenoid valves (ejectors) to separate discolored grains into the reject chamber, while acceptable materials continue into the finished product chamber.

Our Advantages

Expert Engineering Support: Free installation guidance, equipment operation training, and operator instruction
Reliable Machinery: Safe, efficient, energy-saving, and user-friendly operation
Timely Delivery: On-time shipments with comprehensive English operating instructions
Professional After-Sales: Timely, expert technical support and service

Frequently Asked Questions

How to use the machine?

We provide detailed installation instructions and videos, and our engineers will train your operators for proper operation.

How long is the guarantee period?

Two-year warranty with lifelong software upgrade services for all customers.

Can you supply air compressor, air tank and air filters?

Yes, our standard offering includes the color sorter machine complete with air compressor, air tank, and filters.

Is overseas service available?

Yes, our engineers are available for international service when required.

How is installation personnel cost calculated?

When installation guidance is requested, we dispatch one engineer. The customer covers visa processing, international airfare, accommodation, local transportation, and security expenses during the engineer's stay.
