Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS6-384
Contact Us

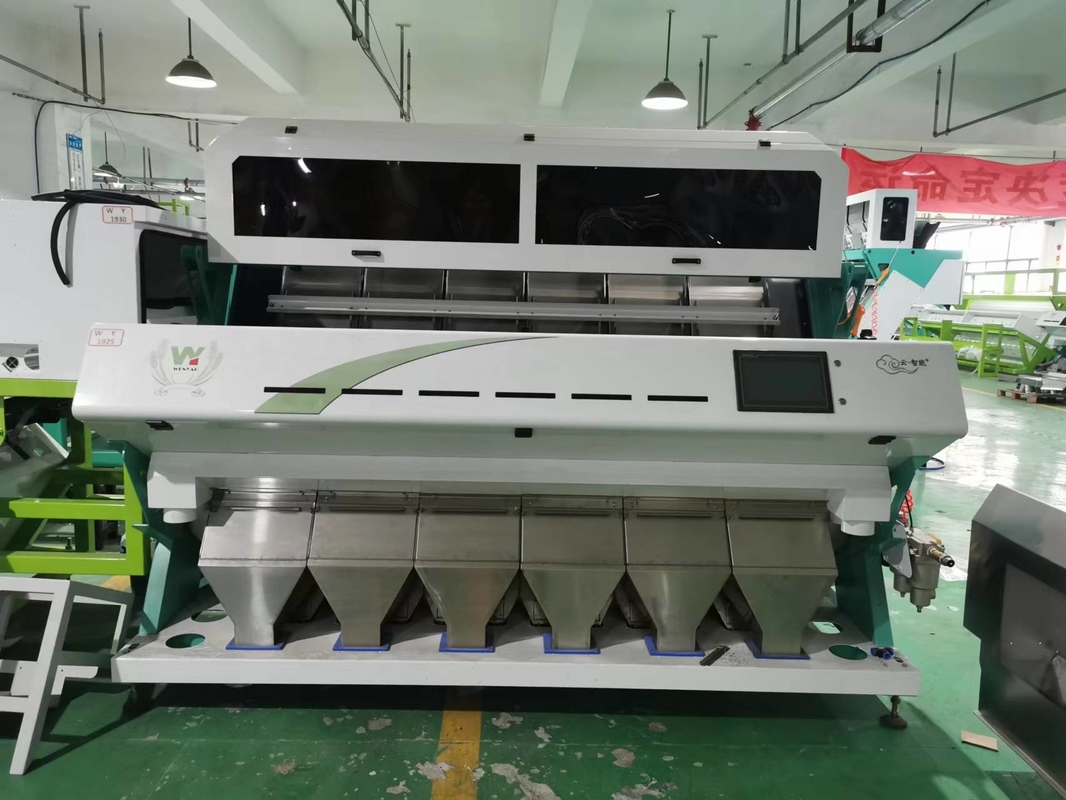

Environmentally Friendly Grain Color Sorter for Dried Chili Dried seafood
Color Sorter Technical characteristic :
| Details as following | |
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥30:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2539*1560*1860 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
Advantage :
1.Over 15 years experiences.focus on sorter machine.The biggest sorter machine
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer product use and teaching to help customers use.
3.We have service station, cooperate reseller in more than 40 countries.
4.Quality assurance of raw materials: We purchase raw materials are certified qualified products.
1.Color high-resolution CCD image acquisition system
Our color sorting uses color CCD image acquisition system, which can acquire full color information of red, green and blue material. This enables our sorter to better suit customers’ requirements.
With a max resolution of 0.15mm, it can accurately detect the small defects and spots of beans .The high precision lens helps ensure the image more clear and accurate
2.Specialized image processing algorithm
Considering the complexity of beans , we use complicated regional classification method and realize material analysis and classification within the color gamut, so the accuracy of material identification is assured.
3.Unique feeding system
Due to its adjustable module design, the feeding system can accommodate various kinds of beans for a wider application range of color sorting
Special chute design ensures the uniformity of material flow , the best image accquistion and defective material rejection effects can be achieved.
4.Optional quality ejector
For materials of small grains , the imported high frequency ejector is more effective .
For materials of larger grain ,the imported large air flow high frequency ejector is more effective .
5.High rejection rate
High rejection rate is accomplished as a result of our high resolution CCD, unique feeding system , specialized algorithm and ejector.
The Color sorter work principle:
1, the introduction of LED Air Cooling
Solve the LED light source due to prolonged use of high temperature, short life and other issues, ensuring constant LED light source durable.
2, the unique suction ventilation system
You can remove dust and other raw materials in the ethereal substance, to ensure that the lens identification, higher color sorting accuracy.
3, the image acquisition system
Full-color high-definition CCD camera image acquisition system, the material (RGB) red, green, and blue color information to obtain a comprehensive, small depth to identify and elaborate common color sorter can not choose other impurities.
4, the operating system
Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5, the image processing system
International high-end full-color line scan technology, DSP + FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide “color selection + shape selected” function for different materials, a variety of modes set free.
Examples of color sorting:
From Customer's Site :
The photoelectronic color sorter is a kind of non-destructive sorting equipment for the quality,inspection and classification of bulk materials.It has a wide range of applications in the grain,food,pigment chemical industry and other industries.As for beans,rice,ore,pepper,garlic,melon seeds, raisins, seeds,Chinese medicine,sea rice,shrimp skin,broken glass,metal pellets,the same color rod and other impurities and special materials.The sorting effect is very significant.
1. The selected materials enter the machine from the hopper at the top.With the vibration of the vibrator device,the selected materials are conveyed along the channels,enter the observation area of the sorting room, and passe between the sensor and the background plate.
2. Under the affect of the light,the system generates an output signal to drive the solenoid valve to blow out the different-colored particles to the waste hopper with the intensity of the light and the color change.And the good materials continue to fall into the finished hopper .
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney
bean,Chili,Red bean, others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
6.Will you test machine before delivery ?
Yes , we will test carefully before delivey ,and save parameters in the machine
Maintenance :
1Monthly: check the filter element and the cleanliness of the ash removing brush.
2Quarterly: check the fluorescent lamp.
3Half a year; check or replace lubrication oil for the compressor at least one time.
Warning: in order to prevent static electricity and ensure the personal safety, the host machine and its attached equipment shall be in good ground connection. Electric cabinet opened by professional only. It is forbidden to open the rear case cover of the cabinet in operation as it is a fully enclosed automatic cycle air cooling system.
