Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

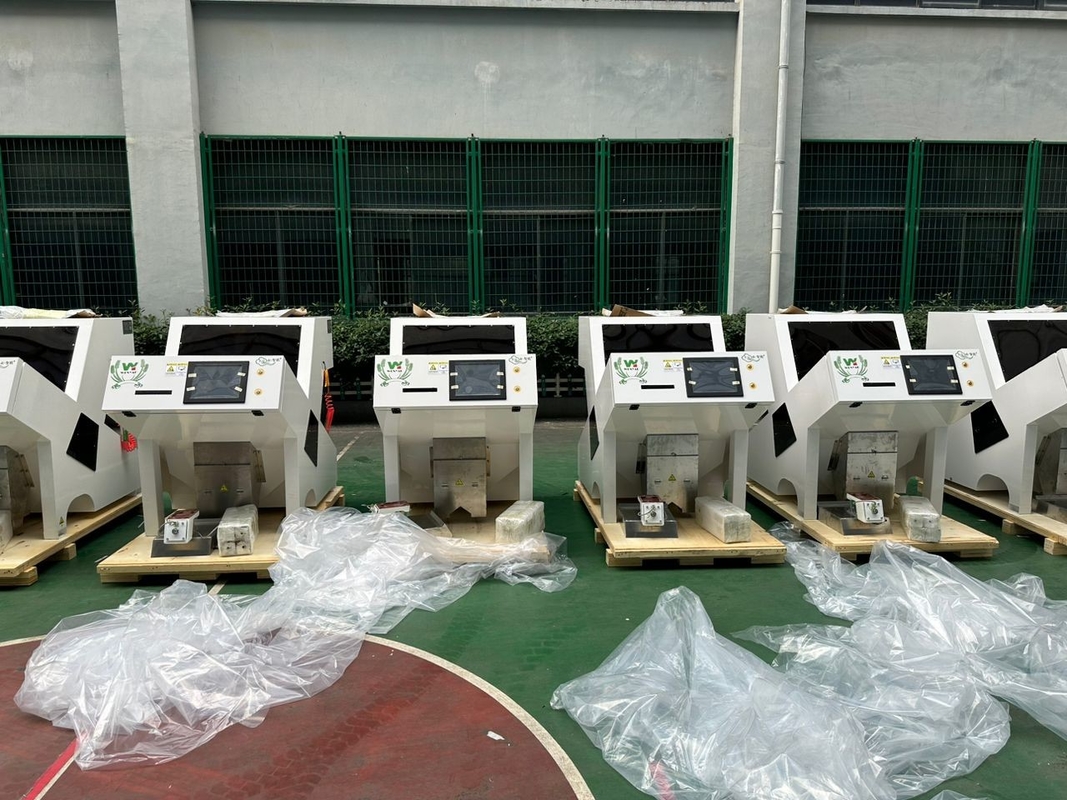

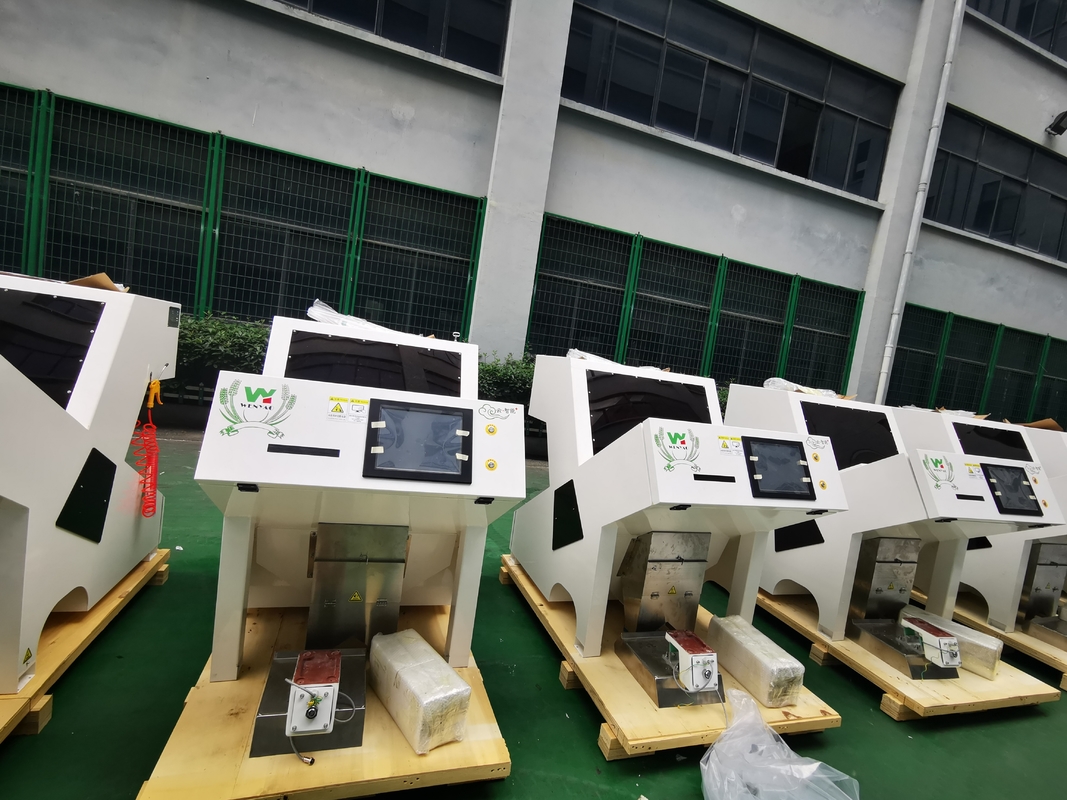

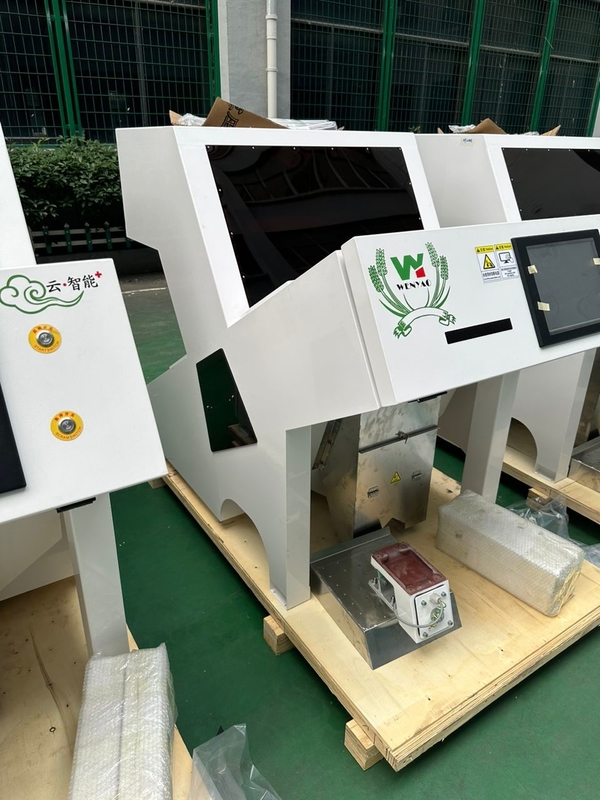

INTELLIGENT BUCKWHEAT CCD COLOR SORTER OPTICAL SORTING MACHINE
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Newly Upgraded Buckwheat Color Sorter
1. Shape sorting + color sorting to ensure the quality of rice
·White, red, black quinoa, different colors, moldy, stone, impurities are optional
2.High precision, large output. Net sorting rate≥99.9%
3. long life and durable
·304 stainless steel, OSRAM LED lights, imported Al chips and other high-end configurations make the machine more durable
Smart system
Multi-megapixel high-resolution color CCD.Full color image sensor·Identify0.01mm2 spots
Magnetic levitation rejection
·Italian high-precision magnetic suspension valve Key rejection device of color sorter Intelligent production, long service life
High Precision Corn Sorting Color Sorter Machine
Wenyao Optical Sorting technology with High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*With Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
Colour Sorter Machine With Expert Sorting Solution Realizes One Key Debugging
* Remote Debugging, Diagnosing And Maintenance.
Examples of color sorting:
Intelligent Holographic Flash Camera Compatible with CMOS or CCD image sensors
Flexible switch between visible lens or infrared lens35K high-speed imaging +350 million pixel ultra-clear resolution
LED light source
Flexible Light Source Configuration: For different raw
material, the Color LED illumination system can choose use different spectrum for the illumination to increase the contrast and increase the precision of information
acquisition. The LED illumination system has the cooling system, so the system has the long lifetime, low energy consumption and high performance.
Dedicated Image Processing Algorithm According to the characteristics of material, use the shape and color combination algorithm; For materials with
complex colors, the machine sorts materials more directly and accurately by using HSV-changed color space sorting method.
High-Quality Solenoid Valve
Use High-quality,high-frequency,long service life ejecter, super low air consumption guaranteed the biggest capacity, excellent rejection output. For the different sizes and
characteristics of material particle, use the solenoid valve of different sizes.
Simple Operation
Simple optical system design, precise automatic correction system, combined with the well-designed human-
machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
Micron recognition system
Accurately identify subtle color differences and shape differences
Imported ultra-clear low-distortion camera +5400CCD sensor, With long-life, high-focus LED light source.
Brand new upgrade of Intel
Fifth-generation FPGA
Faster speed and lower power consumption.
UHF Ultra high speed ejector
The ultra-short gas path structure design greatly reduces the response time of the spray valve.
The processing speed is faster, the rejection rate is higher, and the color sorting effect is better.
Adaptive smart cleaning system
According to the condition of the sorted materials,
The cleaning mode is automatically adjusted without manual intervention.
Surround recognition technology
Unique 360° surround recognition technology realizes sorting without dead ends.
One-piece original display
The operation is more sensitive and the operation is smoother,
Easy and quick adjustment of sorting parameters
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
