Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS2-128
Contact Us

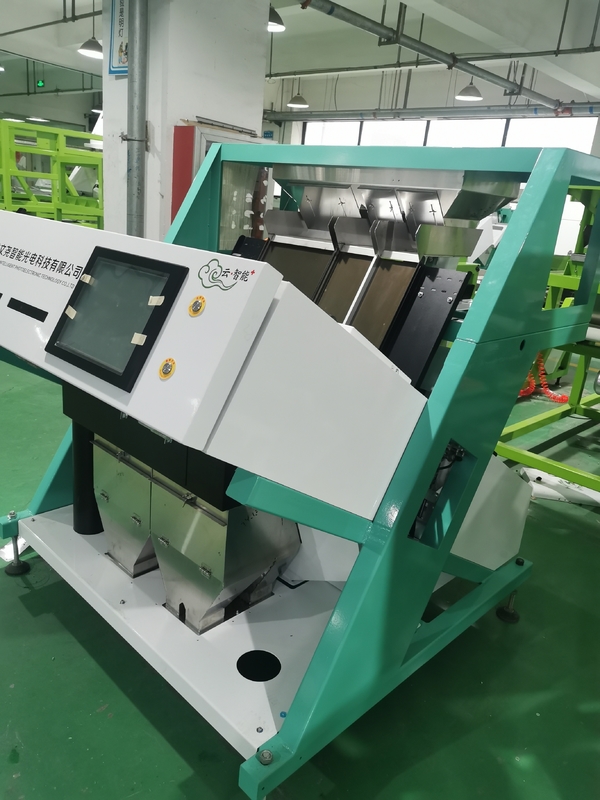

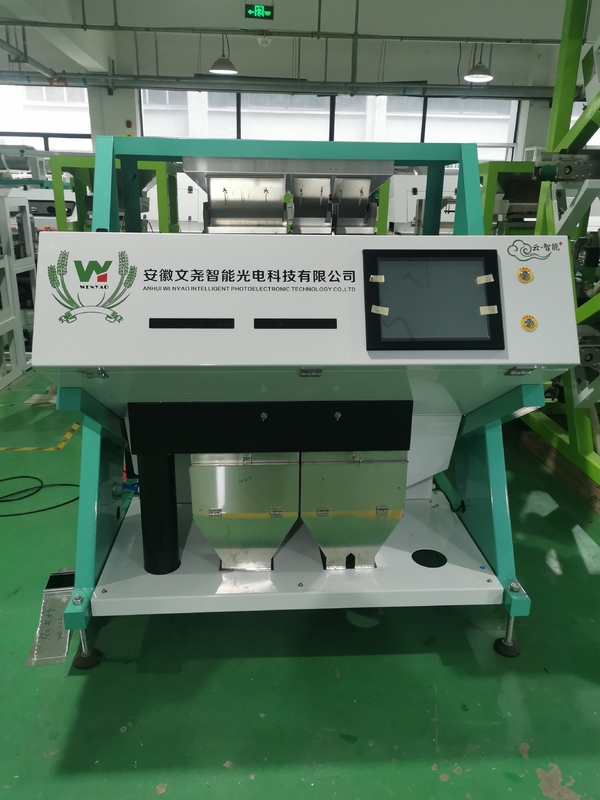

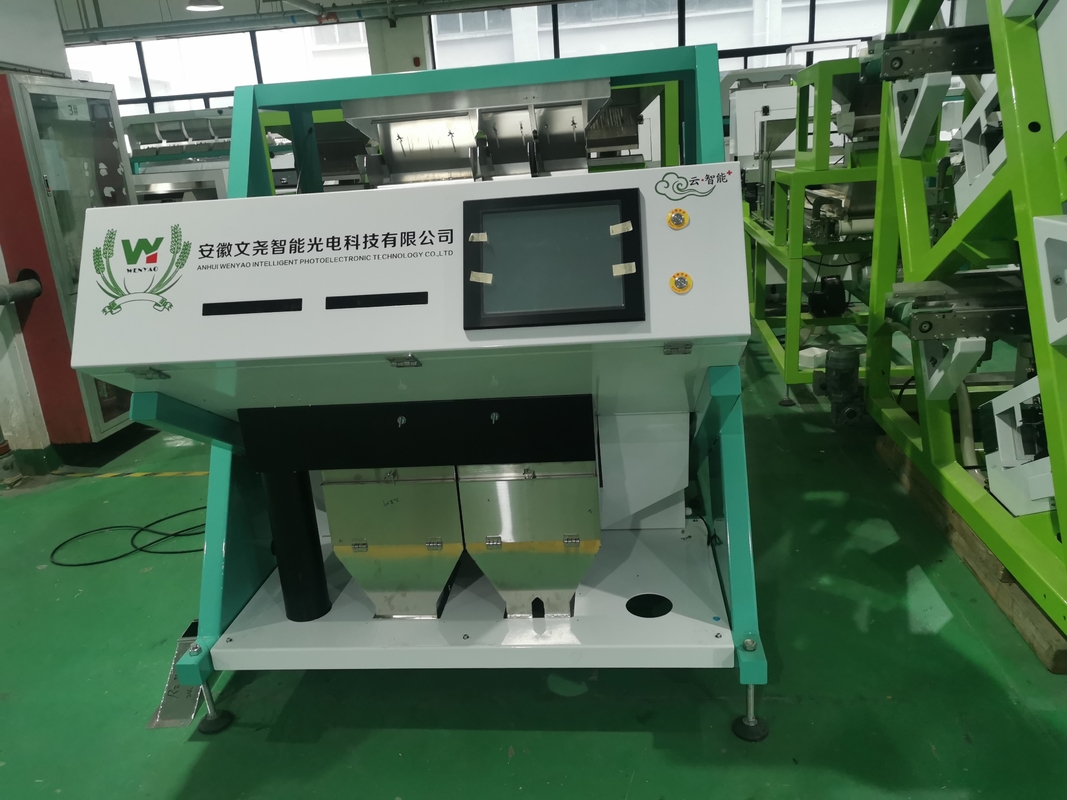

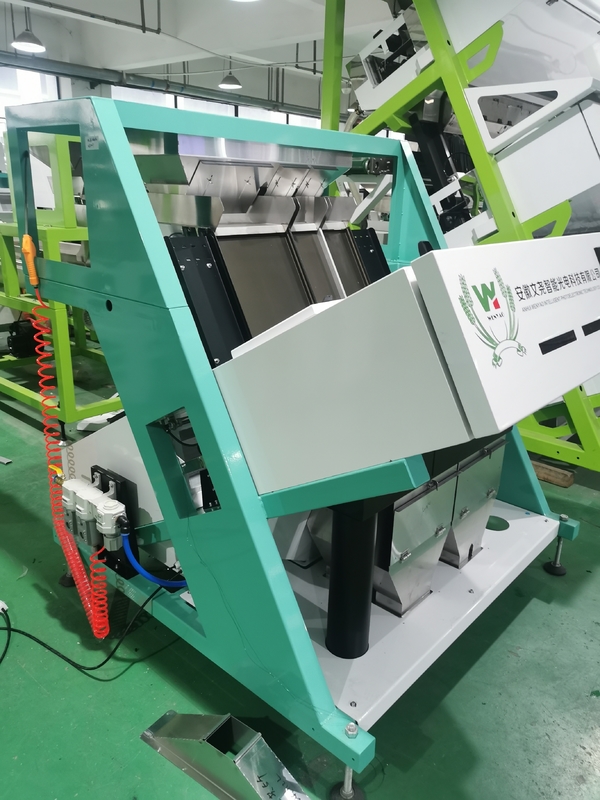

INTELLIGENT MULTI-FUNCTION QUINOA COLOR SORTER MACHINE COLOR SORTING MACHINE
optic sorters can recognize objects' color, size and shape, can compare objects to user-defined accept/reject criteria to identify and remove defective products and foreign material from the production line, with the purpose of separating product of different grades and types of materials.
color sorters are commonly applied in sorting of grain, coffee, peanuts, crops, beans, seeds, spices, nuts, rice, vegetables, fruits etc.
PARTS DETAILS:
.INTELLIGENT OPERATION SYSTEM
Overall Large Screen HD Operation control panel, 1080P Super high resolution,system more stable, more friendly Human-Machine-Interface panel, which gives high sensitivity instant fast repones in the industrial environment.
NEWLY SPECIAL SUPER WIDTH CHUTE DESIGN
Special technology chutes, applicable for universal materials,make the transfer more steady, more capacity.
MECHNICAL RECONSTRUCTION
Reconstrution of the mechnical frame, the main part with special material,balancing whole frame bearing, ensure the machine integrity. Working with the updated mechanism, it strength the base of the ultra-sorting.
SELF-DEVELOPED SPRAY VALVE
Self-developed spray valve, Self-developed high-performance spray valve, super high rapid response to the Algorithm results. It can continuously working 12billion+ times, extremely long life, with low air consumption,master the core technology.
ILLIMITABLE SORTING POSSIBILITIES, START BY “ONE BUTTON” PRESSURING
Hundred of sorting profiles can be saved in machine machine, for the variety products for sorting, subdivide the quality of agric and sideline products illimitable sorting possibilities,“one button”start, “one button”profiles exchange.
SHADOWLESS COLD LIGHT SOURCE,AUTOMATICA ADJUSTABLE
Extremely long life, low energy consumption intellligent shadowless cold light source, orthogonal spectrum technology, make the image more visiable, more accuracy detection; the output luminance of light source are automatically adjustable, it make the lights more stable with high quality. It is fully appliable for the camera to see and detect.
Technical Parameters:
| MODEL | WYCS2-128 |
| Chutes/Channels | 2/128 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1.1kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <1.2M3/Min |
| Weight | 450kg |
| Diamension(L*W*H) | 1250*1535*1832mm |
Examples of color sorting:
CCD Color Sorter Machine
Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD
The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
.
