Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS3-192
Contact Us

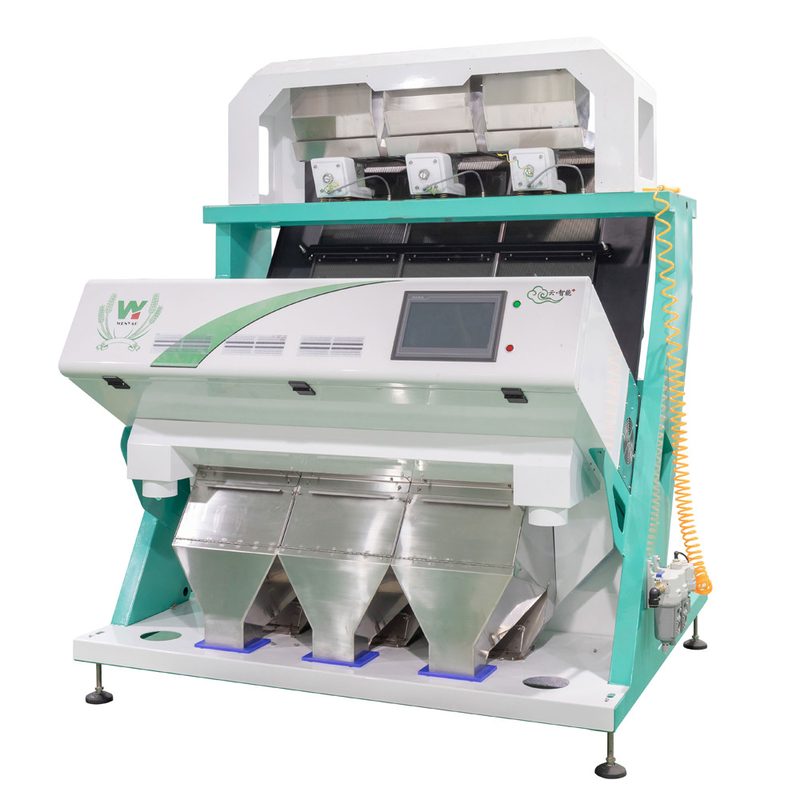

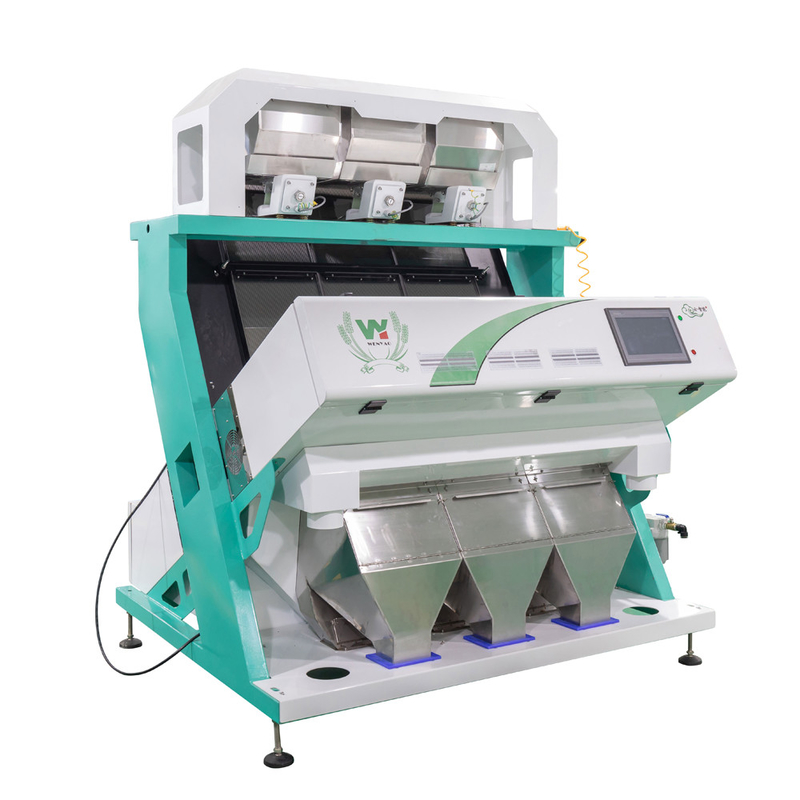

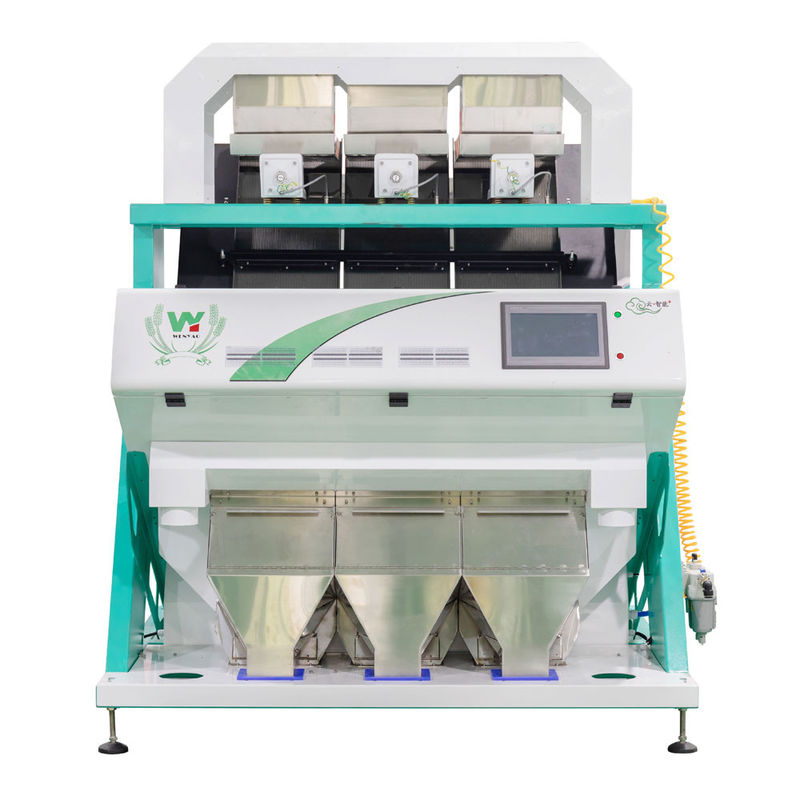

Coffee Beans Color Sorter Cocoa Pulses Sorting Machine Separator Cacao Bean Color Sorter
Unsorted coffee beans in the feedhopper on the top of mahince under the vibrating of vibration will be disbutrited and sliding along the chute into the zone of observation with nir sensor and background plate.Under the effect of light source, CCD sensor receives compound lights reflect from the mixed coffee beans to be sorted.The light intensity and color changes,make the system occur signal and drive solenoid valve to reject the discolor coffee beans to defect chamber and good coffee beans continue to fall into the accept chamber.
Good Life Start Here , Wenyou Color Sorter , Keep The Beautiful World For You !
Technical Parameters:
| MODEL | WYCS3-192 |
| Chutes/Channels | 3-192 |
| Throughput(t/h) | 3000 kg /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 1600w |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | 800-1800 L/Min |
| Weight | 600kg |
| Dimension(L*W*H) | 1620*1535*1832mm |
Examples of color sorting:
WHY THE CLIENTS CHOOSE CHINA WENYAO
1. More than 10 years experiences.focus on sorter machine.The famour sorter machine factory.
2. After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and test the machine
3. Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
Product Features
*Wide-spectrum, co-focusing system, Toshiba HD imaging capture, accurately position the aim and Intelligent analyze and high speed processing.
*Multi-function,multi-purpose,widely used for rice,millet,sesame etc.
*Espcially good at identifying and sorting light yellow, tiny spot, micro color difference etc.
*Cold LED light source, long life span and maintenance free.
*Combined with color sorting, shape sorting and size sorting.
*High and specification ensures high stability,with high sorting accuracy, small carry over and low energy consumption.
*Full color technology with wide spectrum, intelligent system, self-learning function, easy operation.
*Suitable for rice mill line of 15 model.
