Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us
Latest Version Onion Seeds Color Sorter With 99.9% Accuracy
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Onion Seeds Color Sorter,99.9% Accuracy
Onion Seeds Color Sorter can be used for sorting Onion Seeds. The product can be classified with minute detailing, setting apart the good ones from the defective seeds using a sophisticated line scan camera which scans Onion Seeds at the rate of 6000 scans per second and producing a very high resolution image of the object.
The product data is compared with user preset parameters to discard the flawed product using swift pneumatic ejectors. Product efficiency is critically appreciated globally by clients spread across the food processing industry. Dimensional accuracy with structure perfection ensures dependable and seamless performance.
Newly Upgraded Onion Seeds Color Sorter
1. Shape sorting + color sorting to ensure the quality of rice
·White, red, black quinoa, different colors, moldy, stone, impurities are optional
2.High precision, large output. Net sorting rate≥99.9%
3. long life and durable
·304 stainless steel, OSRAM LED lights, imported Al chips and other high-end configurations make the machine more durable
Smart system
Multi-megapixel high-resolution color CCD.Full color image sensor·Identify0.01mm2 spots
Magnetic levitation rejection
·Italian high-precision magnetic suspension valve Key rejection device of color sorter Intelligent production, long service life
High Precision Corn Sorting Color Sorter Machine
Wenyao Optical Sorting technology with High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*With Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
Colour Sorter Machine With Expert Sorting Solution Realizes One Key Debugging
* Remote Debugging, Diagnosing And Maintenance.
Examples of color sorting:
Remote recognition
Long-distance recognition: The long-distance sorting system can effectively reduce the influence of the dust and debris, make the identification more clearly;
Anti-breakage system
Anti-breakage system 3.0, effectively reducing the material damage;
ALL new industrial machinery design structur:
Industrial machinery structure system 3.0, smaller size, waterproof and durable; With 304 stainless steel structure, Brushed metal, overall bright and clean.
Intelligent recognition
Holographic flash camera
350 million pixels + ring self-repairing lens, material identification accuracy is higher;
AI processing platform
Equipped with SOC smart core, integrated AI deep learning algorithm, faster and smarter.
Wisdom sorting
Separation system
High-end custom ejector equipped with a central positioning algorithm, make higher separation accuracy;
Sorting system
With long-distance conveying, make the conveying trajectory more stable, material evenly distributed and better sorting accuracy
Outstanding output
Full coverage dust cleaning system
Stronger rodless cylinder, no deformation, make the cleaning more smooth;
Uniform feeding system
High-frequency vibration system, uniform feeding distribution, no stacking.
Full intelligent interconnection
Simple UI
Minimalist interface, simple debugging, and easy operation;
Intelligent linkage control system
Global intelligent interconnection, real-time sharing of sorting program;
Intelligent sorting
Intelligent sorting + visual operation, easier to use.
The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.
Micron recognition system
Accurately identify subtle color differences and shape differences
Imported ultra-clear low-distortion camera +5400CCD sensor, With long-life, high-focus LED light source.
Brand new upgrade of Intel
Fifth-generation FPGA
Faster speed and lower power consumption.
UHF Ultra high speed ejector
The ultra-short gas path structure design greatly reduces the response time of the spray valve.
The processing speed is faster, the rejection rate is higher, and the color sorting effect is better.
Adaptive smart cleaning system
According to the condition of the sorted materials,
The cleaning mode is automatically adjusted without manual intervention.
Surround recognition technology
Unique 360° surround recognition technology realizes sorting without dead ends.
One-piece original display
The operation is more sensitive and the operation is smoother,
Easy and quick adjustment of sorting parameters
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.

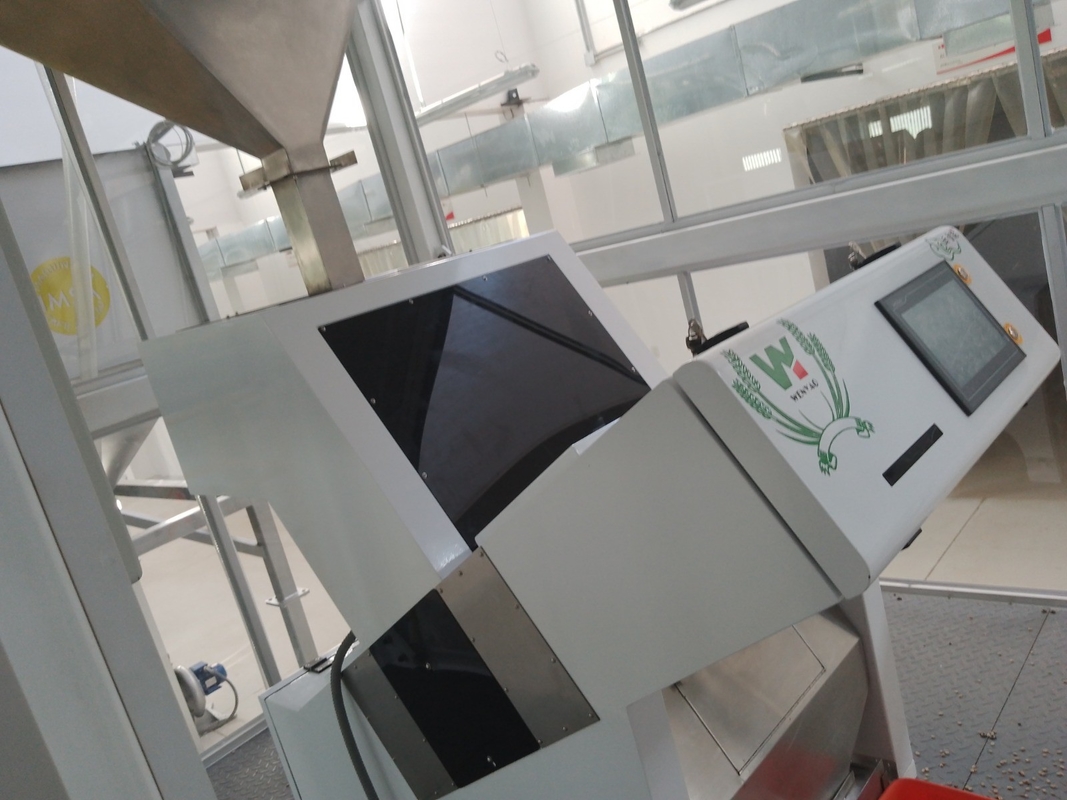

Customer's Site :
