Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS10-640
Contact Us

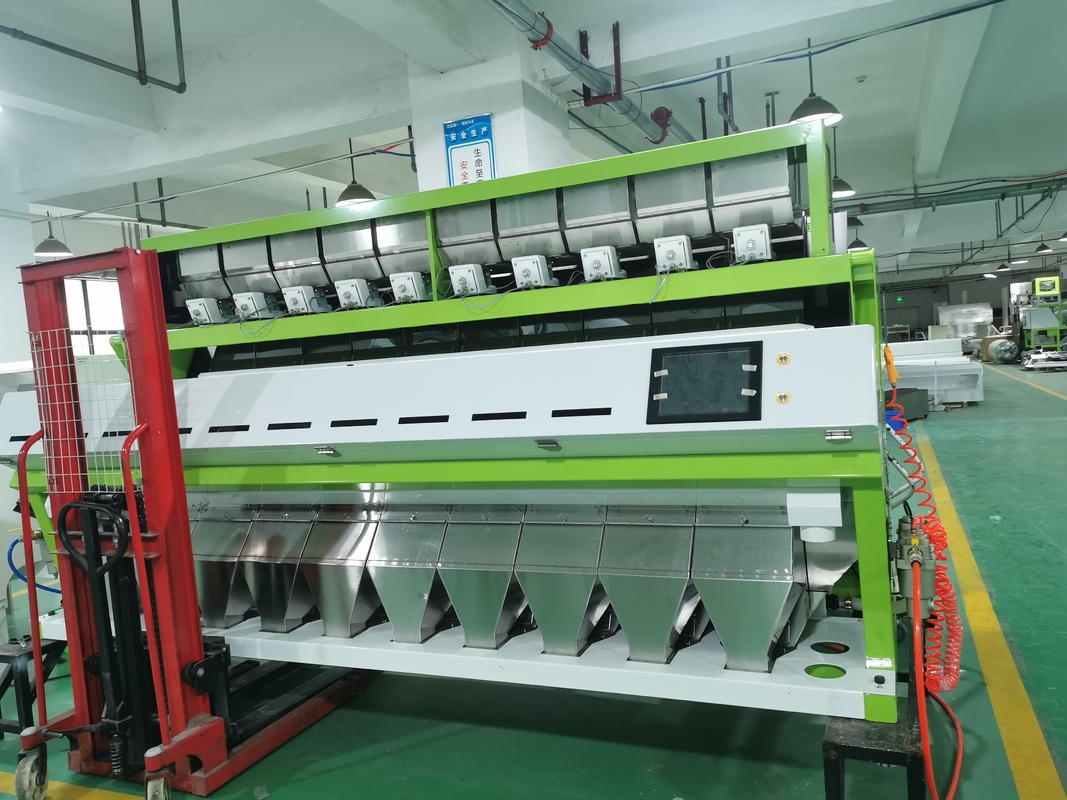

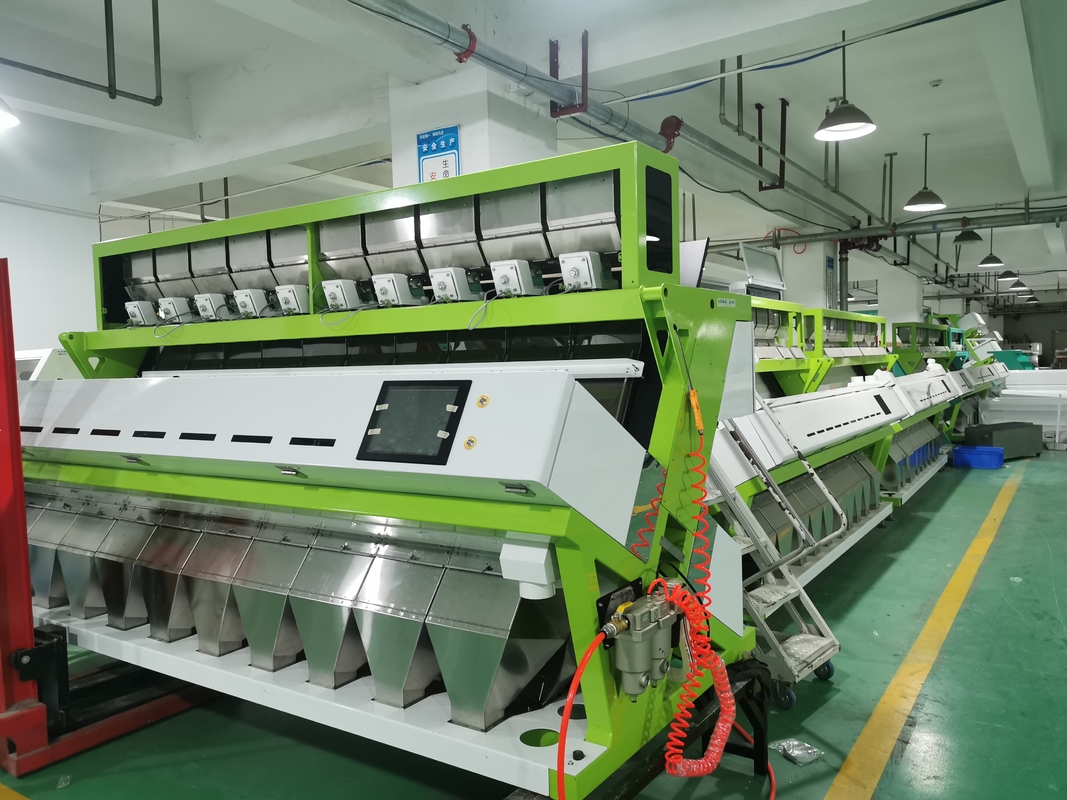

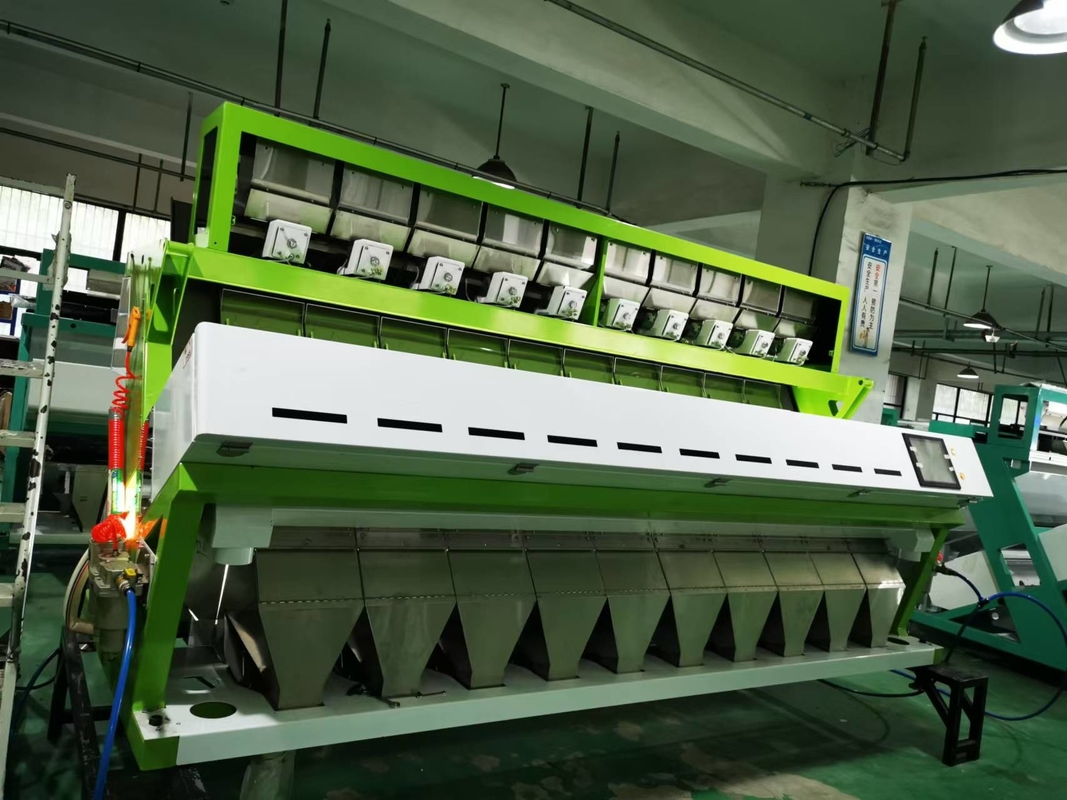

GORDON EURYALE SEED Color Sorter Machine Nuts Sorter Macadamia Nut Color Sorting Machine
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
Details as following | |
MODEL | WYCS10-640 |
Chutes(channels) | 10(640) |
Sorting accuracy(%) | ≥99.9 |
Carryover rate (bad:good) | ≥30:1 |
Output(T/h) | 6-8 |
Voltage | 180-240V/50Hz |
Power supply(kw) | 6.5 |
Work Air Pressure(Mpa) | 0.2-0.3 |
Air consumption(L/min) | 2600-5000 |
Air supply(Mpa) | 0.6--0.8 |
Dimension(L*W*H) mm | 3630*1545*1860 |
Weight(kgs) | 1800 |
Package | Plywood case |
Package Size mm | 3764*1554*1871 |
Color sorter work principle:
The working principle of CCD color sorter CCD digital camera to material is adopted signal acquisition.Analyze the collected signals, handling, comparison, to eliminate beyond the value of the material.
Color selection process as shown:
Color sorter at work,Feed hopper in the material under the action of vibrator is uniform distribution in each chute,The CCD signal of the whereabouts of the material in testing,If it is found that there are unqualified material or impurities in the material,The startup ejector to blow the defective goods in the hopper.(Above only for the working process of the diagram,The actual material shall prevail.)
Examples of color sorting:
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
1. LED:Split LED design, Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;
2. Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;
3. Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion:<0.2%, low color difference: <0.1 pixel, better imaging performance;
4. Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;
5. Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time;
6. Operation interface: 15-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;
7. Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;
8. Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;
9. Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology;
Frontward and backward vibrator adjustable platform, easy for multiple products.
Customer's Site :
Why choosing Wenyao
1,Advanced image acquisition system
color sorter machine use the high resolution monochromatic camera or RGB camera(5000+ pixels) with high quality industrial lens to achieve clear and accurate image acquisition.The camera could capture the micro defects of material instantly.
2,Intelligent image processing algorithm
Color sorting algorithms of gray level,color difference and HSV are perfectly combined with shape sorting algorithms of size,circular degree,texture etc,and successfully solved a series of high difficulty color sorting problems,and dramatically enhance the sorting accuracy.
3,Unique chutes processing technology
The special anodizing and hardening technology can greatly improve the channel smoothness and ware resistance to guarantee high production.
4,High quality solenoid valve(ejector)
color sorters are equipped with high quality solenoid valve.The valve has longer lifespan,high frequency and low air consumption.The working frequency is 1000 times per second,which guarantees the accurate and perfect ejecting.For the different sizes and characteristics of material particle, NAGE optical sorters use the solenoid valve of different sizes.
5,High efficiency and reliable light source
Advanced LED lighting technology with advantages of super high intensity,long lifetime&perfect performance.
6,Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with the well-designed human-machine interface to simplify the complexity of machine commissioning and use, ensuring the simple operation and the machine is easy to learn and use.
Rice: white/black/red/yellow/barley rice
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Beans: soybeans/mungbeans/red beans/broad beans
Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag
