Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass

Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass

Waste Glass Color Sorter

304 Stainless Steel Color Sorter

High Resolution Color Sorter

Place of Origin:

China

Brand Name:

Wenyao

Certification:

CE

Model Number:

Belt color sorter

Contact Us

Request A Quote
Product Details
Application:
Ore, Industrial Product, Tea, Dehydrated Vegetable, Grain, Peanut, Bean, Corn, Wheat, Rice
Light Source:
LED
Machinery Function:
Shape Sorter, Color Sorter
Voltage:
220V`380V/50Hz
Filter:
SMC/CKD
Brand Of Power Supply:
Taiwan Meanwell
Type:
CCD
Sorting Accuracy:
99.99%
CCD Sensor:
Toshiba
Type Of Ejector:
Metal Ejector
Transport Package:
Plywood
Payment & Shipping Terms
Minimum Order Quantity
1 SETS
Price
USD 15000-25000 SETS
Packaging Details
PLYWOOD
Delivery Time
15 DAYS
Payment Terms
T/T, L/C
Supply Ability
500/YEARS
Product Description
Product Description

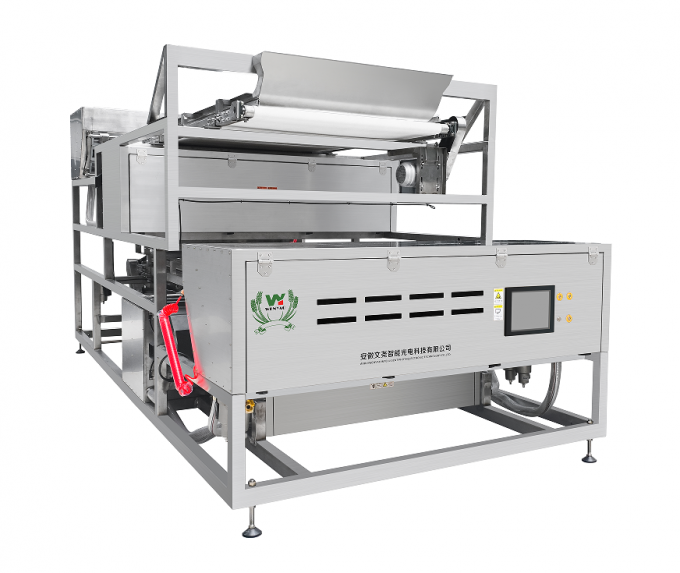

Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 0
Wenyao Color Sorter Machine
Wenyao Color Sorting Machine Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The
CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in
the materials, the ejector will blow the defective goods in the hopper.
* Focus On Systematic And Original Design
* Multi-Dimensional Intelligent Color Sorting
* Intelligent And Convenient Interactive Interface
* Make Color Sorting More Professional And Intelligent
Product Paramenters
Model
Power
Voltage
Air Pressure
Air Consumption
Dimension
WYB1
3.1KW
180~240 50HZ
0.6~0.8Mpa
<1.5m³/Min
3189*860*1485mm
WYB2
3.6KW
180~240 50HZ
0.6~0.8Mpa
<2.0m³/Min
3189*1160*1485mm
WYB4
4.7KW
180~240 50HZ
0.6~0.8Mpa
<3.0m³/Min
3189*1910*1510mm
WYB6
6.6KW
180~240 50HZ
0.6~0.8Mpa
<4.5m³/Min
3189*2510*1510mm
WYDB2(Two Layer)
6.2KW
180~240 50HZ
0.6~0.8Mpa
<3.0m³/Min
3435*1160*2360mm
WYDB4(Two Layer)
7.8KW
180~240 50HZ
0.6~0.8Mpa
<6m³/Min
3435*1910*2360mm
WYDB6(Two Layer)
12.6KW
180~240 50HZ
0.6~0.8Mpa
<9.0m³/Min
3435*2510*2360mm
WYBLS1(Low Speed)
1.5KW
180~240 50HZ
0.6~0.8Mpa
<1.5m³/Min
2450*900*1650mm
WYBLU4 (Single-Camera)
4.1KW
180~240 50HZ
0.6~0.8Mpa
<3.0m³/Min
3262*1910*1270mm
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 1
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 2
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 3
Product Features
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 4
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 5
COMPANY PROFILE
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 6
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 7
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 8
ANHUI WENYAO Optoelectronic Technology Co., Ltd founded in 2007, which combined with design, manufacture and selling. We manufacture high-tech optical color sorter machine of sorting wheat, rice, tea, melon seeds, grains, coarse cereals, nuts, dried vegetables, dried seafood, plastics, ores, ect. Supply the service to customers from Asia, the Middle East European, South Africa and African markets.

Through countless cooperation and OEM service with international partners, ANHUI WENYAO has streamlined the proper procedures and processes and opened up professional techniques that are ahead of the color sorting field and delivered the highest-quality products to every corner of the world.

Through countless hardwork, we serve customers from all over the world. We have high reputation in domestic, Africa, Middle-East,South-East Asia market. Expect you to join our big family. We will never let you down.

What you can choose from wenyao?
---Over 15 years experiences focus on sorter machine.The biggest sorter machine factory.
---Advanced equipment, good quality
---Professional skills, all-related services
---High quality and efficiency technology
---Complete production line, quick delivery
---The biggest grain and oil machine manufacturer and exporter in China
---Exporting to more than 100 countries and regions
Customer Photos
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 9
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 10
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 11
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 12
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 13
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 14
Packaging&Shipping
Wenyao Waterproof 304 Stainless Steel High Resolution Wet Glass Optical Sorting Machine Color Sorter for Waste Glass 15
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
FAQ
1. How To Use The Machine?
We Will Supply The Installation Instructions Or Video And Our Engineers Will Train Your Operators.

2. How Long About The Guarantee Period?
Years. And We Supply Lifelong Software Upgrade Services For Our Customers.

3. Can You Supply The Air Compressor, Air Tank And Air Filters?
Yes, We Can Provide Above Equipment, Our Standard Offer Includes Color Sorter Machine With Air Compressor, Air Tank And Filters.

4. Is Oversea Service Available?
Yes, Our Engineers Could Go Abroad When Required.
