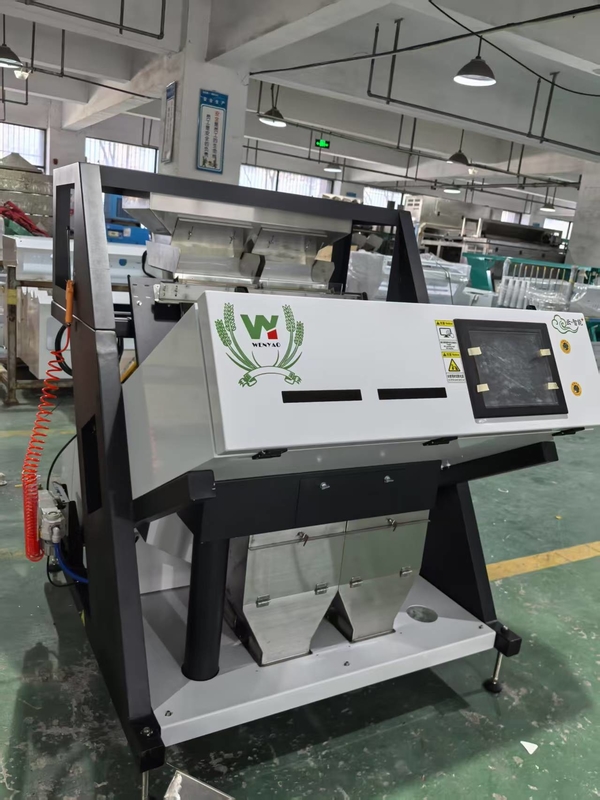

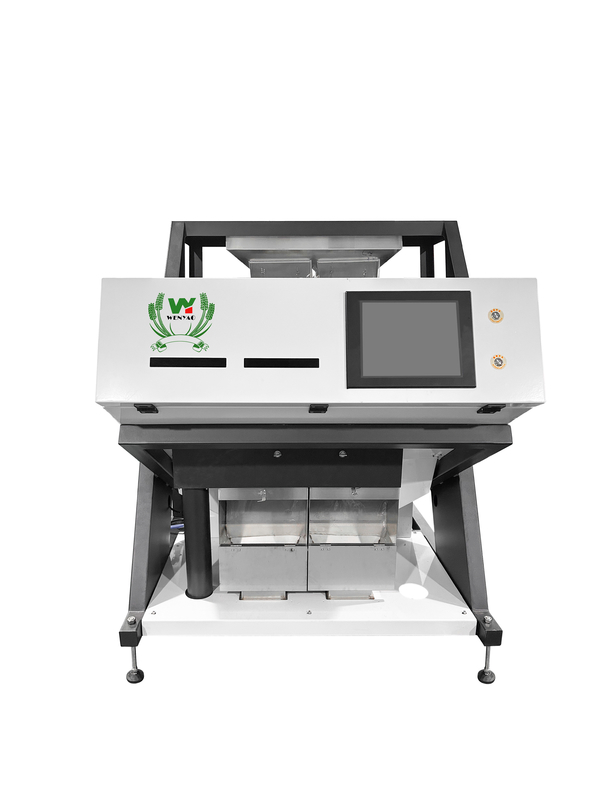

Wenyao Newest Technology Ccd Camera Sesame Seeds Color Sorter Tamarind Seeds Sorting Machine
color sorter is a high-tech product that integrates optics, machinery, electronics, and pneumatics, and has the function of secondary sorting. The basic working principle of the color sorter is to feed the material through the feeder, allowing the material to pass uniformly through the viewing point. The CCD camera captures the color and shape information of the material and sends the data to the data processing unit for image processing and threshold selection. Finally, the defective materials are rejected by high-frequency electromagnetic valves.
PARTS DETAILS:
Color sorters play an important role in the production and processing industry. It improves production efficiency, product quality and sustainable development, and helps enterprises achieve a win-win situation of scientific and technological innovation and economic benefits. With the continuous development of science and technology, the functions and application fields of color sorters will continue to expand, and make greater contributions to industrial upgrading and sustainable development.
Digital Intelligent Wheat Color Sorter Machine
*Optical Sorting Technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System,Intelligent Algorithm,User Friendly Interface;
*Installing in Flour milling processing plant with Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*Wheat Sorting Machine With SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Expert Sorting Solution Realizes One Key Debugging
Technical Parameters:
| MODEL |
WYCS2-128 |
| Chutes/Channels |
2/128 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<1.2M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
1250*1535*1832mm |
Examples of color sorting:
CCD Color Sorter Machine
Among them, the photoelectric large bean color sorter is a popular style in the past few years. It is an ordinary photoelectric sensor. At present, the CCD sensor large bean color sorter is the most used in the market, and the maximum resolution is 5400 pixels. Speed line scan CCD
The difference between the photoelectric color sorter and the CCD color sorter lies in the sensor. Because the CCD color sorter uses a high-definition CCD color sorting lens, the color sorting accuracy is improved from 2 square millimeters of the photoelectric color sorter to 0.040. 08 square millimeters, the color sorting accuracy is improved, and the CCD output color sorter is also greatly improved compared with ordinary photoelectric color sorters.
Feature:
1) High resolution full color camera 5400 CCD sensor. High definition industrial lens.
2) Human-computer interaction. Image Capture. Holographic Imaging. One-key automation. Automatic System Check.
3) Sorting master. High quality ejector.Intelligent lighting source. Target orientation.
4) Identification expert. Size identification. Texture identification. Shape identification. Edge identification. Sorting accuracy
infinitely close to 100%.
5) System Guard. Intelligent algorithm.Automatic rectification. Targeted dedusting.
1. How to use the machine?
We will supply the Installation instructions or video and our engineers will train your operators.
2. How long about the guarantee period?
One year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required.
5.How to calculate Installation personnel cost?
On condition that customer requires to install, our company would like to send 1 Engineer to guide for installation, then customer should to pay the cost, including transaction of Engineer's visa, transportation(air) for go abroad. and accommodation , local transportation and security when the Engineer arrived.
.
