Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

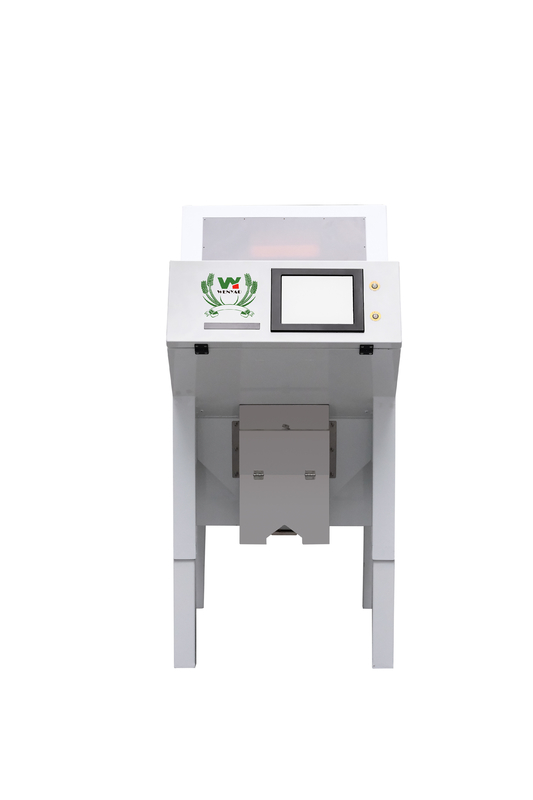

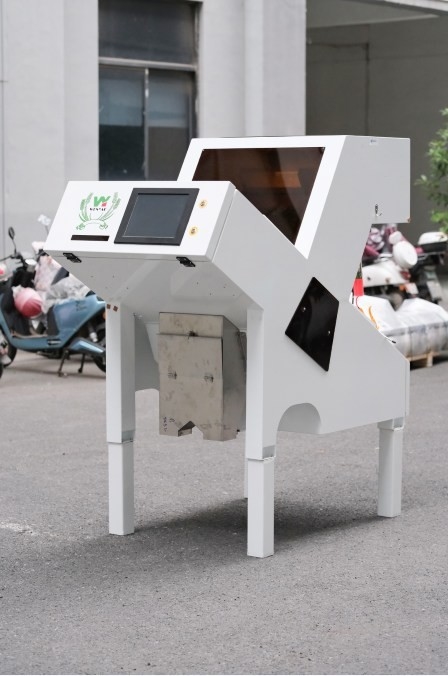

High Performance Peanut Color Sorting Machine Hazelnut Nut Color Sorter
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
1.High accuracy: The peanut color sorting machine is equipped with advanced image processing technology and high-precision optical components, which can accurately identify the color of peanuts and effectively remove the impurities.
2.High efficiency: The peanut color sorting machine has a high sorting speed, quickly sort out the qualified products.
3.Easy to operate: The peanut color sorting machine adopts a touch screen operation interface, which is simple and convenient to operate, and can be easily mastered by workers with no experience.
4.Low energy consumption: The peanut color sorting machine uses an air compressor as its power source, which has low energy consumption and is environmentally friendly.
5.AI algorithm to reject plastic, glass and other malignant impurities.
Our Advantage :
Question 1: What are your advantages compared with your competitors?
Answer:With rich industry experience and strict Product Quality Control systems, we provide:
1). Stable and reliable product at reasonable price. 2). Good customer service: Fast response to any inquiry or question. 3). On-time delivery.
Question 2: Are you a manufacturer?
Answer: Yes, we are glober manufacturer with more than 18 years' color sorter producing and export experience.
Question 3: How to install and use the machine?
We will supply the installation instructions or videos and our engineers will train the operators.
Question 4. How long about the guarantee period?
Two years. The warranty period starts on the day of delivery.We supply lifelong software upgrade services for our customers.
Question 5: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other data sheets related shall be provided by us.
Examples of color sorting:
1. LED:Split LED design, Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;
2. Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;
3. Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion:<0.2%, low color difference: <0.1 pixel, better imaging performance;
4. Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;
5. Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time;
6. Operation interface: 15-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;
7. Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;
8. Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;
9. Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology;
Frontward and backward vibrator adjustable platform, easy for multiple products.
Application scope
Dehydrated vegetables, plastic tablets, used glass, Chinese herbal medicine pieces, dried chili, garlic cloves, dried shrimps, miscellaneous grains, etc.; uniform size and non-round granular materials.
Peanuts, soybeans, lotus seeds, pine nuts, macadamia nuts, plastic bottle flakes, quartz sand, ore, Chinese herbal medicine, scrap metal, salt water bottle tablets, etc.; round granular materials, irregular shape and sorting environment, more dusty materials.
concave materials such as cashews.
Walnut, nut shell kernels, miscellaneous, foreign matter sorting models.
Special machine for aquatic products such as shrimp and dried small fish
Special machine for vegetable materials such as beans and peas.
Remote recognition
Long-distance recognition: The long-distance sorting system can effectively reduce the influence of the dust and debris, make the identification more clearly;
Anti-breakage system
Anti-breakage system 3.0, effectively reducing the material damage;
ALL new industrial machinery design structur:
Industrial machinery structure system 3.0, smaller size, waterproof and durable; With 304 stainless steel structure, Brushed metal, overall bright and clean.
Intelligent recognition
Holographic flash camera
350 million pixels + ring self-repairing lens, material identification accuracy is higher;
AI processing platform
Equipped with SOC smart core, integrated AI deep learning algorithm, faster and smarter.
Wisdom sorting
Separation system
High-end custom ejector equipped with a central positioning algorithm, make higher separation accuracy;
Sorting system
With long-distance conveying, make the conveying trajectory more stable, material evenly distributed and better sorting accuracy
Outstanding output
Full coverage dust cleaning system
Stronger rodless cylinder, no deformation, make the cleaning more smooth;
Uniform feeding system
High-frequency vibration system, uniform feeding distribution, no stacking.
Full intelligent interconnection
Simple UI
Minimalist interface, simple debugging, and easy operation;
Intelligent linkage control system
Global intelligent interconnection, real-time sharing of sorting program;
Intelligent sorting
Intelligent sorting + visual operation, easier to use.
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the customers.If needful, our engineers will help the customers to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine,air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
