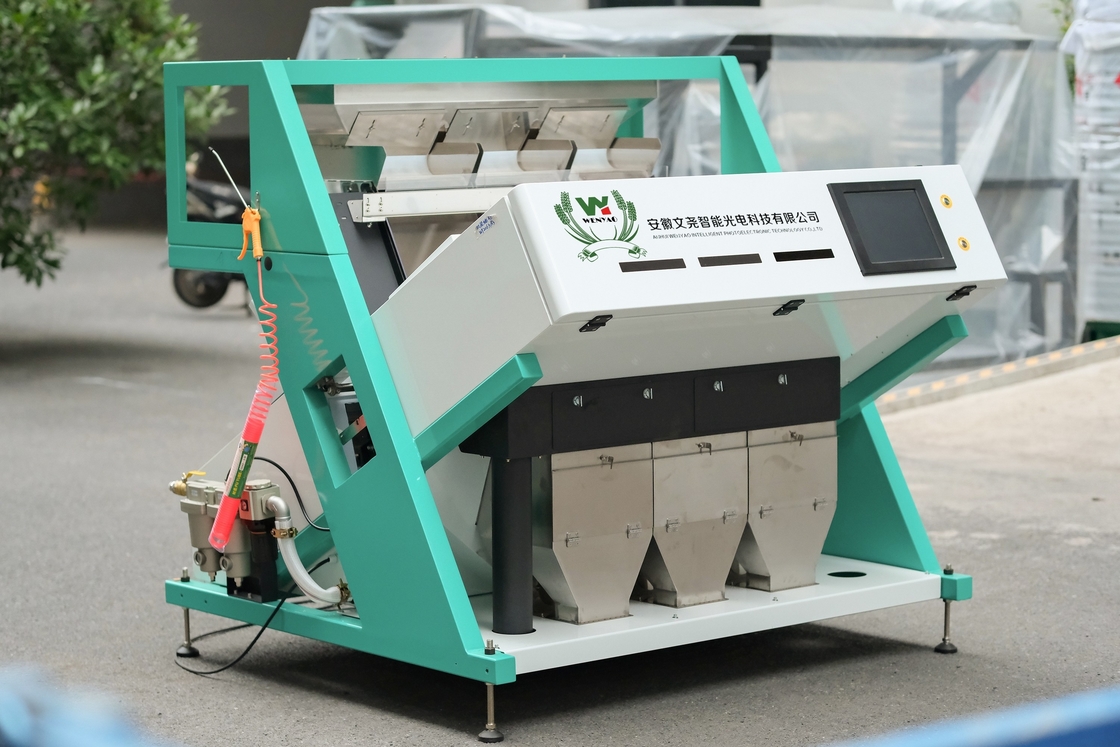

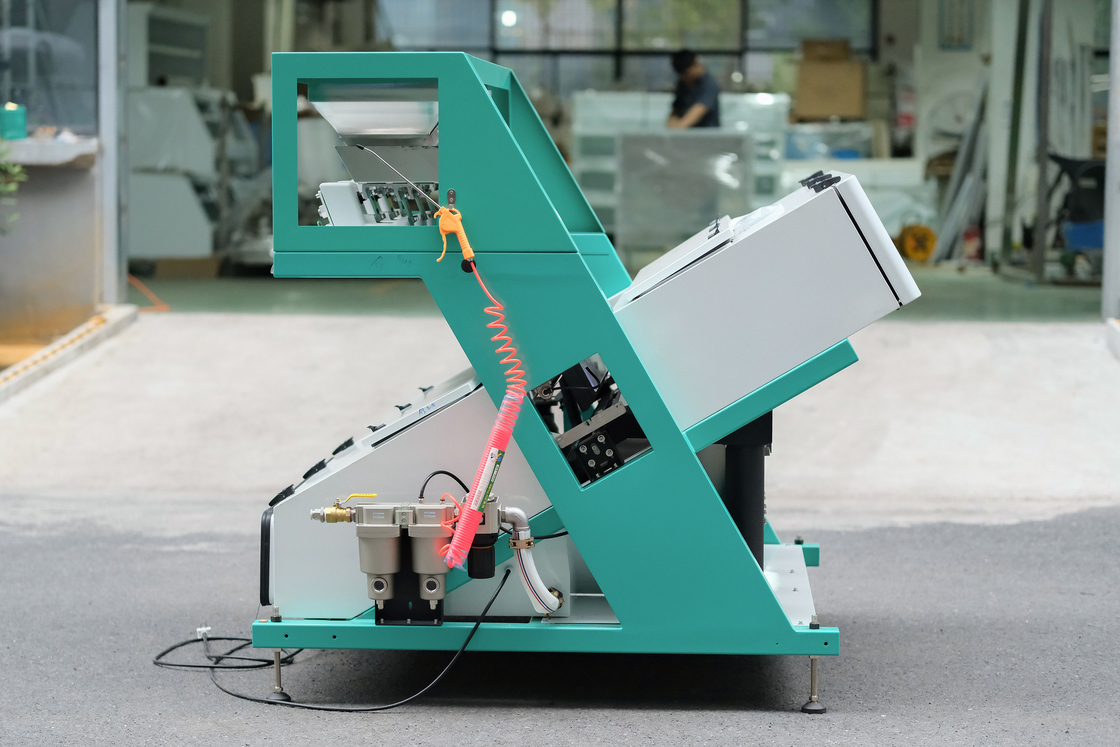

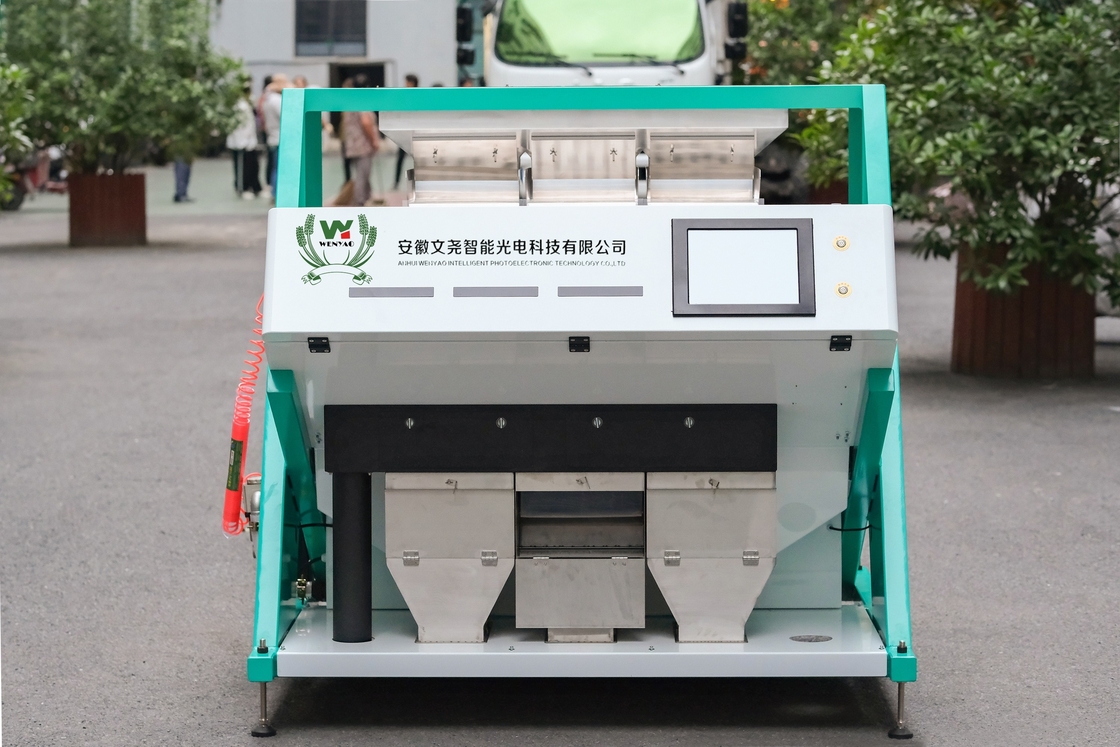

Wenyao Black Bean Color Sorter Efficient Grain Sorting Machine for Wheat White Sesame Soybean Black Sesame Corn
Technical Parameters:
| MODEL |
WYCS3-192 |
| Chutes/Channels |
3-192 |
| Throughput(t/h) |
500 kg /H |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1600w |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
800-1800 L/Min |
| Weight |
600kg |
| Dimension(L*W*H) |
1620*1535*1832mm |
Examples of color sorting:
Why Choose Wenyao Color Sorter?
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
Main features
Increased Productivity
- Dedicated digital sorting engine to deliver high speed
- Wide flat chute to increase throughput
Maximized Sorting Yield
- Sorting high speed and precise ejection to minimize good product in reject
- Resort capability reclaims good product from reject
High Sorting Accuracy
- High speed, high resolution, full color RGB CCD camera to detect tiny defects
- Advanced imaging technology to sort defects with minimum contrast
- Enclosed feeding system to provide better feeding and chute protection
- Infrared sorting (optional) to effectively sort foreign materials
User Friendly Operation
- High resolution touch screen with user-friendly graphics
- Real time monitor of machine status
- Easy software upgrade with USB
Ejection
- Specially made ejectors and optimized timing for low carryover, reduced air consumption
- Dual air supply for stable air pressure under high defect sorting
Product Details:
1. Ejectors of SMC from Japan
2.Cameras of Nikon from Japan
3. Lenses of Toshiba from Japan
4. Air filter of SMC or FESTO from Japan/Germany
5. Led light source of OSRAM from Germany
6. Arm of Samsung from South Korea
7. PCB boards of sunrise from china
8. Rod less cylinder of SMC/FESTO from Japan/Germar
9. Touch screen of MSGS from China
Feature:
· High level AI self-learning function,one-key automation,user friendly interface,easy operation
· Multi-function,multi-purpose,widely used for coffee bean,rice,grain ,walnuts,almond,plastic,chinese herbals etc.
· Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
· Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
· High end specification ensures high stability with high sorting accuracy, small carry over and low energy consumption.
-
