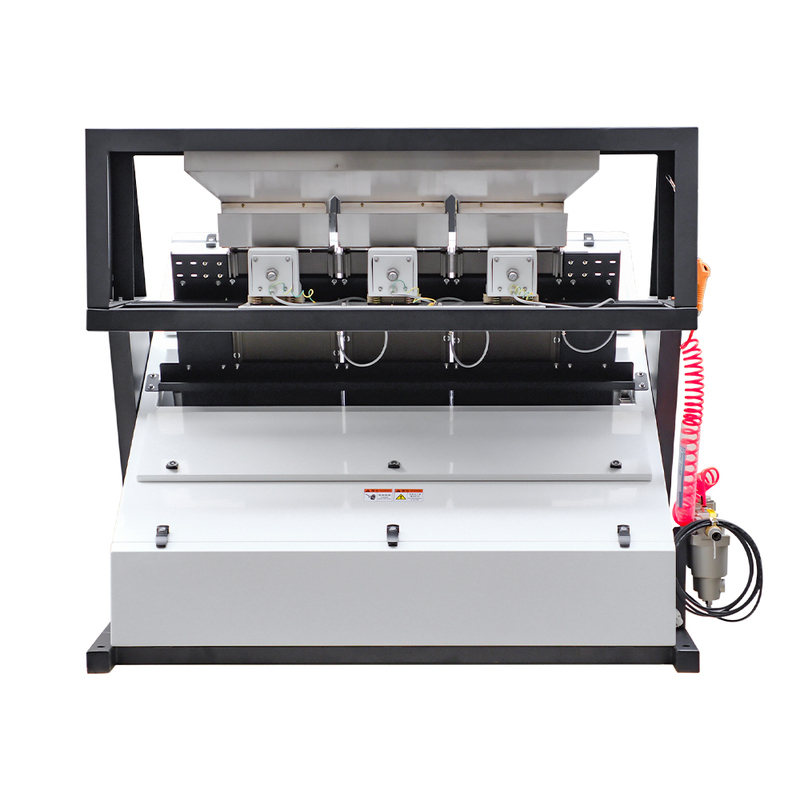

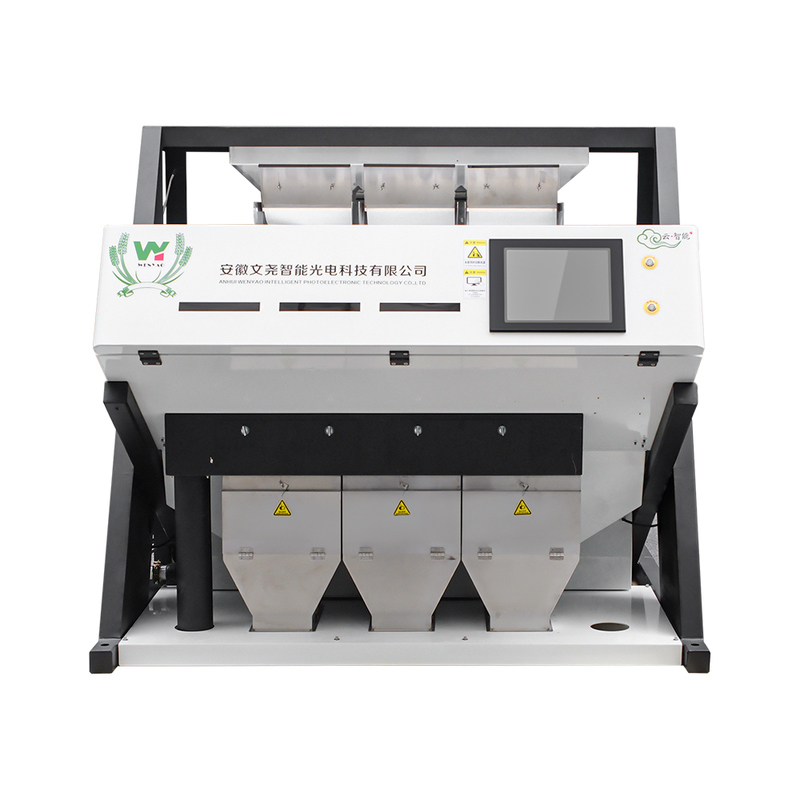

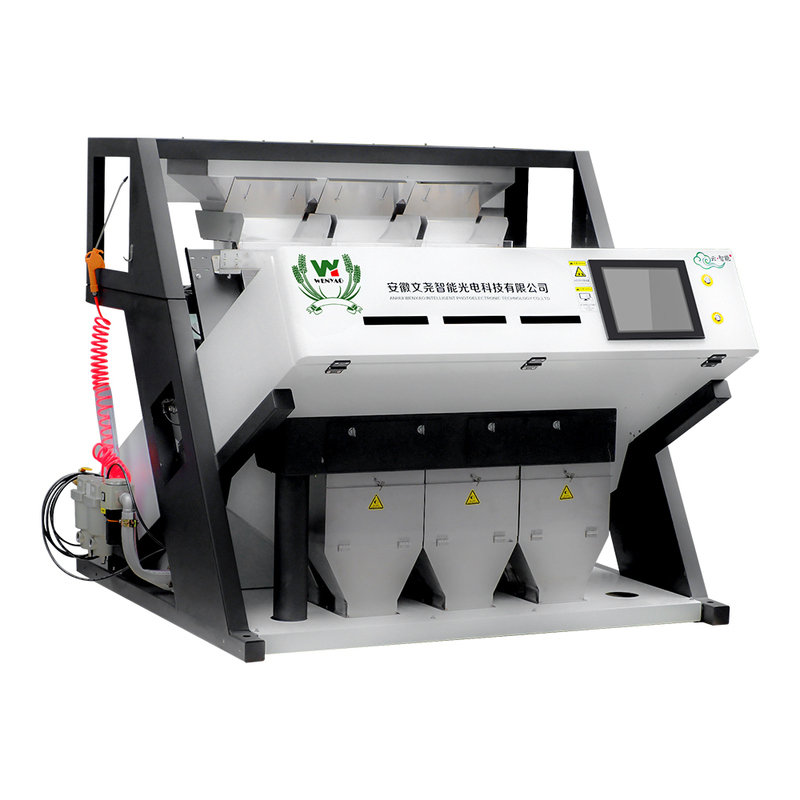

Name: Wenyao 192 Channel Full-automatic Beans Color Sorter with 99.99% Precision for Nut Rice Corn Wheat
Brand: Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd
SKU: WYCS3-192
Price: 11800 USD
Availability: InStock

Home > Products > Beans Color Sorter >

Wenyao 192 Channel Full-automatic Beans Color Sorter with 99.99% Precision for Nut Rice Corn Wheat

3 chute color sorter for nuts

192 channel CCD rice sorter

automatic wheat color sorter machine

Place of Origin:

Hefei,China

Brand Name:

WenYao

Certification:

CE,ISO9001

Model Number:

WYCS3-192

Request A Quote

Product Details

Machine Function:

Color Shape Sorter Machine

Precision:

99.99%

Capacity:

3-7Ton/h

Camera & Sensor:

Japan Toshiba

Air/Oil Filter:

Janan CKD Brand

Lights:

Germany OSRAM Led Light Source

Machine Color:

Blue,Black Or Customized

Remote Control:

Available

Warranty:

2 Years

Aftersales:

Online,Video,Engineer To Customers' Factory

Language:

More Than 20

Programs:

More Than 50

Accessories:

Compressor,air Drier,air Tank,elevators

Payment & Shipping Terms

Minimum Order Quantity

Price

11800

Packaging Details

Fumigation-free wooden case

Delivery Time

15-20days

Payment Terms

T/T,L/C

Supply Ability

20pcs/month

Wenyao Soybean Corn Sugar Coffee Bean Color Sorter Machine New Design Full Automatic Color Sorter Machine

Get Best Price

Video

Automatic Beans Color Sorter Coffee Beans Sorting Machine Multi-functional Separator for Soybeans Lentils Chickpeas

Get Best Price

Video

High Performance Coffee Bean Color Sorter with Japan Toshiba CCD Sensor, ≥99.99% Sorting Accuracy and 2 Years Warranty

Get Best Price

Video

CE ISO Certified Automatic High Output Optical Color Sorter Black Beans Coffee Beans Lentils Color Sorting Machine for Sale 2026

Get Best Price

+86--13855135585

service@wycolorsorter.com

+86-551-67699185

Contact Now

Product Description

Wenyao 3 Chute 192 Channel White Black Beans Color Sorter

Product Overview

Wenyao 3 Chute 192 Channel CCD High-precision Full-automatic Color Sorter for nuts, rice, corn, wheat, and various agricultural products.

Working Principle

During operation, materials in the feed hopper are uniformly distributed across each chute by the vibrator. As materials drop, the CCD sensor detects any unqualified materials or impurities, triggering the ejector to remove defective items.

Focus On Systematic And Original Design
Multi-Dimensional Intelligent Color Sorting
Intelligent And Convenient Interactive Interface
Make Color Sorting More Professional And Intelligent

Technical Specifications

Model	Power	Voltage	Air Pressure	Air Consumption	Dimension
WYB1	3.1KW	180~240 50HZ	0.6~0.8Mpa	<1.5m³/Min	31898601485mm
WYB2	3.6KW	180~240 50HZ	0.6~0.8Mpa	<2.0m³/Min	318911601485mm
WYB4	4.7KW	180~240 50HZ	0.6~0.8Mpa	<3.0m³/Min	318919101510mm
WYB6	6.6KW	180~240 50HZ	0.6~0.8Mpa	<4.5m³/Min	318925101510mm
WYDB2 (Two Layer)	6.2KW	180~240 50HZ	0.6~0.8Mpa	<3.0m³/Min	343511602360mm
WYDB4 (Two Layer)	7.8KW	180~240 50HZ	0.6~0.8Mpa	<6m³/Min	343519102360mm

Key Features

High-torque, low-emission engine (Tier III compliant)
Precision-controlled hydraulic system for smooth operation
Reinforced steel tracks with adjustable tension
Ergonomic ROPS/FOPS-certified cabin with air conditioning
Multiple arm and bucket size options available
Intelligent monitoring panel with fault diagnostics

Product Gallery

Sorting Performance

Company Profile

Anhui Wenyao Intelligent Photoelectronic Technology Co., Ltd. is located in Hefei City, Anhui, China. We are a comprehensive high-tech enterprise integrating scientific research, development, production, sales and service of intelligent CCD color sorters.

Our core components include high-speed sensors, 5400 camera pixels with high sorting accuracy reaching 0.02 square millimeters, high-frequency long-service ejectors, stable quality LED lights, long-service power supplies, specially designed sorting boxes, special process channels, and food-grade stainless steel hoppers.

Our company produces quality products with advanced technology, production testing equipment, and a comprehensive quality assurance system. All machines are CE certified and used for sorting rice, wheat, corn, peanuts, coffee beans, walnuts, almonds, cashew nuts, sesame, tea, plastic, and other agricultural and industrial products.

We provide 24/7 service and technical support, with service engineers available worldwide for installation and operation training. Our machines are exported to South Asia, Southeast Asia, Europe, Middle East, Africa, and South America.

Successful Cases

After Sales Service

Standard Warranty: 24 months
Global Support: 24/7 technical assistance and spare parts supply
Training: On-site or remote operation/maintenance training

Frequently Asked Questions

What's the lead time for orders?

Standard models ship in 15-30 days; customized units require 30-45 days.

Do you provide after-sales service overseas?

Yes, we have partnered service centers in key regions.

Can I request a customized bucket size?

Absolutely! We offer tailored attachments.

What documents do you provide for export?

Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

How do I place an order?
