Wenyao Wifi Remote Control Apricot Color Sorter Optical Coffee Bean Nut Color Separator Machine
Product Description
The Wenyao Color Sorting Machine operates by distributing materials evenly through vibrator-controlled chutes. A CCD camera detects impurities during freefall, triggering an ejector to remove defective items.
Technical Specifications
| Model |
WYCS1-64 |
| Power |
1.1 KW |
| Voltage |
180~240 50Hz/60Hz |
| Air Pressure |
0.6~0.8 MPa |
| Air consumption |
<0.5 m³/min |
| Dimension |
800*1556*1274 MM |
* The data of the machine overall dimensions are for reference only, specific dimension will be subject to the installation drawing
Key Components
CCD Camera System
- 5340 linear CCD camera with high precision for accurate identification and high-speed sorting
- Advanced CCD technology with Toshiba sensor and American process chip
Self-developed Solenoid Valve
- Scientific mechanical ejector design ensures stable long-term operation
- High frequency valve offers low power consumption, durability, and easy maintenance
Adjustable LED Light Source
- Special light source supports ten million color configurations
- Adaptable for various material sizes without light source modification
Intelligent Computing Circuit
- High-performance, low-power integrated circuit with 5x processing improvement
User Interface
- Intuitive touch panel with easy operation
- Advanced FPGA technology detects defects as small as 0.04mm²
Packing & Delivery
- Full process visualization from manufacturing to shipment
- Factory visits welcome
Global Installations
European Customer Plant
Southeast Asia Customer Plant
South Asia Customer Plant
About ANHUI WENYAO
Founded in 2007, ANHUI WENYAO Optoelectronic Technology Co., Ltd specializes in designing and manufacturing high-tech optical color sorters for various applications including grains, nuts, dried foods, plastics, and minerals. We serve global markets across Asia, the Middle East, Europe, and Africa.
Through international partnerships and OEM services, we've developed advanced color sorting technologies that deliver superior quality worldwide. Our reputation extends across domestic, African, Middle-Eastern, and Southeast Asian markets.
Frequently Asked Questions
How to use the machine?
We provide installation instructions/videos and engineer training for operators.
How long is the guarantee period?
One year warranty with lifelong software upgrades.

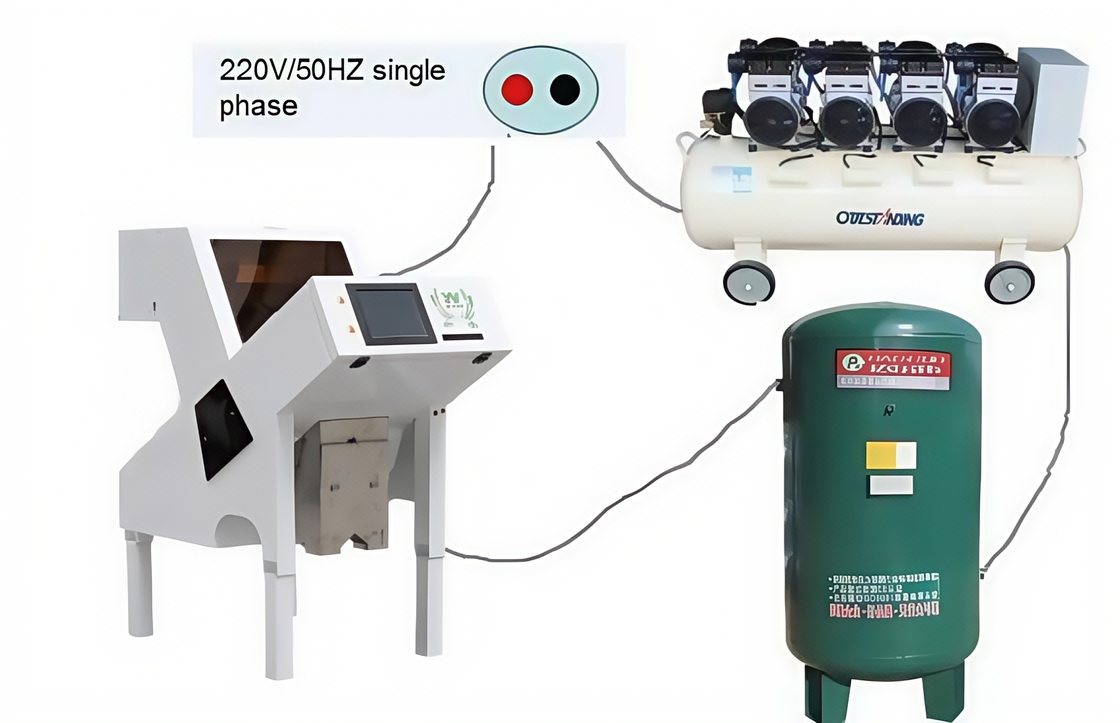

Can you supply the air compressor, air tank and air filters?
Yes, our standard offer includes these components with the color sorter.
Is overseas service available?
Yes, our engineers can travel internationally when required.
How to calculate installation personnel cost?
For installation services, customers cover the engineer's visa, airfare, accommodation, and local transportation.
