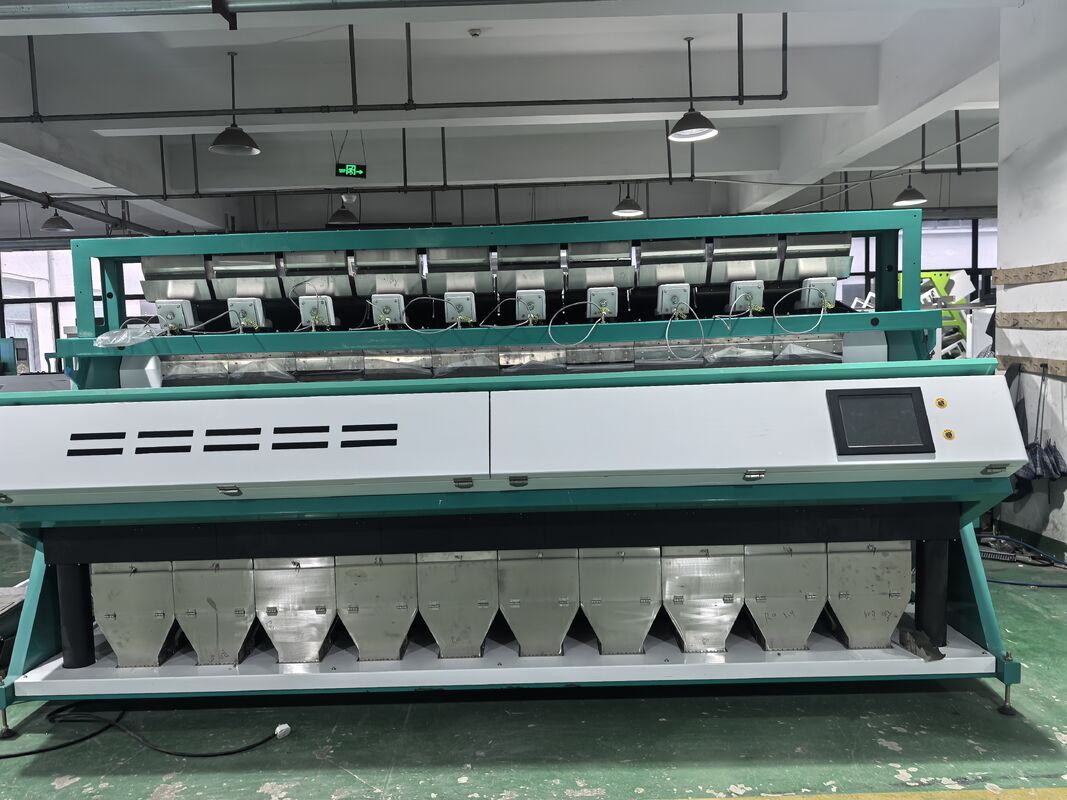

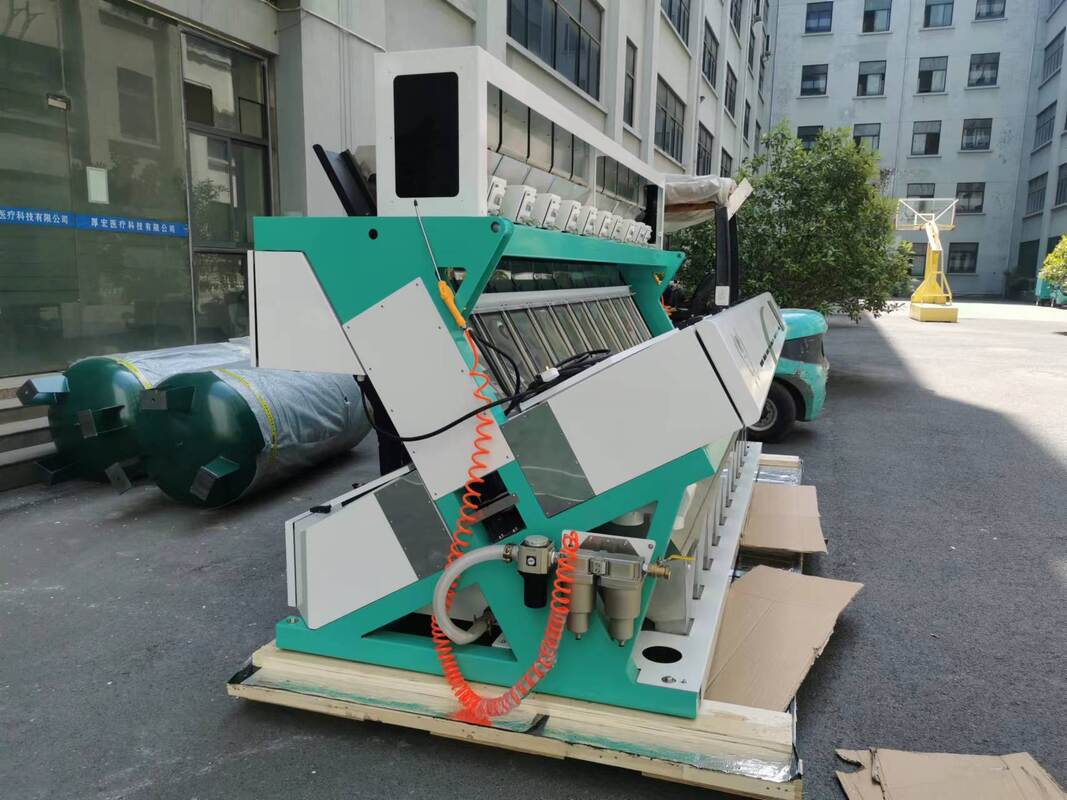

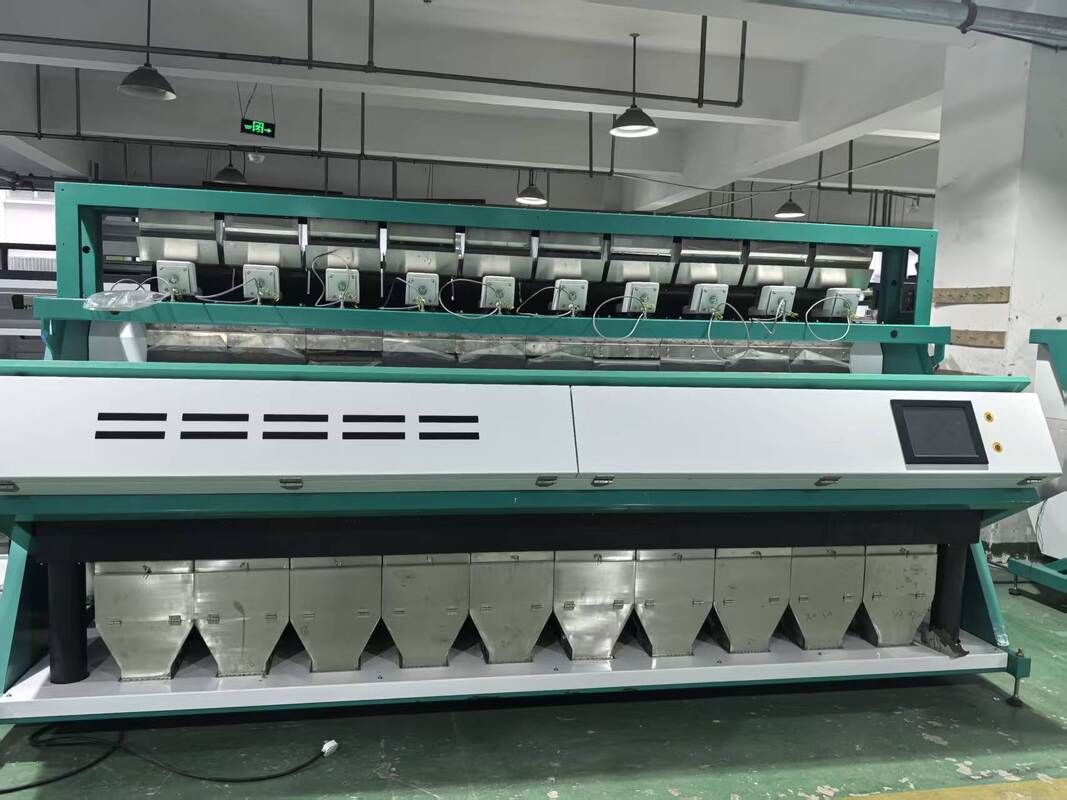

Wenyao PP PET ABS PVC Flakes Grading Cleaning and Sorting Equipment Plastic Color Sorter Optical Machine
| Details as following |
| MODEL |
WYCS10-640 |
| Chutes(channels) |
10(640) |
| Sorting accuracy(%) |
≥99.9 |
| Carryover rate (bad:good) |
≥30:1 |
| Output(T/h) |
4-6 |
| Voltage |
180-240V/50Hz |
| Power supply(kw) |
6.5 |
| Work Air Pressure(Mpa) |
0.2-0.3 |
| Air consumption(L/min) |
2600-5000 |
| Air supply(Mpa) |
0.6--0.8 |
| Dimension(L*W*H) mm |
3630*1545*1860 |
| Weight(kgs) |
1800 |
| Package |
Plywood case |
| Package Size mm |
3764*1554*1871 |
Color sorter work principle:
A plastic color sorter is an advanced optical sorting machine designed to automatically separate plastic materials based on color differences. Utilizing high-resolution cameras or sensors, it scans individual plastic items (such as flakes, pellets, or whole pieces) on a production line. The system analyzes the color data in real time, comparing it to pre-set color standards, and then uses precisely timed air jets or mechanical diverters to eject undesired or off-color particles. This technology ensures high-purity plastic output, improves recycling efficiency, reduces manual labor, and enhances the quality of sorted plastic for further processing or reuse. It is widely applied in plastic recycling, manufacturing, and resource recovery industries.
Examples of color sorting:
Feature :
- Latest UHD imaging and analysis technology,high-speed processing,accurate identification.
- High level AI self-learning function,one-key automation,user friendly interface,easy operation.
- Multi-function,multi-purpose,widely used for all kinds of rice,grain,nut,plastic etc.
- Combined with color sorting,shape sorting and size sorting,to sort difficult impurities like micro color difference,tiny bad spot etc.
- Clound computing,massive dated analysis,multi-camera identification,high accuracy.
- Simple effective-installation&start-up&commissioning services:remote teaching and guidance via live video online through interest to worldwide.
- Ampere Altra processor from USA ,Samsung from Korea,Toshiba Camera Core From Japan,Top Specification.
- Wide viewing angle,Wide-spectrum,can sort all kinds of impurities and tiny bad spot etc.
- High-end machines can realize remote control, multi-screen interaction and non-contact control.
Package :
FAQ:
1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
5.Will you accept L/C as payment?
L/C ,T/T is OK.
Customer's Site :
Why choosing Wenyao
1. Over 20 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 100 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
Catalogue:
