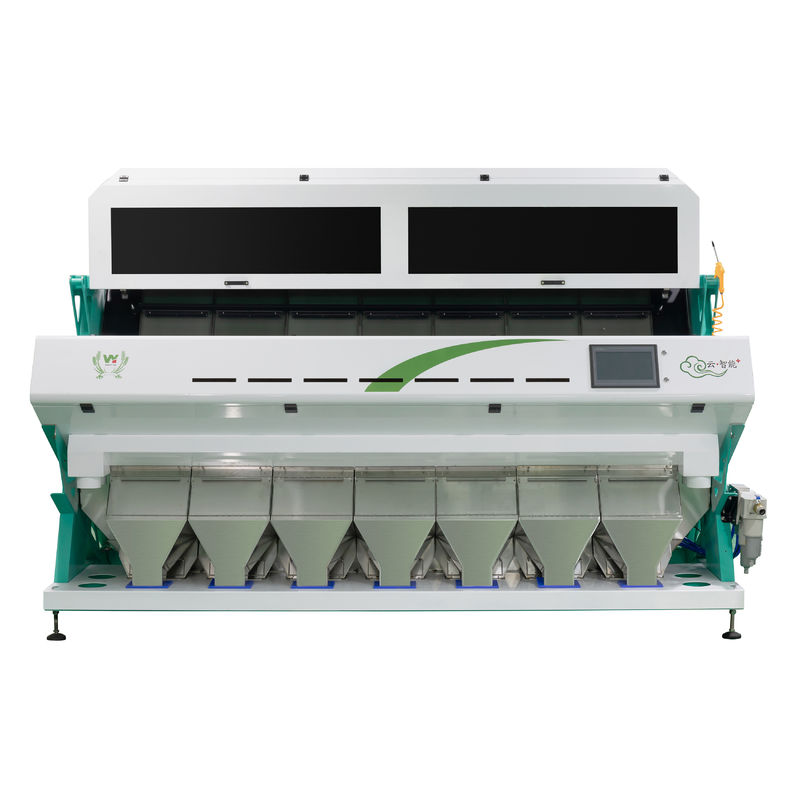

WYCS7-448 Dried Onion Color Sorter Dried Onion Vegetable Sorting Machine Made In Chian Hefei
WYCS7-448 Dried Onion Vegetable Sorting Machine Made In Chian Hefei Machine Function:
Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber
Technical Parameters:
| MODEL | WYCS7-448 |
| Chutes/Channels | 7/448 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 3.9kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <3.8M3/Min |
| Weight | 1350kg |
| Diamension(L*W*H) | 2905*1540*1852mm |
Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
Examples of color sorting:
FAQ:
A). How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.
B). Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
C). How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
D). How about after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
