Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS4-256
Contact Us
Candle Nut Color Sorter chestnut Separator Selector Machine Sorting for Nut
Technical Parameters:
| MODEL | WYCS4-256 |
| Chutes/Channels | 4/256 |
| Throughput(t/h) | 2-3t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.3kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.4M3/Min |
| Weight | 750kg |
| Diamension(L*W*H) | 1855*1540*1852mm |
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.
Our Advantage:
1.Over 14 years experiences.focus on sorter machine.The biggest sorter machine factory.
2.After-sales service guarantee: We have a professional after-sales service team, one-on-one customer service to help customers install and
3.We have service station, cooperate reseller in more than 100 countries.
4.Quality assurance of raw materials: The raw materials we purchase are certified qualified products.
Technical Parameters of Color Sorter Machine
RGB full color tri-chromatic CCD image acquisition system. High camera resolution 5340 pixel identifying tiny defects up to 0.01mm2. High quality ejector with 5-10 billion ejections life low air consumption. Most unique intelligent LED with cold shadowless light source and super long life span, high lighting efficiency. Strong industry-grade digitization processor, image acquisition and processing in high speed, consistency of signal path and signal reliability is secured. International high-end full-color line scan technology, DSP+FPGA processing the international forefront of technology, combining a variety of colors and shapes model complex algorithms, to provide "color selection shape selected" function for different materials.
Customer Service:
Color Sorters are machines used on the production lines in bulk food processing and other industries. They sort materials by their colors or shapes, If it is found that there are unqualified materials or impurities in the materials, the ejector will blow out the rejects in the hopper.
In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4 … 0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.
Application of Color Sorter Machine :
The automatic color sorting machine can directly replace the manual sorting work to achieve the purpose of improving production efficiency, improving accuracy and reducing labor, and reducing enterprise operating costs and labor costs. The automatic sorting machine can select product combinations with different weights, sizes, colors and other characteristics to select the working line, eliminating the financial and time of manual operation, and more accurate and precise. Widely used in food sorting, fruit sorting, food sorting, ore sorting, garbage sorting and other industrial product sorting industries.
Sorting Effect:

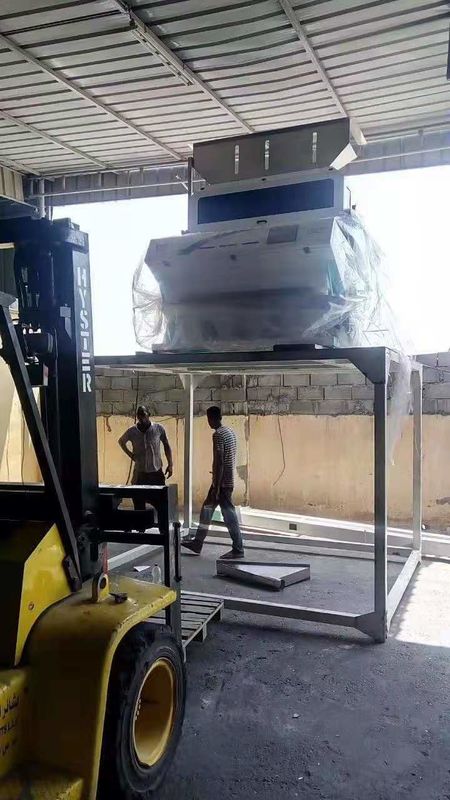

Customer's Site :
