Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE & ISO9001
Model Number:
WYCS1-32
Contact Us
Video
Video

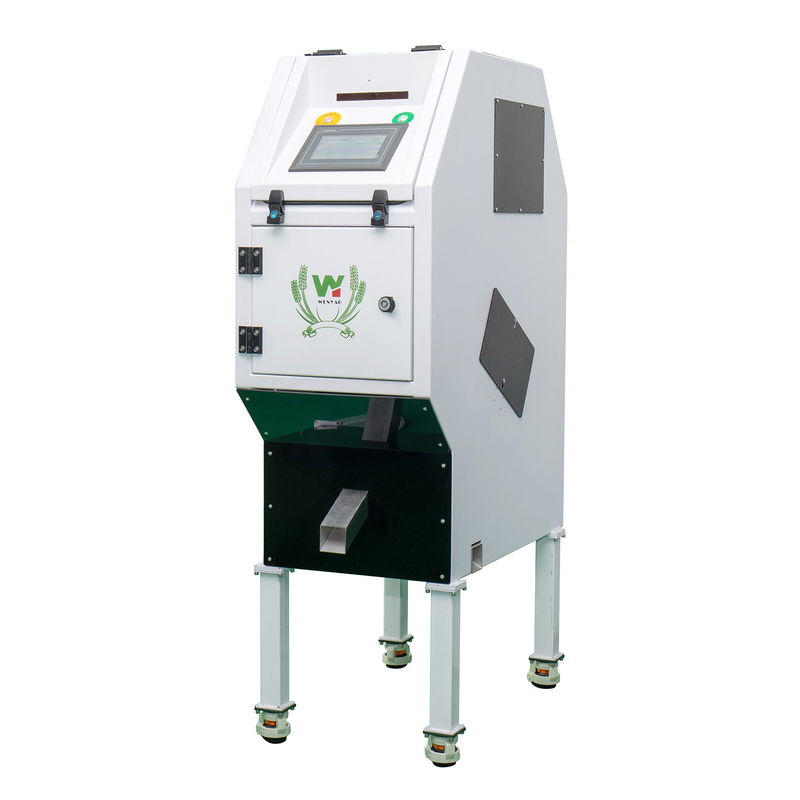

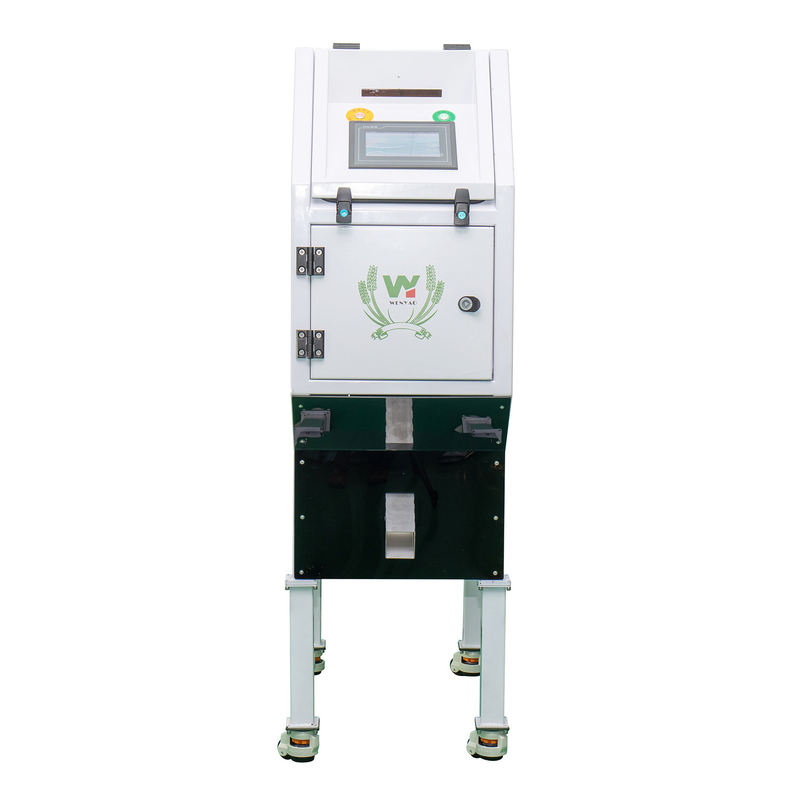

Mini Coffee Bean Color Sorter Green / Roasted Coffee Bean Sorting / Grading Machine With High Accuracy
Mini wenyao color sorter working principle:
According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.
Steps:
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters:
| MODEL | WYCS1-32 |
| Chutes/Channels | 1/32 |
| Throughput(t/h) | 1-2t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.3M3/Min |
| Weight | 180kg |
| Diamension(L*W*H) | 460*895*1356mm |
Features:
1.Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
2.Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
3.Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
4.Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.
Application Fields:
This product can be used in agriculture, food, oil, chemical, medicine and other industries, especially suitable for tea, sesame, beans, seeds, raisins, yellow rice, glass, plastic, cinder, ore, peanuts, cottonseed, wolfberry, prickly ash and other color.
Packing delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.Package size will depend on each model size.
Delivery Details:Within 15 - 20 days after received deposit.
Our service:
Before sale:no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Sorting effects of coffee bean:
Other Application Fields:
Custom's site:
Coutact us:
