Place of Origin:
China
Brand Name:
WENYAO
Certification:
CE ISO9001
Model Number:
WYCS1-64
Contact Us

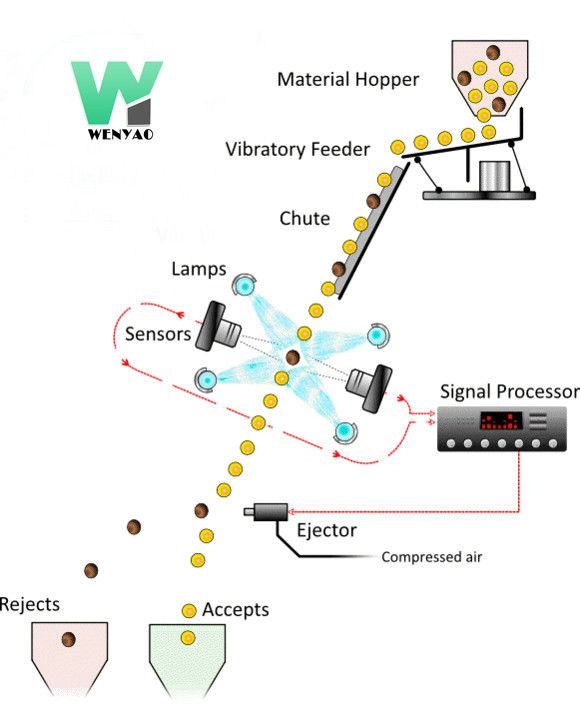

Wenyao Color Sorting Machine Working Principle
When color sorter is working, the materials in hopper is uniformly distributed into each chute by the vibrator. While the materials are dropping,the CCD signal is running. If the cameras catch there are unqualified materials or impurities in the materials, the ejector will blow the defective goods into the hopper.
Technical Parameters:
| MODEL | WYCS1-64 |
| Chutes/Channels | 1/64 |
| Throughput(t/h) | 1 Ton /H |
| Sorting Aaccuracy | ≥99.99% |
| Power | 0.75kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <0.6M3/Min |
| Weight | 280kg |
| Diamension(L*W*H) | 780*1527*1543mm |
Features:

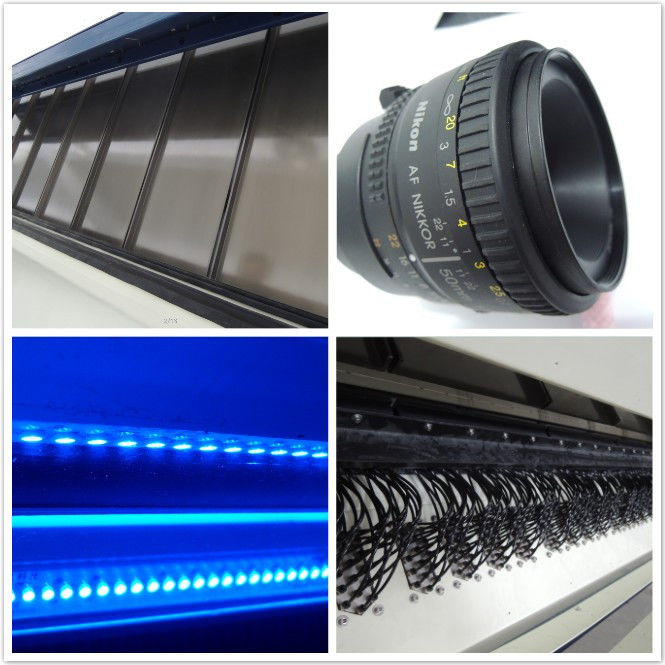

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►5400Pixel CCD image acquisition system with high speed chip.
High Quality Peeled Garlic Sorting Machine Garlic Color Sorter Garlic Separatiing Machine
Modern medical research proves, garlic collects 100 kinds of officinal use and health care component at a body, contain sulfur volatile 43 kinds among them, sulfide sulfonic acid (be like allicin) ester kind 13 kinds, amino acid 9 kinds, peptide kind 8 kinds, glucoside kind 12 kinds, enzyme kind 11 kinds. In addition, allicin is a unique component of garlic. When it enters the blood, it becomes allicin, which can kill typhoid bacillus, dysentery bacillus and influenza viruses in an instant even if diluted 100,000 times. Allicin combined with vitamin B1 can produce thiamine garlic, with the elimination of fatigue, enhance physical strength of the miracle.
Examples Of Color Sorting
Our multi-functional color sorter can be used to sort rice, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. The following pictures are the color sorting performance of rice, soybean,wheat, peanuts and almond.If you want to sort other materials, please Contact our customer service, they will send you the corresponding pictures and videos.
The Catalogue Of Wenyao Color Sorter Machine
FAQ:
1. How to install and use the machine?
We will supply the Installating instructions or videos for the clinets.If needful, our engineers will help the clients to train the operators.
2. How long about the guarantee period?
2 years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.
4. what about the after sales service?
Yes, By videos or by remote control or local service or engineers could go abroad when required.
