Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
CE and ISO9001
Model Number:
6-6SXZ-320and WYCS5-320
Contact Us
Hot Selling Multifunction Sea Salt Color Sorter Machine For Dark Salt Separating With Spare Parts
1.WENYAO Salt Color Sorter Machine Working Principle
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.
2.Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg-910kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3.CCD Color Sorter Machine Core Parts:
1.Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2.America FPGA processing chip.
3.Japan Toshiba CCD sensor.
4.Metal ejectors/valves with more than one billion lifetime.
5.Lens:Japan Nikon Lens .
6.Filter: Japan CKD filter.
7.Power source:Taiwan Meanwell
8.All LED light source,more longer lifetime and save power.
9.Flexem Humanized touch screen
4.Examples of Color Sorting Examples
5.FAQ
Welcome. Pls feel free to send us an email here. You will get our reply within 24 hours
Yes, please advise the size and Pantone Code of the logo.
7-15 days for order quantity 1 set; For more than 3 sets, usually 20 days.
Yes, for the order quantity more than 2 sets, please contact us to get the best price.
Yes, each step of production and finished products will be came out inspection by QC department before shipping.

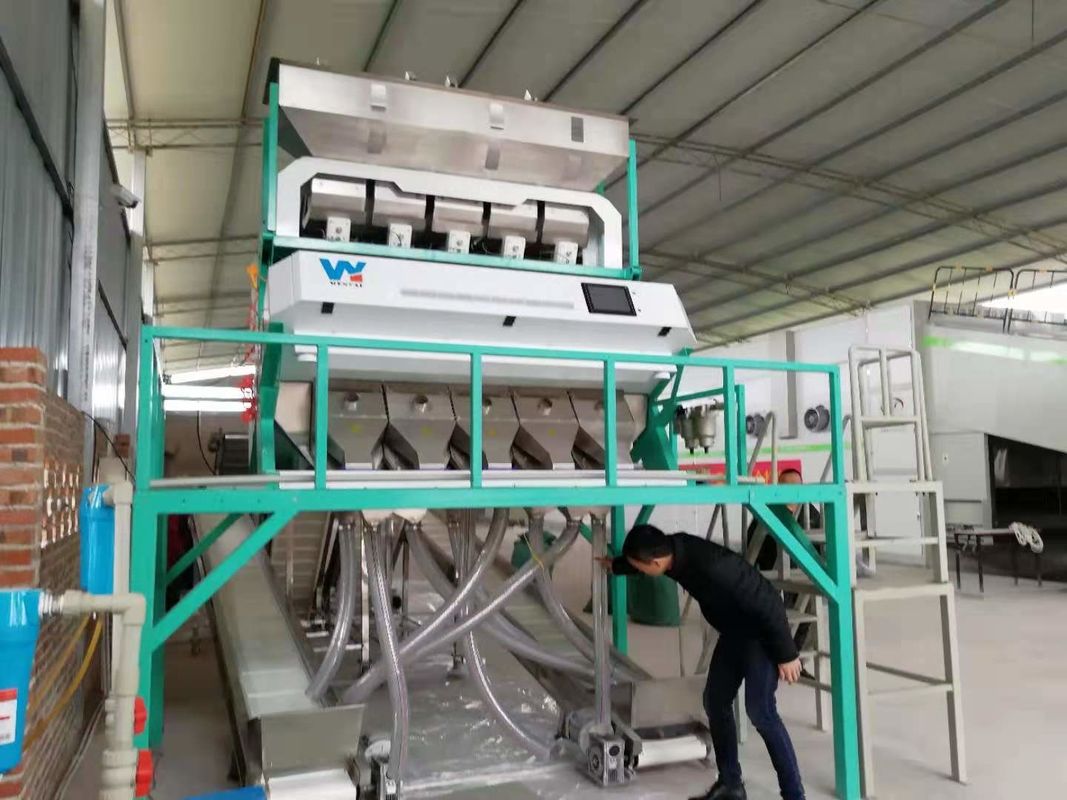

6.Real Photo of WYCS5-320 in customer site
7.Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
