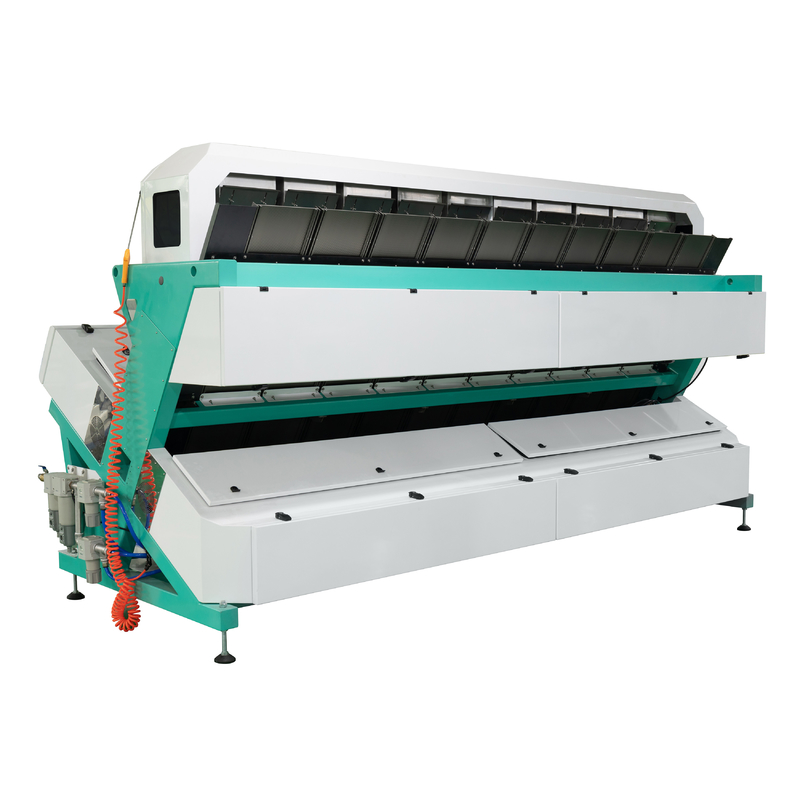

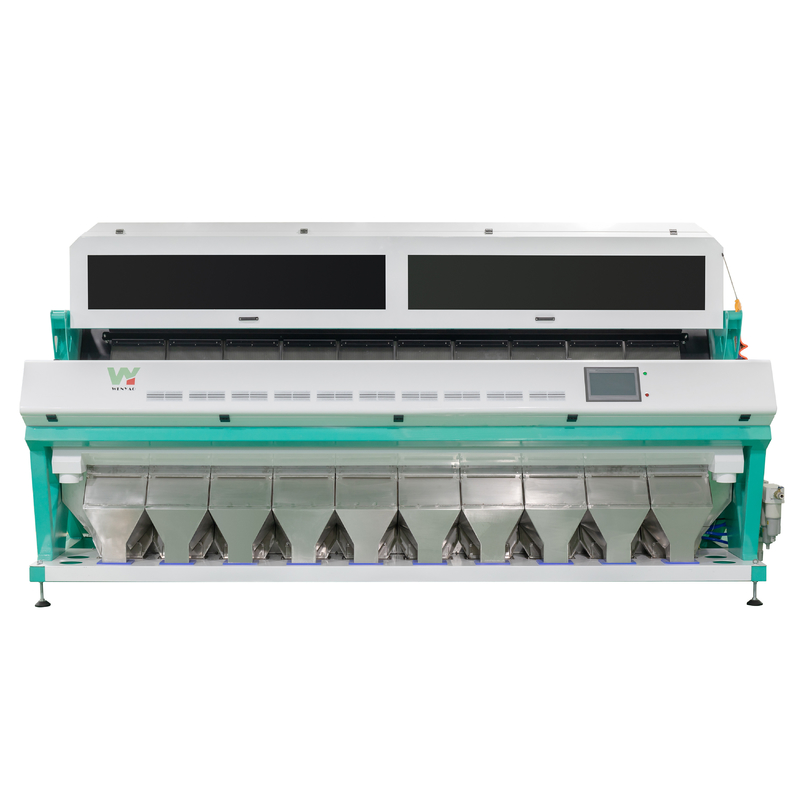

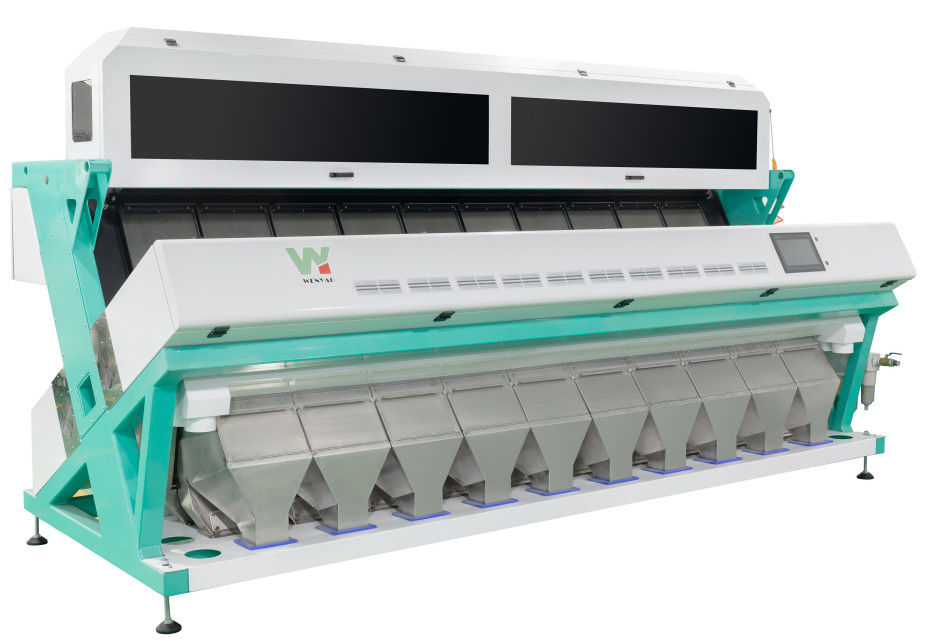

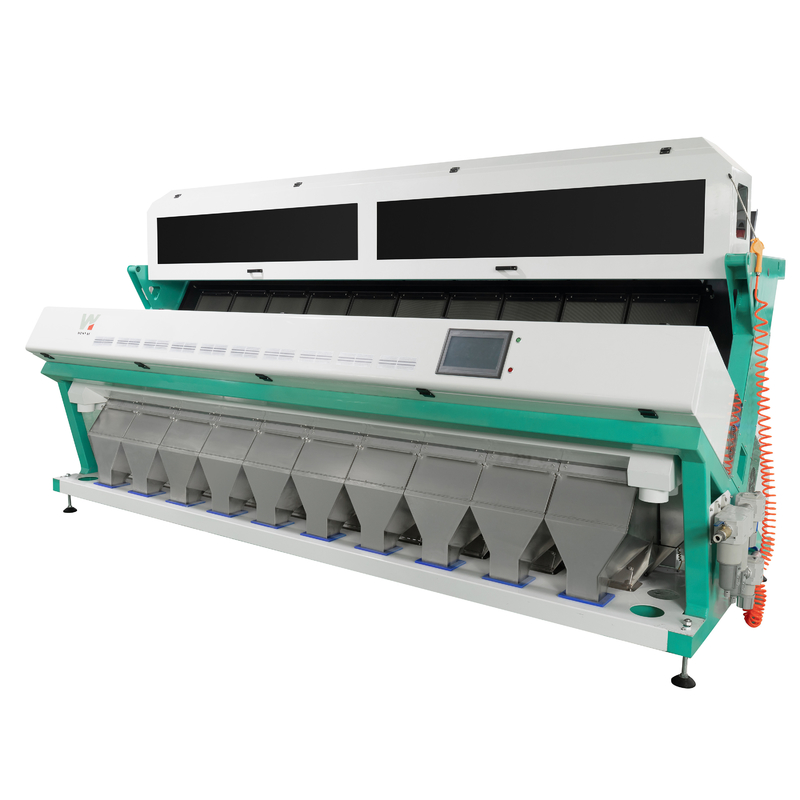

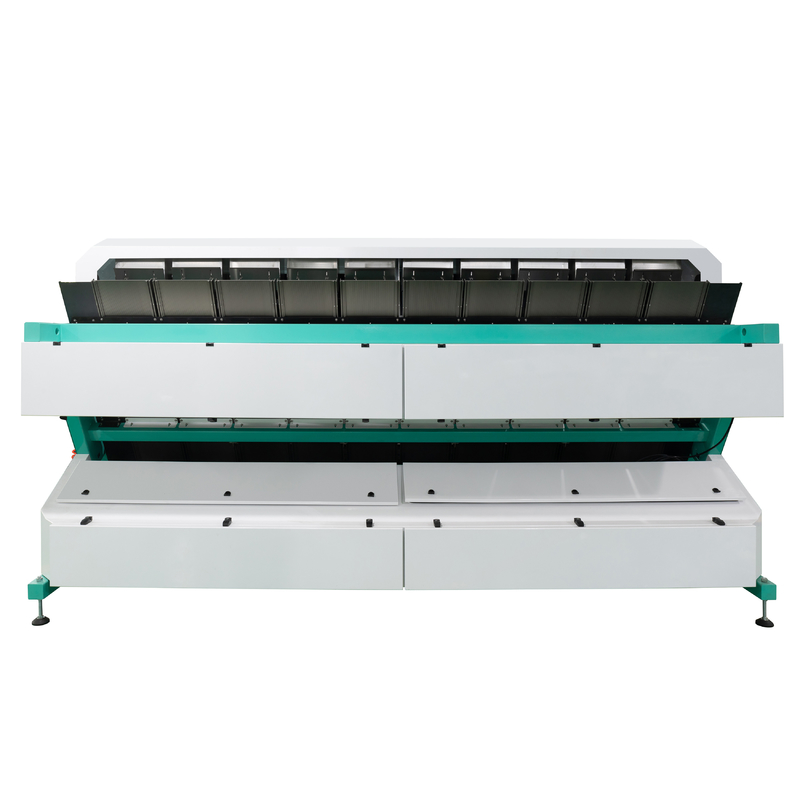

Wenyao Advanced 10 Chutes Optical Ccd Wheat Color Sorter Machine Color Selector
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products.
Wenyao color sorter working principle:
Input product is loaded into the in-feed hopper , it moves along the vibrating plate , until it flows on to a sloping chute, where it is individually checked at 360° and sorted by RGB Full color cameras .
Depending on the signals received by the optical device, the sorter's software controls the pneumatic device, which physically separates the unwanted products out of the conforming ones, which naturally reach their discharging hopper.
Wenyao color sorter Features:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.
※ High frequency solenoid valve , special for color sorting. high sorting accuracy.
Wenyao color sorter technical parameters:
| MODEL |
WYCS10-640 |
| Chutes/Channels |
10/640 |
| Throughput(t/h) |
10-15t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
6.5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<5M3/Min |
| Weight |
1800kg |
| Diamension(L*W*H) |
3750*1540*1852mm |
Wenyao color sorter application:
Rice:rice,millet,parboil rice,black rice,red rice,brown rice,broken rice,glutinous rice,paddygolden rice,and so on.
Grains:corn,sesame,oat,barley,rye,quinoa,wheat,buckwheat and so on.
Nuts:Peanut, walnut, almond, pine nut, hazelnut, white fruit, cashew, hazelnut,chestnut, pistachio, macadamia nut ,pecan,candle nut,areca nut
Seeds:sunflower seed, pumpkin seed,watermelon seed,lotus, sesame,hump seed,flax seed,pepper,coriander seed,veget seed and so on
Beans:red beans,kidney beans,coffee bean,black beans,mung beans,broad beans,chickpea,lentil,white bean,pea and so on
Industries:plastic,Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic,electronic component,industrial salt,quartz sand,metal,glass
tea leaf:black tea,green tea,herbal tea,flower petal tea,ceylon tea,oolong tea.
Others:raisins,wolfberry,pepper,chili,spice,fish,shrimp and so on.
Examples of color sorting:
Note:The machine support more than 2500 materials ,welcome to inquire us for more details.
Our service:
Before sale:
no whether where you are,no whether when it is,we will provide help you to know our machine service within 7*24h.
After Sale :
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
Parking and delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Delivery Details:
Within 15 - 20 days after received the 30% deposit.
