Factory Price High Quality Raisin Granules Color Sorting Machine With Iso9001 Certificates
Company profile
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is located in "The city of science and education" reputation, - Hefei City Anhui China. The company is located in the high-end positioning Yaohai City Technology Industrial Park Is a comprehensive high-tech enterprise integrating scientific research, development, production, sales and service of CCD intelligent color sorter and near infrared color sorter. Mainly for the industry to provide high-end sorting, sorting and other equipment, has for many enterprises and individuals to provide professional, quality products and services.
What is color sorter?
Color Sorters are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
The rice sorting technology is according to the color differences of rice (husked paddy) materials, using a high-resolution CCD optical sensor to separate different stones, black rice, etc. It is the final step after polishing rice with a rice polisher. Sorting machines improve product quality and add social benefits.
Product Description:

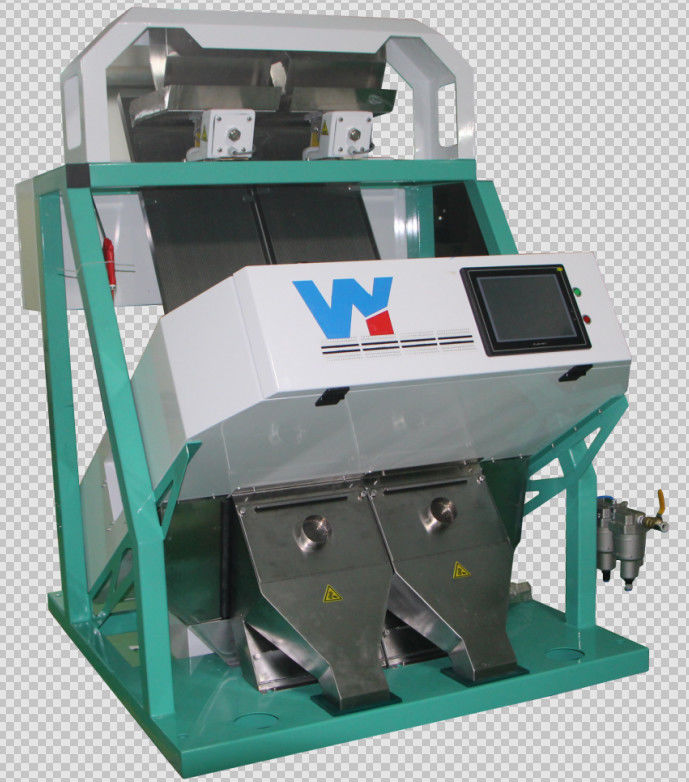

Machine name: Factory Price High Quality Raisin Granules Color Sorting Machine With Iso9001 Certificates
Function : Remove unqualified Raisin automatically
Working Principle: Optical principle, with latest CCD camera,LED light
Models: Different channel (size) machines available for choosing,depands on the required capacity.
Steps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
PARTS DETAILS:
Technical Parameters:
| MODEL |
WYCS2-128 |
| Chutes/Channels |
2/128 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<1.2M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
1250*1535*1832mm |
Examples of color sorting:
