High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels

High Throughput Lotus Seeds Color Sorter

CCD Camera Lotus Seeds Color Sorter

High Throughput Seeds Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS8-512

Contact Us

Request A Quote
Product Details
Color:
Blue Frame Or According To Customer Requests
Chutes:
8
Channels:
512
Sorting Accuracy(%):
≥99.99
Remote:
Wifi Remote Control
CCD:
Toshiba
Camera:
RGB Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Lotus Seeds Color Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
New
Throughput:
8-10t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

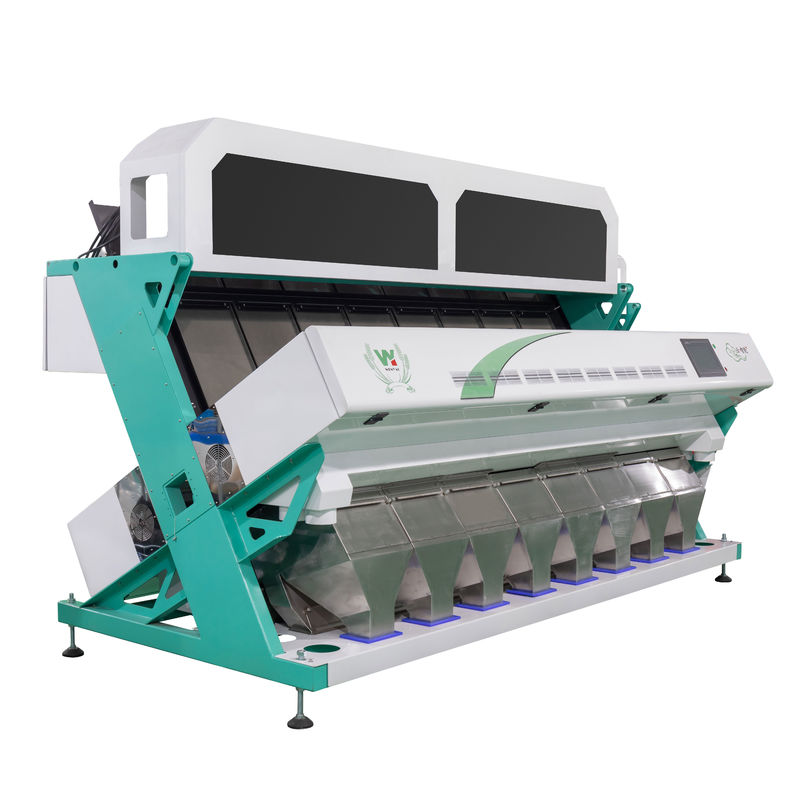

Wenyao High Throughput CCD Camera Lotus Seeds Color Sorter Sorting Separator Machine



Lotus seeds color sorter working principle:



High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 0



When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Lotus Seeds Color Sorter Technical Parameters:

MODEL WYCS8-512
Chutes/Channels 8/512
Throughput(t/h) 8-10t/h
Sorting Aaccuracy ≥99.99%
Power 5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1500kg
Diamension(L*W*H) 3025*1540*1852mm

Throughtput:Different impurity with different throughput.



Lotus seeds color sorter Features:

.

►Automatic computing and intelligent identification with high speed camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.

►Self design high frequency ejectors,It means high speed and accurate sorting performance.

►5400Pixel CCD image acquisition system with high speed chip.





Wenyao color sorter application:

Rice:rice,millet,parboil rice,black rice,red rice,brown rice,broken rice,glutinous rice,paddygolden rice,and so on.



Grains:corn,sesame,oat,barley,rye,quinoa,wheat,buckwheat and so on.



Nuts:Peanut, walnut, almond, pine nut, hazelnut, white fruit, cashew, hazelnut,chestnut, pistachio, macadamia nut ,pecan,candle nut,areca nut



Seeds:sunflower seed, pumpkin seed,watermelon seed,lotus, sesame,hump seed,flax seed,pepper,coriander seed,veget seed and so on



Beans:red beans,kidney beans,coffee bean,black beans,mung beans,broad beans,chickpea,lentil,white bean,pea and so on



Industries:plastic,Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic,electronic component,industrial salt,quartz sand,metal,glass

tea leaf:black tea,green tea,herbal tea,flower petal tea,ceylon tea,oolong tea.



Others:raisins,wolfberry,pepper,chili,spice,fish,shrimp and so on.





Our service:
Before sale:

We will help you know ahout our color sorter,meets your special requirement according to actual condition.



After Sale :

1.Provide free training,consulting and technical support for users;
2.Provide personalized programs to the demands of customers;
3.Upgrade software for free for a life time;
4.Provide free warranty service for one year(except the wearing spare parts);
5.Provide 7*24 hours consultation and urgent servicce for users



Examples of color sorting:

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 1











High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 2

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 3

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 4

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 5

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 6

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 7

High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 8







High Throughput Lotus Seeds Color Sorter CCD Camera 512 Channels 9
