Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light

Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light

50Hz Chickpea Color Sorter

220V Chickpea Color Sorter

LED Light chickpea color sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS8-512

Contact Us

Request A Quote
Product Details
Color:
Blue Frame Or According To Customer Requests
Chutes:
8
Channels:
512
Sorting Accuracy(%):
≥99.99
Remote:
Wifi Remote Control
CCD:
Toshiba Japan
Camera:
RGB CCD Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Chickpea Color Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
New
Throughput:
4-5t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package Packing size(L*W*H):3.35*1.72*2.05M
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Wenyao 220V 50Hz Chickpea Color Sorter Sorting Separator Selector Machine​



Chickpea color sorter working principle:



Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 0



When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.



Chickpea Color Sorter Technical Parameters:

MODEL WYCS8-512
Chutes/Channels 8/512
Throughput(t/h) 4-5t/h
Sorting Aaccuracy ≥99.99%
Power 5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <4M3/Min
Weight 1500kg
Diamension(L*W*H) 3025*1540*1852mm

Throughtput:Different impurity with different throughput.



Chickpea color sorter features:
.
►Automatic computing and intelligent identification with 5400 pixels CCD camera.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to use touch screen in English,Spanish,German,Russian and so on more than 20 languages.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.


Advantage:



1.Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.



2.Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.



3.Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience



4.Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.



Examples of color sorting:



Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 1


Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 2





Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 3



Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 4

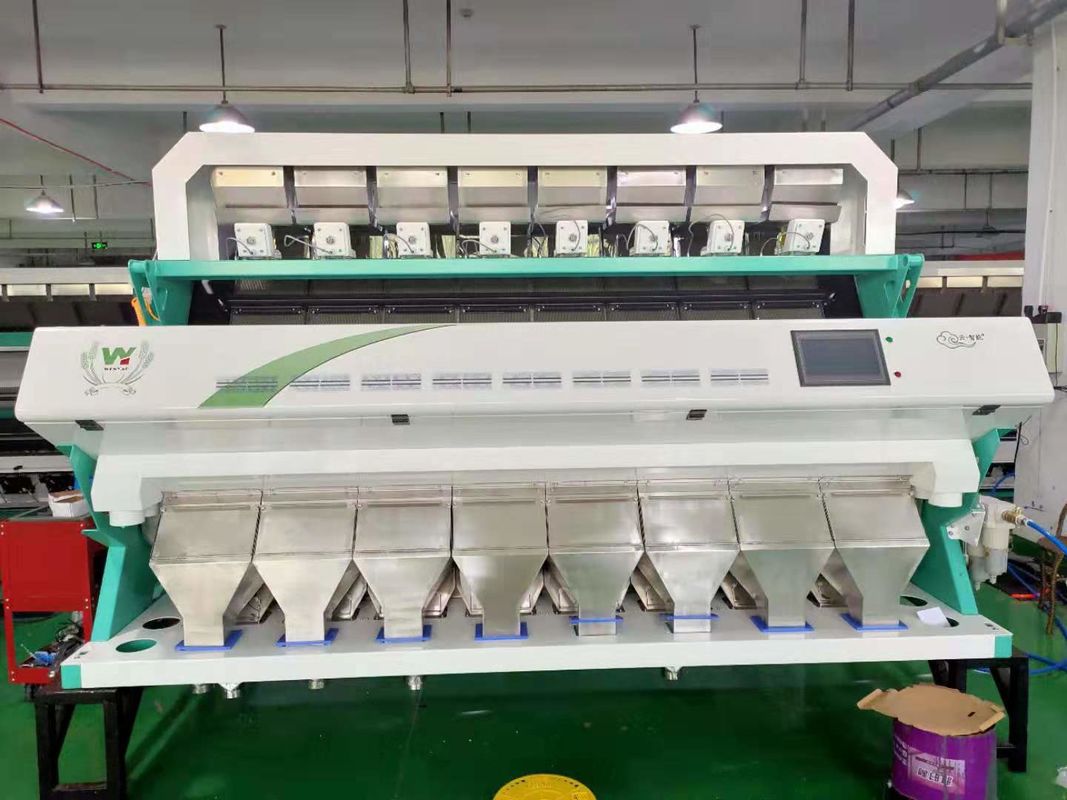

Customer site:

Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 5
Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 6
Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 7
Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 8
Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 9

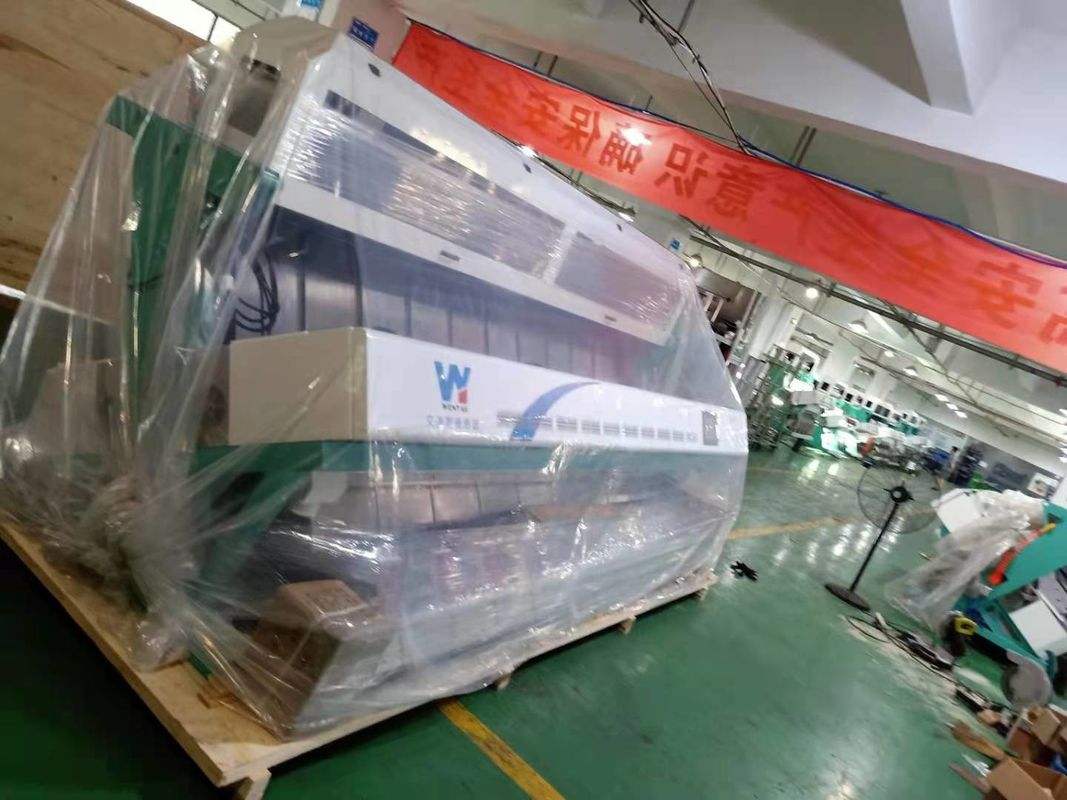

Delivery:
Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 10

Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 11



How to get the correct size and price for wenyao color sorter machine?


Step 1.Which kinds of the material are you planning to sort by color sorter machine?


Step 2.How many capacity(output) demand for the raw materials per hour?


Step 3.In order to know the impurity ratio of raw materials which are needed to be sorted,

please send us 3 pictures as following:


1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)



Step4. Our sales will give your professional suggestions



Wenyao 220V 50Hz Chickpea Color Sorter Low temperature LED light 12
