Place of Origin:
Hefei China
Brand Name:
WENYAO
Certification:
CE& ISO9001
Model Number:
6-6SXZ-320 or WYCS5-320
Contact Us
1.WENYAO Rosehip Color Sorter Machine Working Principle
The selected material enters the machine from the hopper at the top, passes through the vibration of the vibrator device, slides down the channel, accelerates its descent into the observation area of the sorting room, and passes between the sensor and the background plate. Under the action of the light source, according to the intensity and color change of the light, the system generates output signals to drive the solenoid valve to blow out the different color particles into the waste material cavity of the receiving hopper, and the good selected material continue to fall into the finished product cavity of the receiving hopper, so as to achieve the purpose of selection.
2.Technical Parameters:
| MODEL | WYCS5-320 |
| Chutes/Channels | 5 / 320 |
| Throughput(kg/h) | 3000kg/h-4000kg/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 2.9kw |
| Power Voltage | 240V/50Hz or Customized |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <2.8M3/Min |
| Weight | 900kg-910kg |
| Diamension(L*W*H) | 2244*1540*1852mm |
3.CCD Color Sorter Machine Core Parts:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
4.Examples of Color Sorting Examples
5.FAQ
1. Can I get a discount?
Yes, for the order quantity more than 2 sets, please contact us to get the best price.
Yes, each step of production and finished products will be came out inspection by QC department before shipping.
Welcome. Pls feel free to send us an email here. You will get our reply within 24 hours
Yes, please advise the size and Pantone Code of the logo.
7-15 days for order quantity 1 set; For more than 3 sets, usually 20 days.

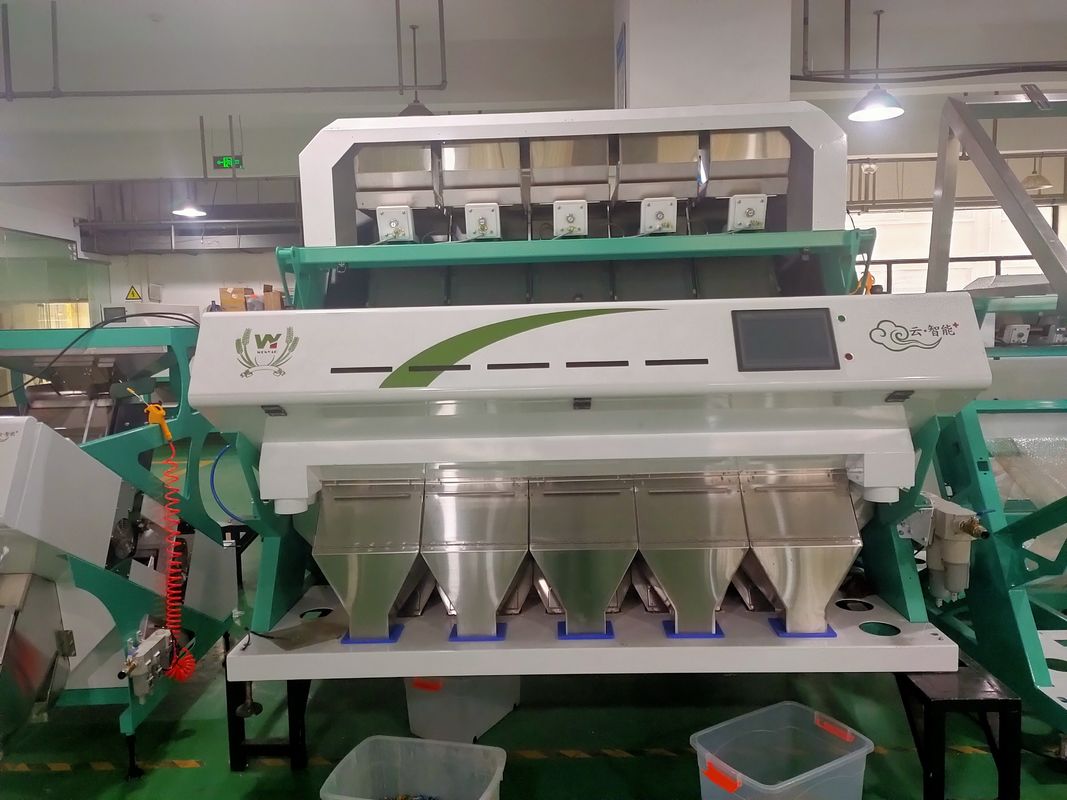

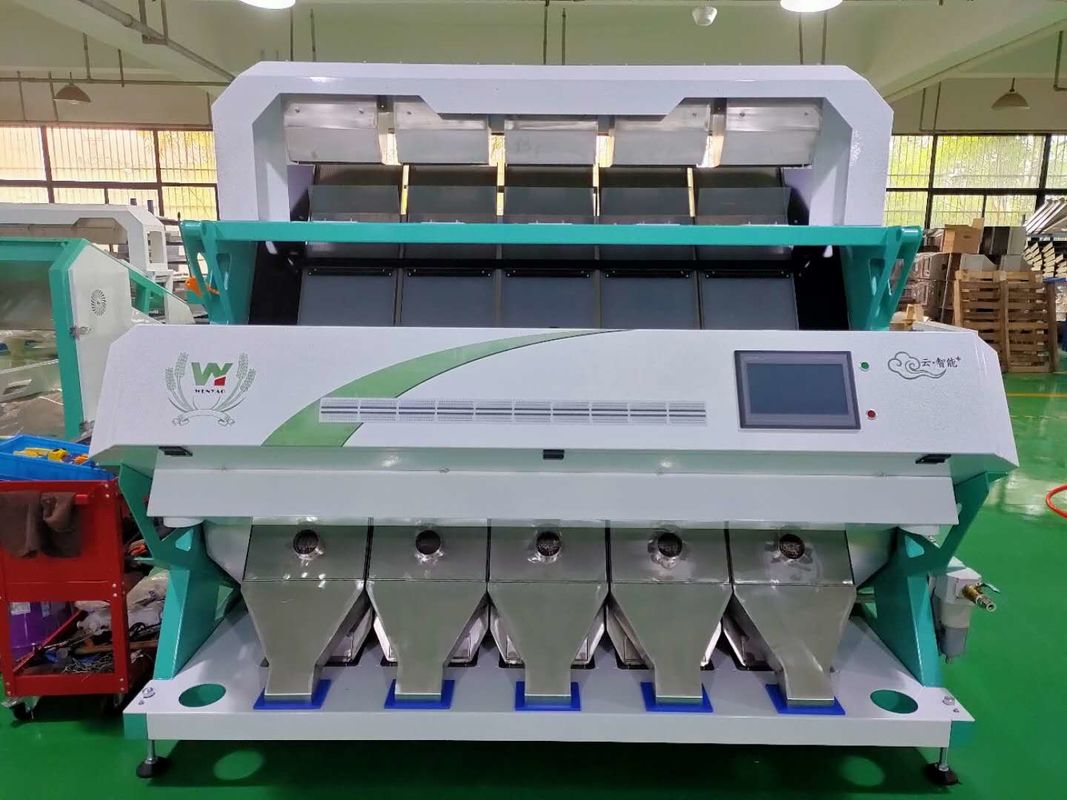

6.Real Photo of WYCS5-320 in customer site
7.Our Service:
Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.
From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.
Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.
8.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.
