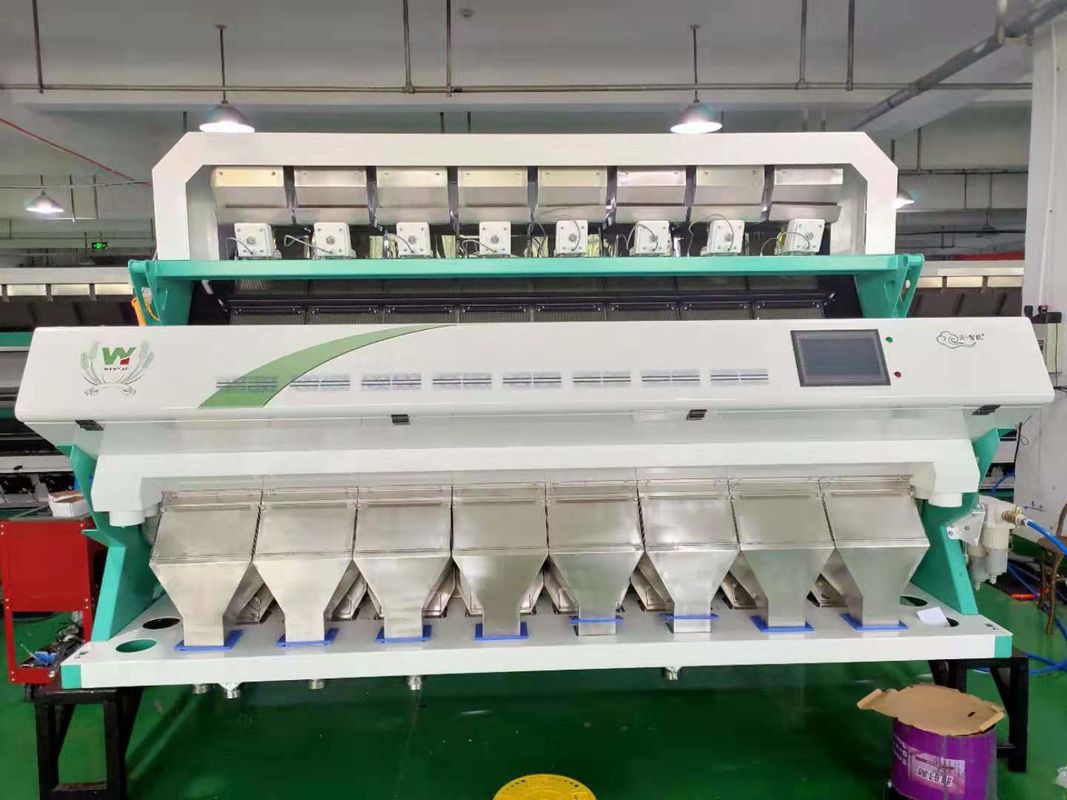

High Precision CCD Camera Red Beans Broad Kidney Beans Multifunction Color Sorter Separating Machine
What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.
Multifunction Beans color sorter working principle:
When wenyao color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
Colour sorters or color sorters (sometimes called optical sorters, digital sorters, or electronic colour sorters) are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.
Multifunction Beans Color Sorter Technical Parameters:
| MODEL |
WYCS8-512 |
| Chutes/Channels |
8/512 |
| Throughput(t/h) |
6-10t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
5kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<4M3/Min |
| Weight |
1500kg |
| Diamension(L*W*H) |
3025*1540*1852mm |
Throughtput:Different impurity with different throughput.
Multifunction Beans color sorter Features:
※ High speed, resolution ratio CCD camera, high speed line scan.
※ High speed, resolution ratio super clear imaging,color reduction well, no distortion.
※ High luminance LED resource, low power consumption, long life, reliable.
※ High frequency solenoid valve , special for color sorting. high sorting accuracy.
Examples of color sorting:
Customer site:
Delivery:
How can a color sorter benefit your business?
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.
Application:
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
