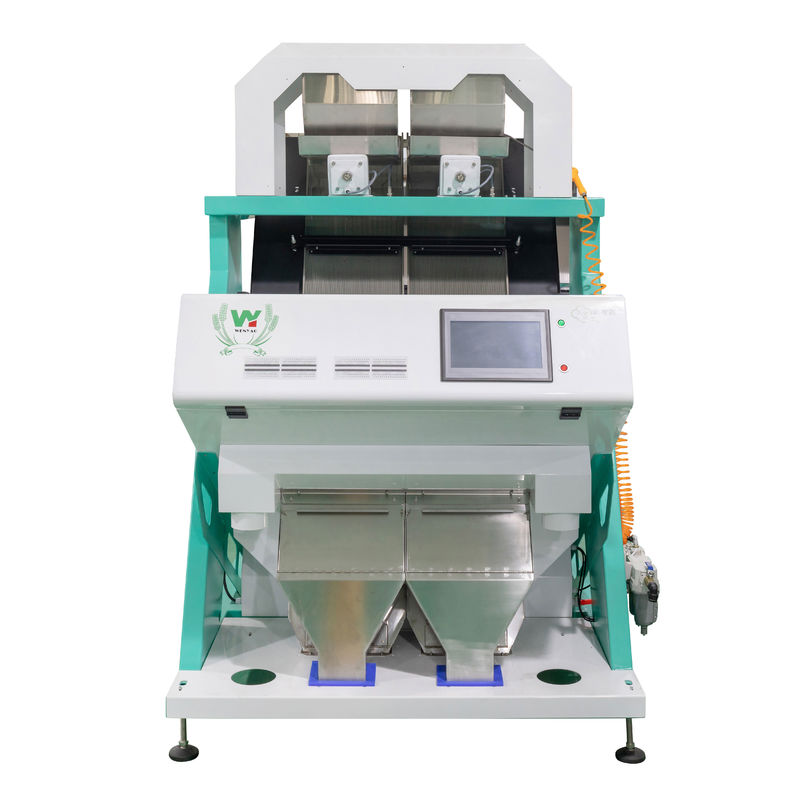

Toshiba CCD Sensor Plastic Color Sorting Machine Wih American Process Chip

Product Description:

Machine name:Industrial Machine Color Sorter For Plastic Flake,Plastic Granules,Glass,Salt,Rubber
Function : Remove unqualified Industrial materials automatically
Working Principle: Optical principle, with latest CCD camera,LED light
Models: Different channel (size) machines available for choosing,depands on the required capacity.

Steps

1. Raw Material are put into the machine from its feeding hopper on the top.

2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .

3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.

4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

PARTS DETAILS:

►5340 linear CCD camera with high precision allows high definition identification and high speed sorting.
Most advanced ccd technology can sort materials accurately.
Toshiba CCD sensor
American process chip
►Humanized touch panel, easy to learn, more convenient to operate.Concise touch panel helps customer operate easily and promptly.
High quality FPGA processing technology, defects of 0.04mm2 can be detected.
►Configuration of the special light source allows for ten million kinds of color sorting with a fully adjustable colourspectrum.

Materials can be sorted according to different configurations which is suitable for various sizes of sorting, no need to change the light source.
►We adopt imported original SMC Filter which has high reputation in color sorter accessories market.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.

Technical Parameters:

Examples of color sorting:

1. What can you provide if we buy the machine?
We will test here first(it is helpful if you can send us your material), after testing, we will send you a video to tech but if still have problem after you received it, we will send one engineer but it is paid.

2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.

3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.

4. Is oversea service available?
Yes, our engineers could go abroad when required. but the cost need to be covered by Customer.

5.How to calculate Installation personnel cost?
Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation .

Packing & Delivery
