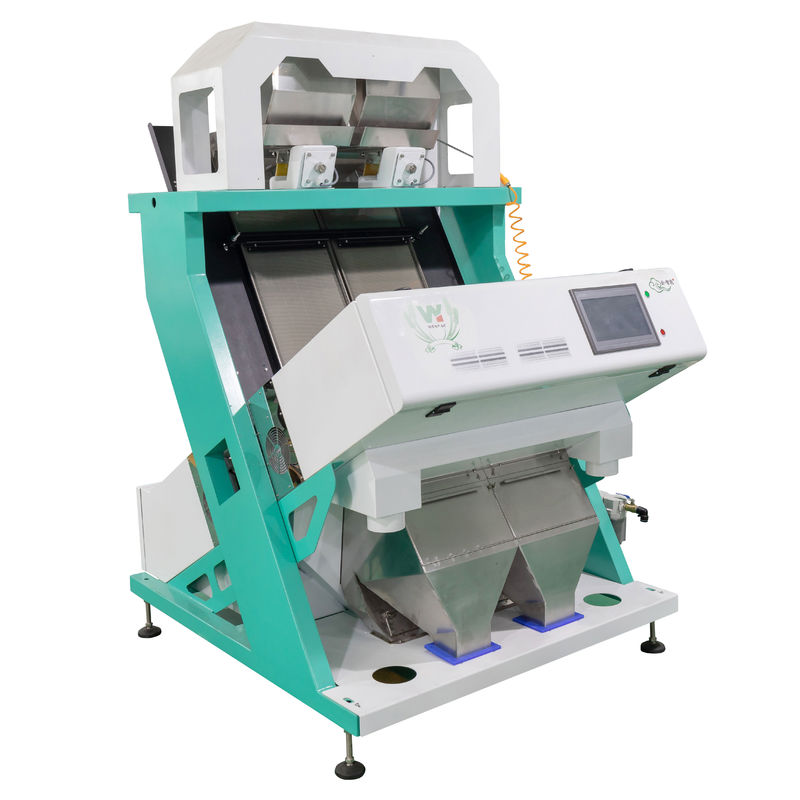

Almond Walnut Nut Coffee Bean Black Pepper Cashew Colour Sorting Machine
Company profile
Anhui WenYao Intelligent Photoelectric Technology Co., Ltd. is located in "The city of science and education" reputation, - Hefei City Anhui China. The company is located in the high-end positioning Yaohai City Technology Industrial Park Is a comprehensive high-tech enterprise integrating scientific research, development, production, sales and service of CCD intelligent color sorter and near infrared color sorter. Mainly for the industry to provide high-end sorting, sorting and other equipment, has for many enterprises and individuals to provide professional, quality products and services.
How to get the correct size and price for wenyao color sorting machine?
Please contact us according to the following questions if you need color sorter prices:
• Step 1.What kinds of the material are you planning to sort processing?
• Food materials:
• Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Steps
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters:
| MODEL |
WYCS2-128 |
| Chutes/Channels |
2/128 |
| Throughput(t/h) |
2-3t/h |
| Sorting Aaccuracy |
≥99.99% |
| Power |
1.1kw |
| Power Voltage |
180-240V/50Hz |
| Air Source Pressure |
0.6-0.8Mpa |
| Air Consumption |
<1.2M3/Min |
| Weight |
450kg |
| Diamension(L*W*H) |
1250*1535*1832mm |
Examples of color sorting:
1. What can you provide if we buy the machine?
We will test here first(it is helpful if you can send us your material), after testing, we will send you a video to tech but if still have problem after you received it, we will send one engineer but it is paid.
2. How long about the guarantee period?
Two year. And we supply lifelong software upgrade services for our customers.
3. Can you supply the air compressor, air tank and air filters?
Yes, we can provide above equipments, our standard offer includes color sorter machine with air compressor, air tank and filters.
4. Is oversea service available?
Yes, our engineers could go abroad when required. but the cost need to be covered by Customer.
5.How to calculate Installation personnel cost?
Normally we will finish the installation here and if customer have special request, we will send 1 Engineer to teach, but customer need to cover the cost, including round -trip transportation and accommodation .
Packaging & Shipping
1.Our company usually packs in standard export wooden case.
2.Transportation means by Air, by Sea or by Express and ect.
3.Shipment cost will depend on the destination, shipment wayand the weight of the goods.
4.You will get full feedback when your machine is on the way.
