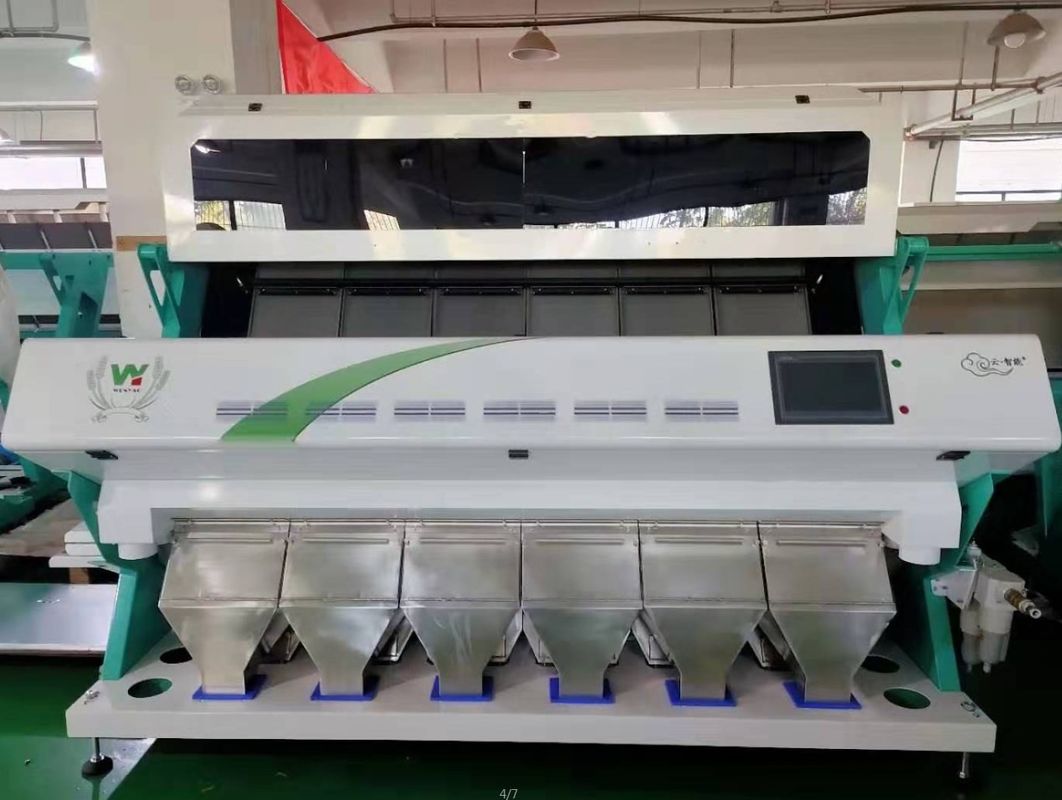

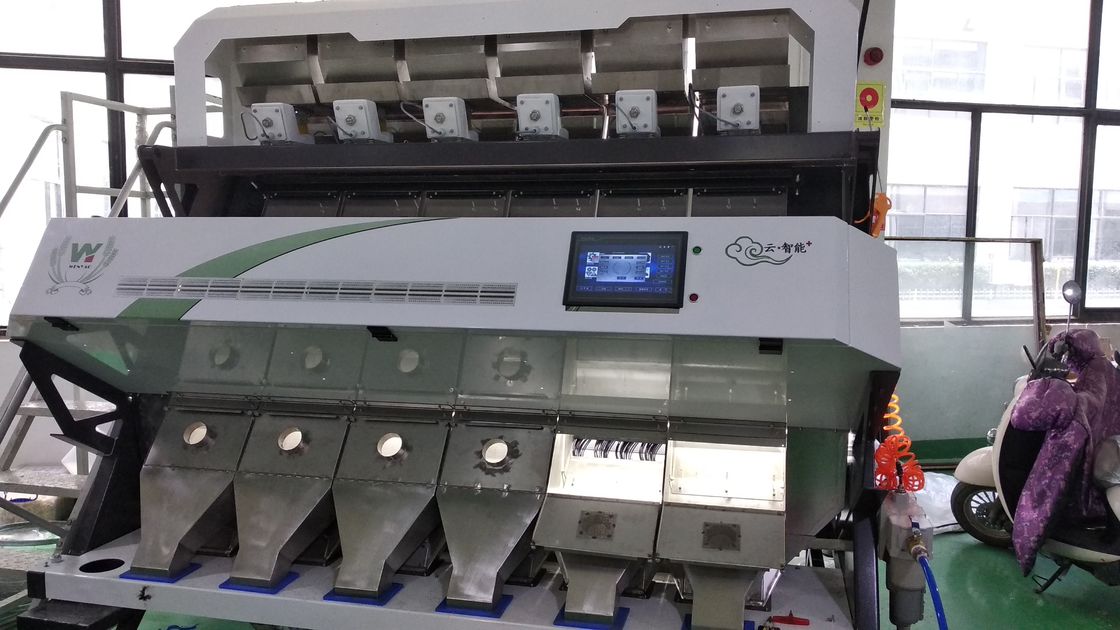

Good Quality Yellow Mealworm Color Sorting Machinery Multifunction Color Sorter Machine
Color Sorter characteristic:
1.Automatic computing and intelligent identification with high speed camera.
2.5400Pixel CCD image acquisition system with high speed chip.
3.Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4.Self design high frequency ejectors,It means high speed and accurate sorting performance.
5.Low temperature LED light source system,Cooling system to make the LED lamp more long life.
6.WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
7.Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
Camera
leading in the industry
International well-known brand customized lens
Import high-end 4096PIXEL CCD sensor
High-speed of scanning
The highest resolution comes to 0.02 mm²
High-frequency Solenoid Valve
leading in China
Service life more than 1 billion times.
Ultra high precision, leading in China
Intelligent Image Processing Algorithm
The combination of colors and shapes of
intelligent algorithm
Leading role in China.
Precise professional sorting solutions
Customized Lighting System
import purchasing
Advanced LED optical design system.
Various light sources are available to suit different materials.
Designated procurement of imported LED lamps,Higher stability, longer service life.
LED lighting system with thermal dissipation.
Data Transmission System
high-speed and stable
The COAX interface:
High anti-jamming, high transmission speed, high stability
Chip
innovative ultra high-speed processing
Based on SOC platform architecture;
Compared to DSP platform, the CPU improves 5 times, output processing improves 4 times, realizing the stability ,reliability and high-speed mass data processing.
Feed Trough
special technology
Application of high-quality 300mm ultra wide trough in China;
Special anodization treatment process ensures the required production in line with the international first-class level;
Cascading flat plate and narrow chute channel can be outfitted to sort a variety of material colors.
Human-Computer Interface
simple and easy to operate
More intelligent, easy operation, one button for professional sorting, remote debugging, remote diagnosis, remote software upgrading.
Examples of color sorting:

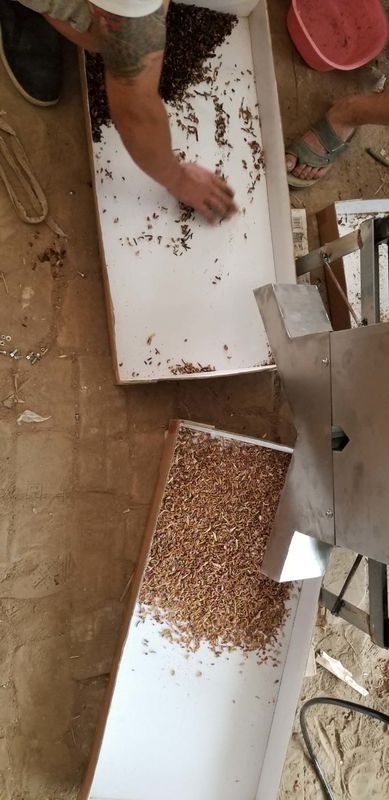

From Customer's Site :
This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.
Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.
