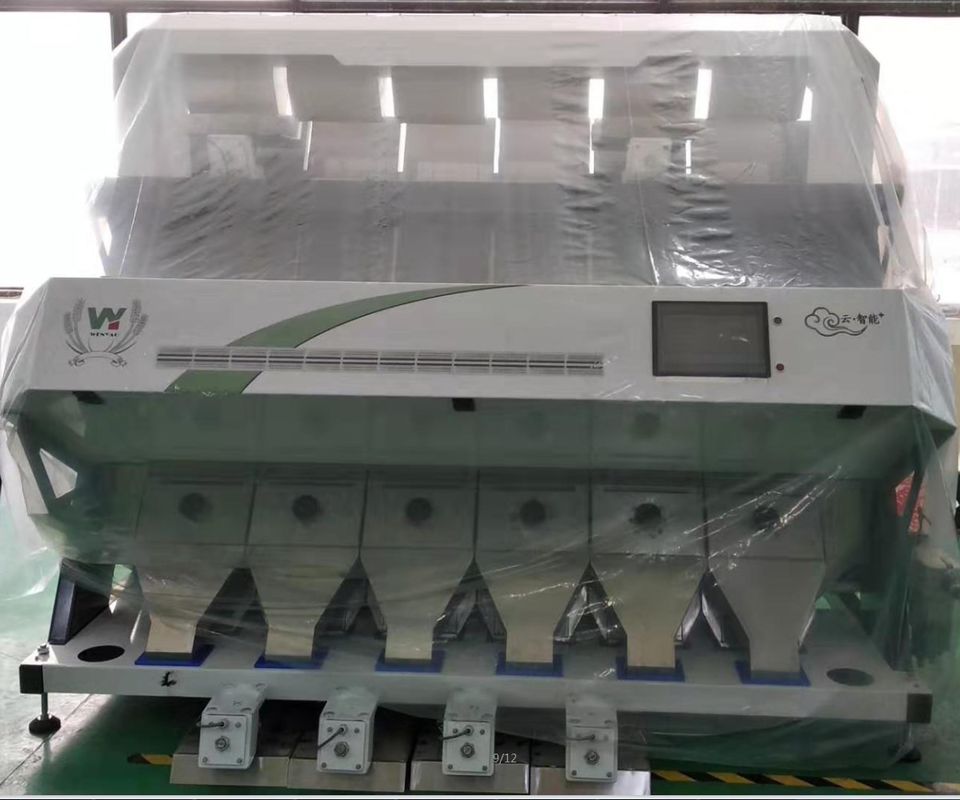

High Accuracy CCD Multifunction Color Sorter 2 Years Warranty

High Accuracy CCD Multifunction Color Sorter 2 Years Warranty

CCD Multifunction Color Sorter

High Accuracy Multifunction Color Sorter

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYCS6-384

Contact Us

Request A Quote
Product Details
Condition:
New
Function:
Color Sorting
Color:
White ,can Be Customize
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Field Installation,commissioning And Training,Overseas Service Center Available,Field Maintenance And Repair Service
Warranty:
2 Years Warranty
Application:
Rice Processing,sorting,wheat,grain Cleaning And Separator
Light Source:
LED
Voltage:
220V 50HZ
Sorting Accuracy(%):
≥99.99
Feature:
High Sorting Accuracy
Whole Power:
3.1
Ejector:
Metal Ejector
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood case package Packing size(L*W*H):2.70*1.72*2.05M
Delivery Time
15 - 20 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

High Accuracy CCD Color Sorter Clove Color Sorting Equipment Multifunction Color Sorter





MODEL WYCS6-384
Chutes(channels) 6(384)
Sorting accuracy(%) ≥99.9
Carryover rate (bad:good) ≥12:1
Output(T/h) ≥4
Voltage 180-240V/50Hz
Power supply(kw) 3.1
Work Air Pressure(Mpa) 0.2-0.3
Air consumption(L/min) 1500-3200
Air supply(Mpa) 0.6--0.8
Dimension(L*W*H) mm 2595*1540*1852
Weight(kgs) 1100
Package Plywood case
Package Size mm 2645*1590*1902



Main Parts Parameters/ brand Parts Advantage and warranty
Channels 64*6=384 1.High quality aluminum alloy 2.Anodic oxidation 3.Surface polishing treatment 4.Material Slipping steadily 5.wear-resisting,wearproof 6.The service life is long.
Pixel of camera 5400 1.High accuracy 5400 pixels 2.High perfomance with high resolution.warranty:2 years
CCD sensor Toshiba High Sensitivity and resolution warranty:2 years
Light source LED Lamps

1.Luminous evenly 2.The service life is long 3.The light is not weak for long time





Ejector Metal 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months.
Filter YSC/CKD 1.High filtration accuracy 2.High filtering speed 3.durable and long time service.
Screen Touch screen 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:2 years
Hopper 304 stainless steel 1.Rust protection 2.Wear-resisting,wearproof
Package Plywood case 1.Stable structure no deformation 2.Easy to transport

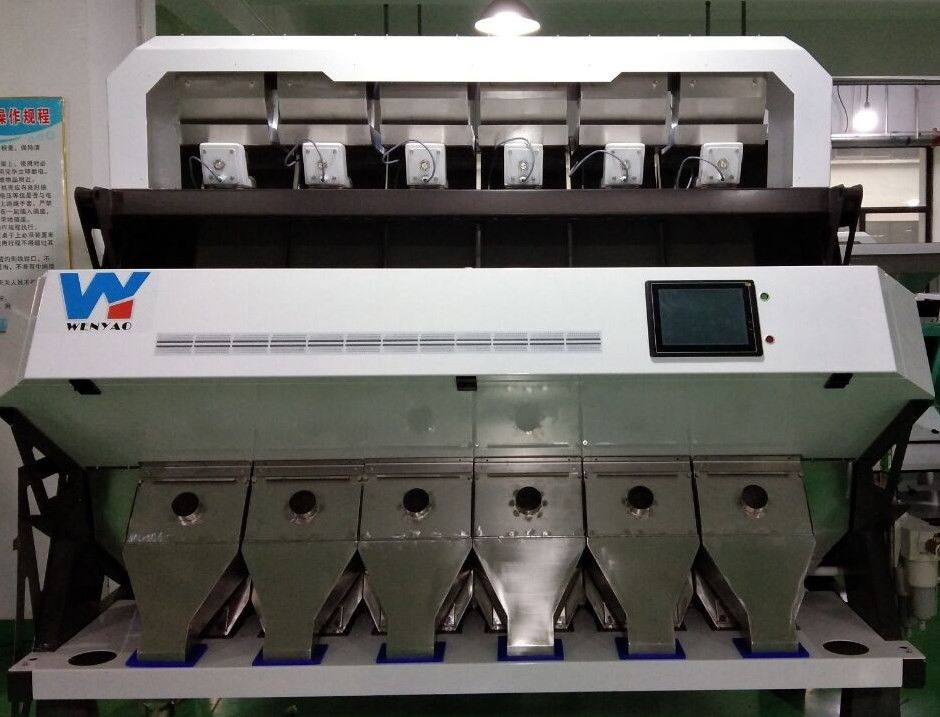

High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 0



Working Principles

The main components of the color sorter are feed hopper, vibrating feeder, chute, light source, background plate, CCD lens, outlet hopper, nozzle, air compressor, air tank, and filter.

Feeding system

It consists of feeding hopper, vibrating feeder, and chute. Raw material enters into vibrating feeder from the feeding hopper, then automatically be arranged into a series of continuous current line by vibration and a guiding mechanism, and fall to a detection zone at a constant speed after being accelerated by the chute. to ensure that the material is clearly present in the sorting cabinet. The feeding system also controls the capacity of the color sorting machine in addition to the function of providing raw material.T through the adjustment of the vibration amount of the feed hopper flow control plate and the vibration hopper, the control of the output of the color sorter per unit time can be realized.

Optoelectronic system

The Optoelectronic system is the core part of the color sorting machine, which is mainly composed of an LED light source, background plate, CCD lens, and related auxiliary devices. The light source provides stable uniform illumination of the material being tested and the background plate. The CCD lens converts the reflected light of the material to be measured into an electrical signal in the detection area. The background plate provides a reference signal for the electronic control system.

Sorting system

The sorting system consists of accessories such as sorting cabinet, nozzles, air supply. The nozzle has been experimentally proved that the nozzle spacing and the number of nozzles are one of the key factors affecting the accuracy of the color sorter.

Cleaning system

The cleaning system consists of cylinders, glass cleaning brushes, and other components. Because some items come with the dust and other impurities that may adhere to the glass during the color sorting process. Once the dust and impurities are attached to the window glass, the optoelectronic system may cause chain-chain problems such as false detection, which will affect the color sorting accuracy and carryover ratio.

Operating System

The large-screen wide-angle touch screen is used to preset multiple color sorting modes for customers. And establish a friendly man-machine interface, according to the specific conditions of materials convenient and quick to achieve adjustment.



Examples of color sorting:



High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 1







From Customer's Site :





High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 2High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 3High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 4High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 5





How can a color sorter benefit your business?

  • Multi-Functional

This product can be used in agricultural, grain, oil, chemical, pharmaceutical and other industries, especially suitable for rice, tea, sesame, beans, seeds, raisins, plastic, ore, peanut, pepper, and other color sorting field.

  • High Efficiency

Compared with manual sorting, a color sorter machine is labor-saving, time-saving, high efficiency with much lower processing cost, it can dramatically improve material accuracy to bring economic and social benefits for customers all over the world.





  •

Certificate:



High Accuracy CCD Multifunction Color Sorter 2 Years Warranty 6
