CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip

CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip

Mini Plastic Color Sorter Machine

CCD Camera Plastic Color Sorter Machine

Place of Origin:

China

Brand Name:

WENYAO

Certification:

CE & ISO9001

Model Number:

WYB1

Contact Us

Request A Quote
Product Details
Color:
Blue Frame Or According To Customer Requests
Chutes:
1
Channels:
64
Sorting Accuracy(%):
≥99.9
Remote:
Wifi Remote Control
CCD:
Toshiba
Camera:
RGB Camera
Certificate:
CE & ISO9001
Lamp Source:
LED Variable Light
Application:
Plastic Sorting
Hopper:
Stainless 304 Food Grade
Warranty:
2 Years
Type:
New
Throughput:
0.2-0.5t/h
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package
Delivery Time
7-10 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200PCS Per Month
Product Description

Intelligent CCD Camera Mini Plastic Pet Color Sorter Machine

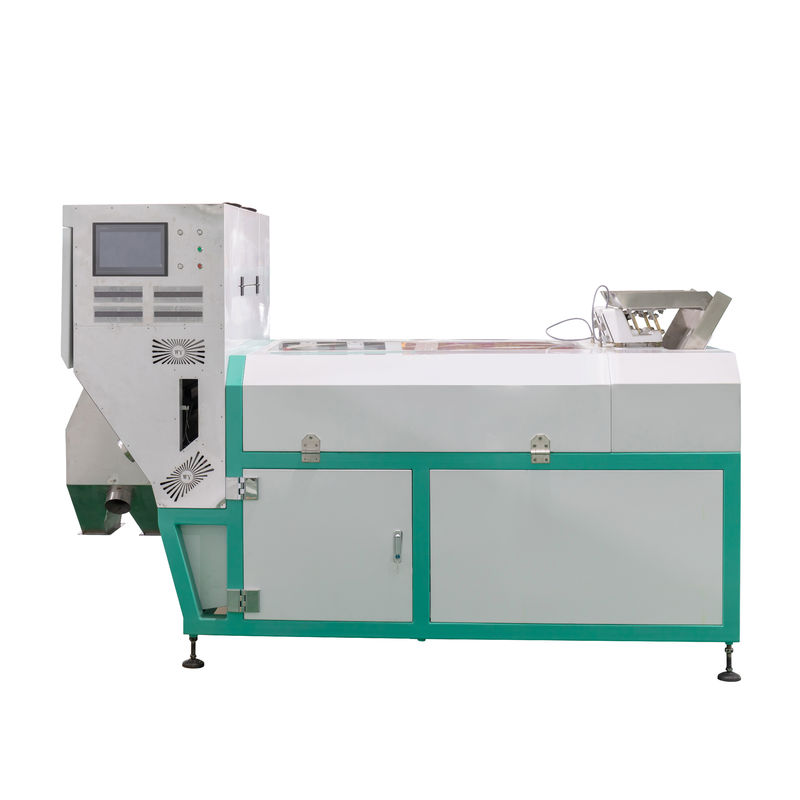

Mini sorter machine working principle:



CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip 0



When color sorter is running , the materials in the hopper is uniformly distributed into each chute because of the action of vibrator.while the materials dropping ,CCD sensor is starting.If the cameras catach the unqualified materials or impurities,PLC will order the ejector to blow the bad goods into the hopper.



Technical Parameters:

MODEL WYB1
Chutes/Channels 1/64
Throughput(t/h) 0.2-0.5t/h
Sorting Aaccuracy ≥99.9%
Power 1.5kw
Power Voltage 180-240V/50Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <0.6M3/Min
Weight 450kg
Diamension(L*W*H) 2450*1010*1539mm

Throughtput:Different impurity with different throughput.



Features:
1.Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2.America FPGA processing chip.
3.Japan Toshiba CCD sensor.
4.Metal ejectors/valves with more than one billion lifetime
5.Lens:Japan Nikon Lens .
6.Filter: Japan CKD filter
7.Power source:Taiwan Meanwell
8.All LED light source,more longer lifetime and save power
9.Flexem Humanized touch screen
10. WIFI remote control system,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service



►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.

►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.

►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.

►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.


Examples of color sorting:

CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip 1


CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip 2
CCD Camera Mini Plastic Color Sorter Machine America FPGA processing chip 3
