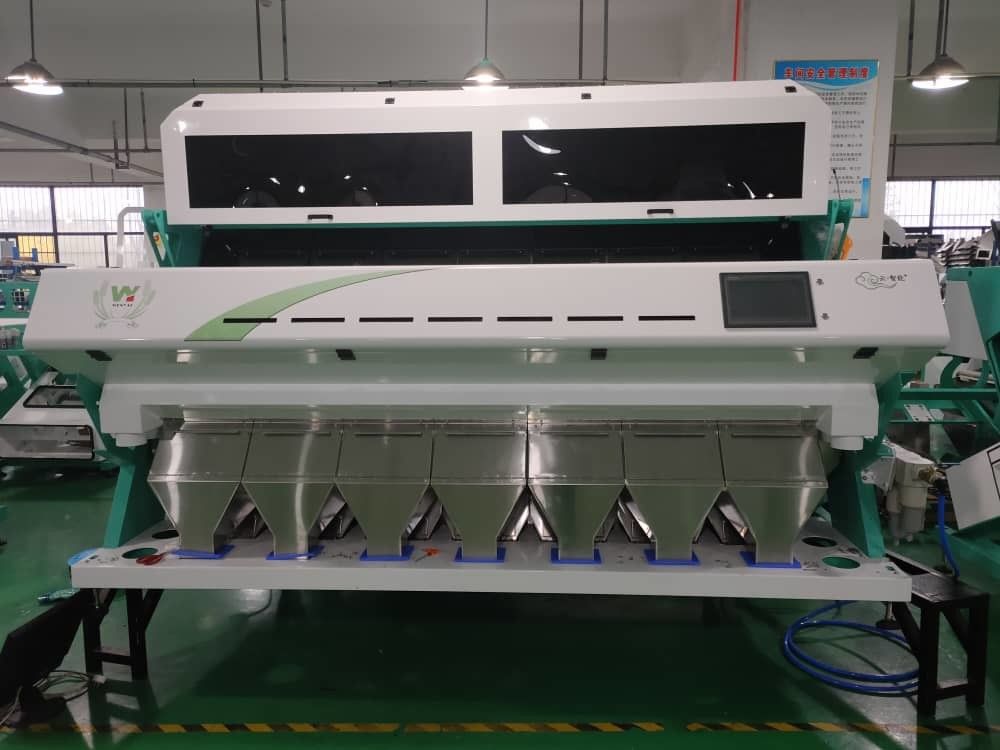

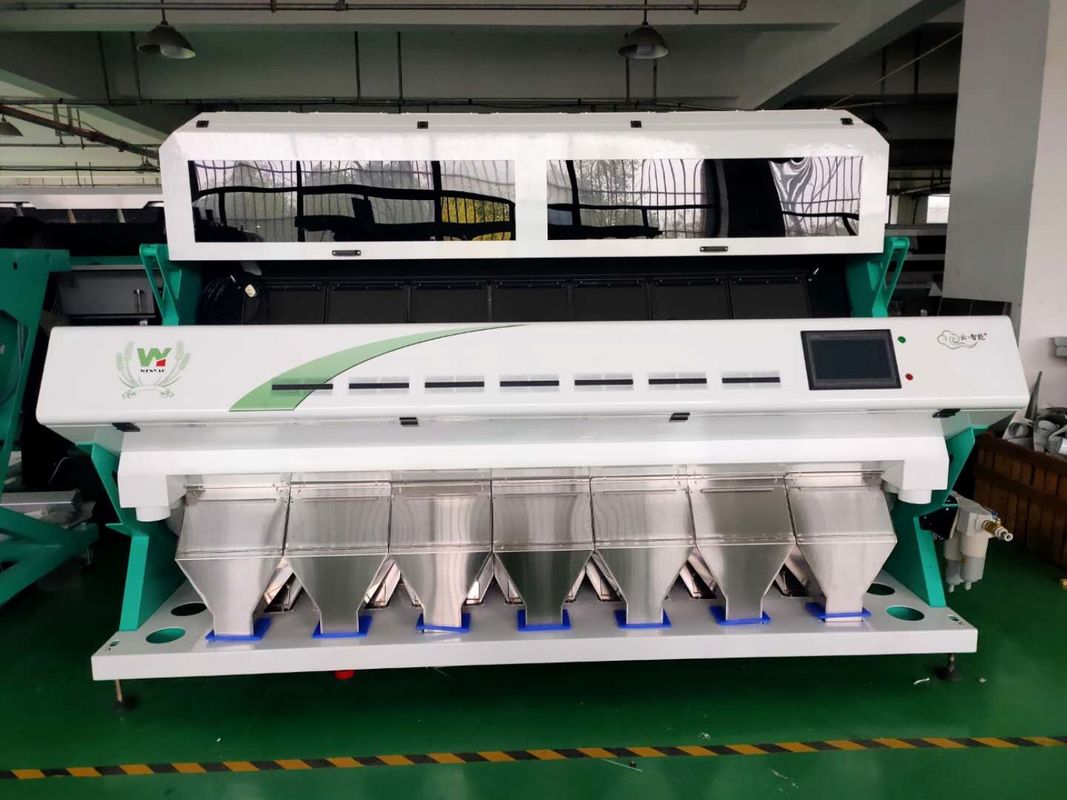

Optical RGB Wheat Color Sorter 7000kg/h with Two CCD cameras

Optical CCD And RGB Wheat Color Sorter Machine For Sorting Wheat With High Sorting Accuracy

1. Wheat Color Sorter Machine Working Principle

In color sorting stage, the grain pile comes into the hopper, from there it goes into the vibrating feeder. The vibratory feeders spread and leveled the grain to a single-layer flow.Two CCD cameras are installed at the two sides of the control area. The single-stream from e.g. Cereal is scanned by the cameras. The data of the video cameras are used in the arithmetic unit and are analyzed in real time. From the results of image analysis of the signals, an air flow pulse is generated by opening the valves at the moment on the fly by the detected particle. The compressed air pulses with a pressure of (0.4--0.6 MPa), which is generated only for the duration of a few milliseconds, blowing the grain into the corresponding receiver module.

Wenyao Color Sorting Machine Function:

When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.

2.Technical Parameters:

3.Machine Features:

Focus 1:CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

Focus 2:LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Focus 3:Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Focus 4:Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.

4.Examples of Color Sorting Examples

5.Our Service:

Before Sale
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.

6.Packing and Delivery:

Packaging Details:
Our products use professional wooden cases with PE plastic bag.

Package size will depend on each model size.

Delivery Detail:
Within 15 - 20 days after received deposit.
