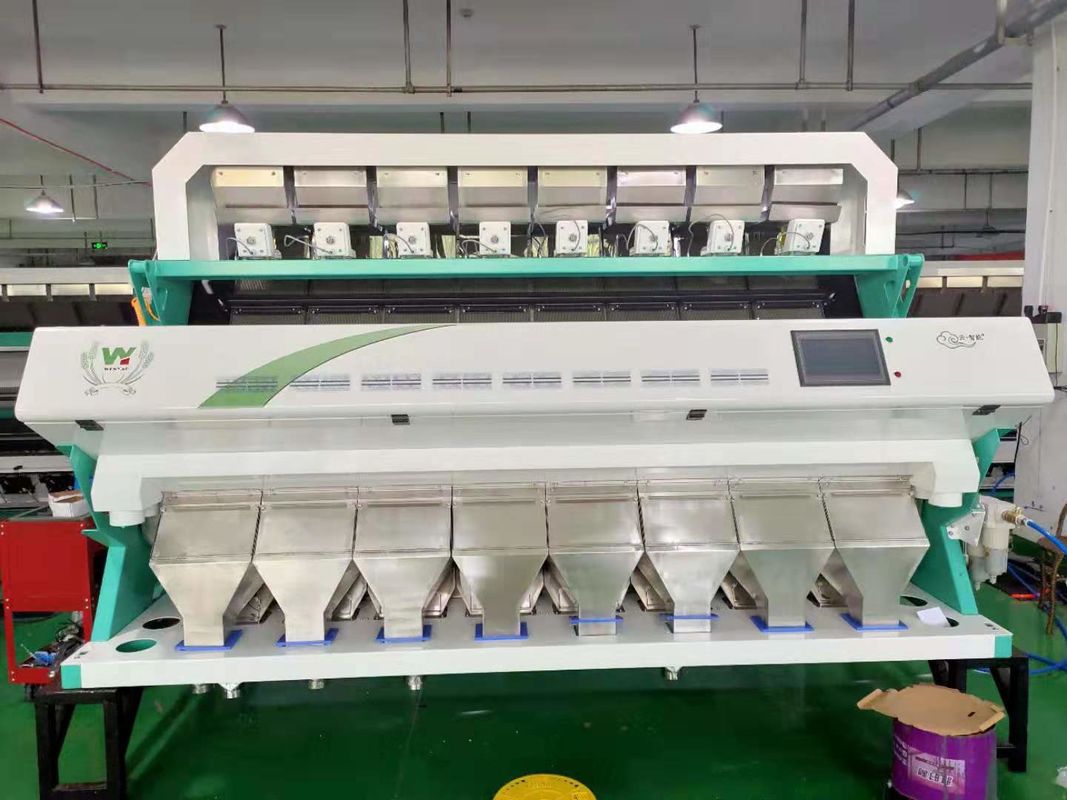

High Capacity Peeled Garlic Vegetable Sorting Machine
Vegetable Color Sorter Function:
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCD signal while the materials are dropping is in testing. If it is found that there are unqualified materials or impurities in the materials, the ejector will blow the defective goods in the hopper.
What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.
Color Sorter Machine Working Flow
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameters:
| MODEL | WYCS8-512 |
| Chutes/Channels | 8/512 |
| Throughput(t/h) | 2-4t/h |
| Sorting Aaccuracy | ≥99.99% |
| Power | 5kw |
| Power Voltage | 180-240V/50Hz |
| Air Source Pressure | 0.6-0.8Mpa |
| Air Consumption | <4M3/Min |
| Weight | 1500kg |
| Diamension(L*W*H) | 3025*1540*1852mm |
Features:
►Automatic computing and intelligent identification with high speed camera.
►5400Pixel CCD image acquisition system with high speed chip.
►Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
►Self design high frequency ejectors,It means high speed and accurate sorting performance.
►Low temperature LED light source system,Cooling system to make the LED lamp more long life.
►WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
►Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
►Variable light background easy to operate.
Examples of color sorting:
Product Application:
Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and frut:
Such as: Dired Garlic ,Onion, Olive,Coffe Cherry,Jujube ,Dried fish and shrimp
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
