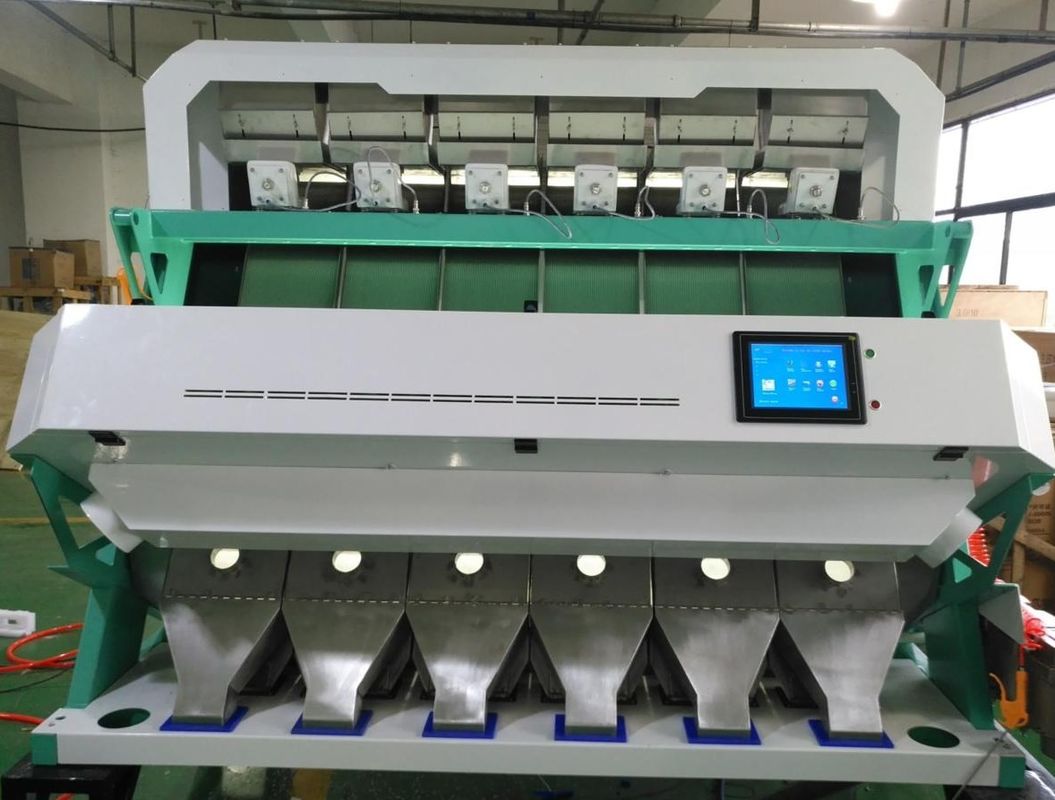

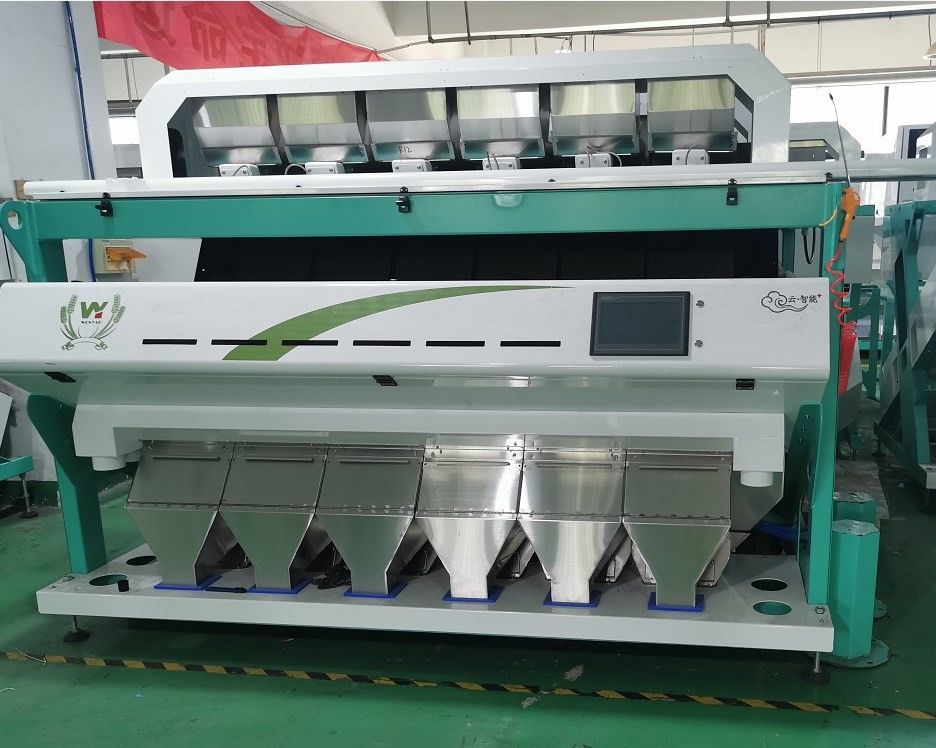

Grain Optical LED Intelligent RGB CCD 6 Chutes Quinoa Color Sorter
Upgrading Grain Crops Millet Cereal Color Sorter Machine Multifunction Color Sorter
Parameters as below:
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryover rate (bad:good) | ≥12:1 |
| Output(T/h) | ≥4 |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
Color sorter work principle:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Examples of color sorting:
Specialties Cereals:rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Others:tea,raisins,wolfberry,pepper.
Machine Features:
1. Automatic computing and intelligent identification with high speed camera.
2. 5400Pixel CCD image acquisition system with high speed chip.
3. Intelligent dust cleaning system,It means you can set cleaning time and period according to your need.
4. Self design high frequency ejectors,It means high speed and accurate sorting performance.
5. Low temperature LED light source system,Cooling system to make the LED lamp more long life.
6. WIFI remote control system,It means color sorter connecting to the internet,You can use mobile phone or computer to operate color sorter.
7. Easy to operate touch screen with english,spanish,german,russian and so on more than 20 languages.
From Customer's Site :
Rrequently Asked Questions :
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to discard). we send our video to you.
4. How about the guarantee period?
Two years
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6. Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7. Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
