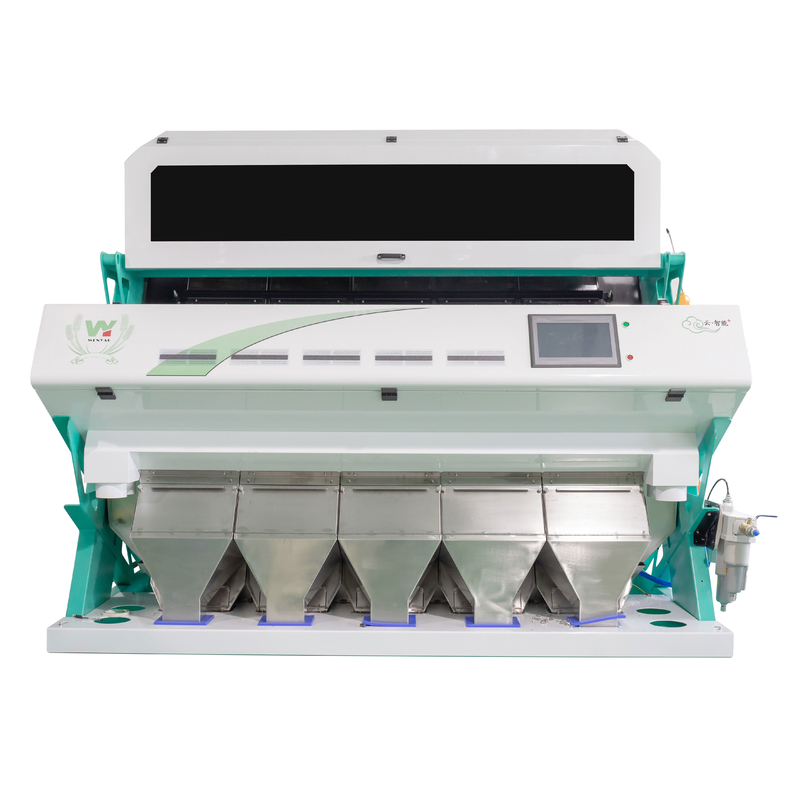

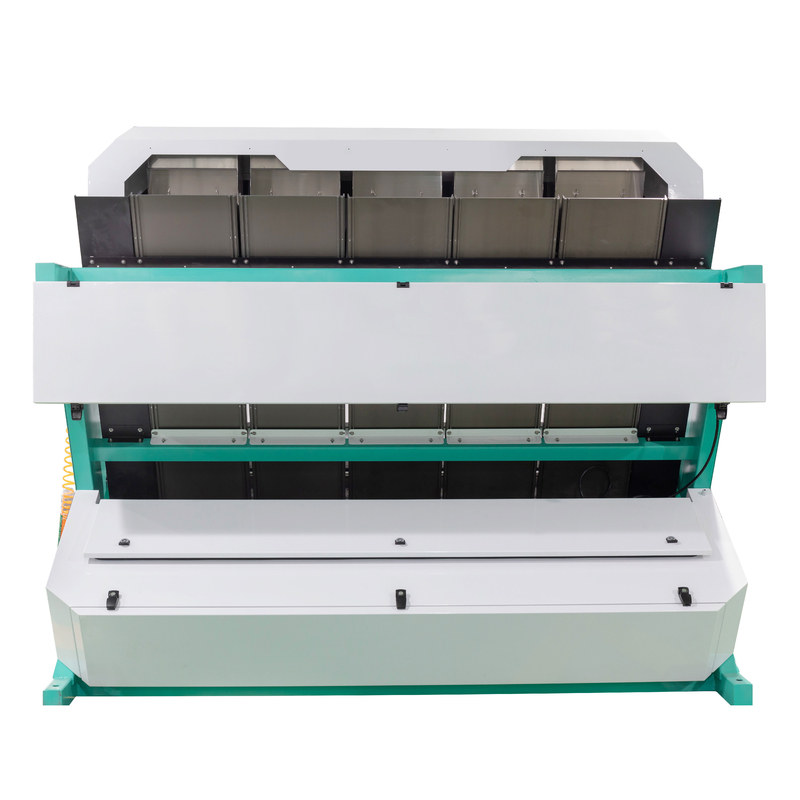

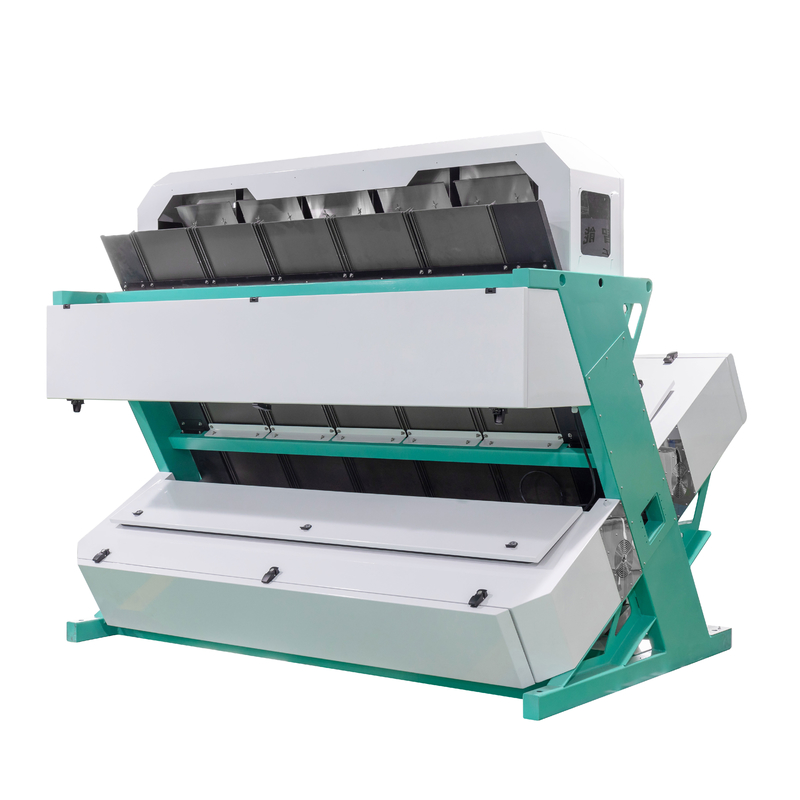

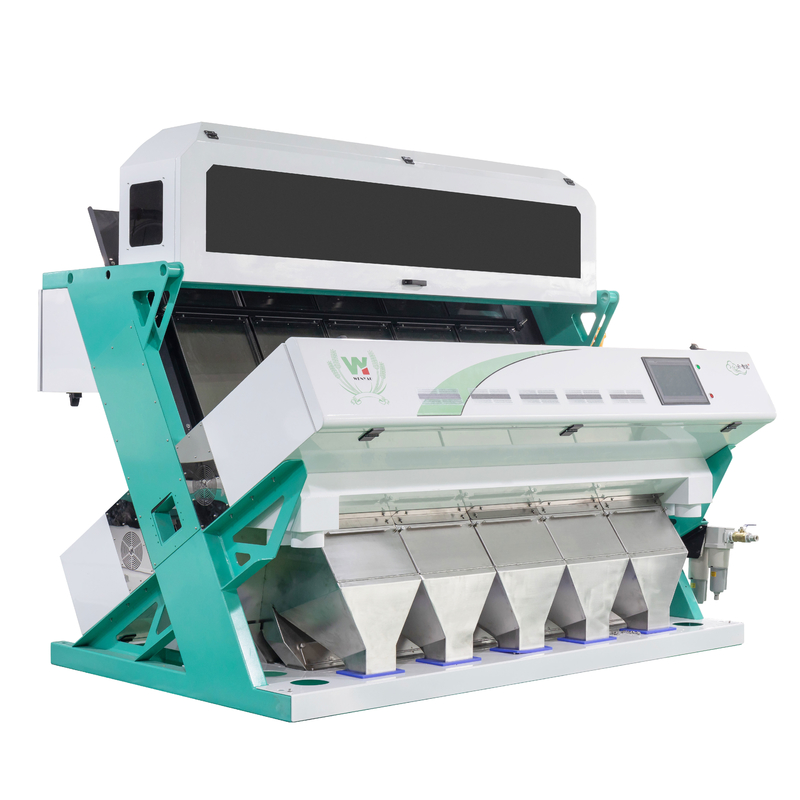

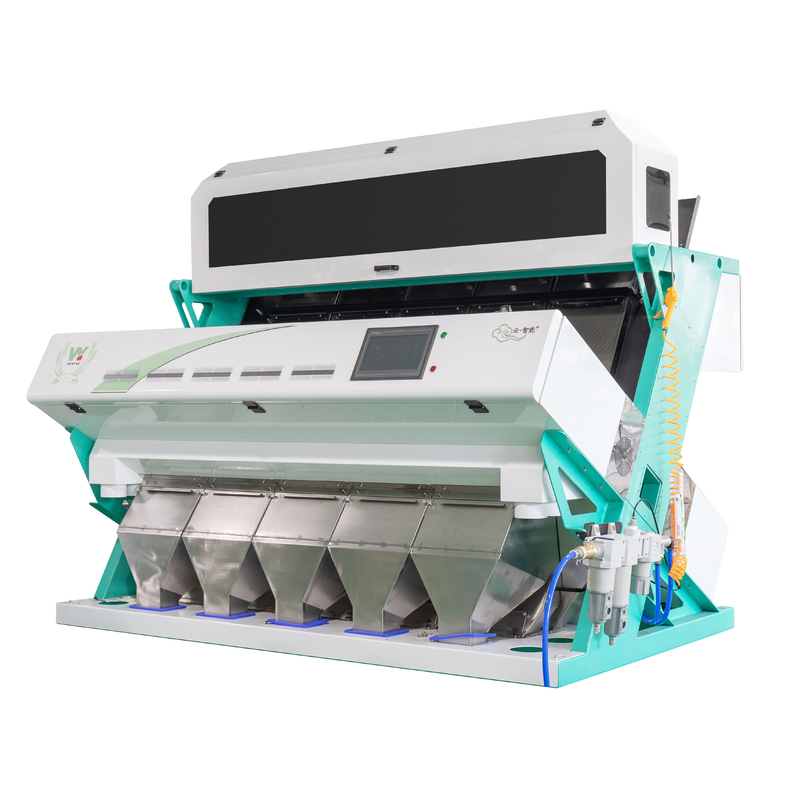

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function

Cereal Grain Sorting Machine

5 Chutes Wheat Sorter Machine

Screenshot Function Wheat Color Sorter

Place of Origin:

Hefei China

Brand Name:

WENYAO Brand

Certification:

CE & ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
2021 Newest Protuct
MOQ:
>=1 Pcs
Function:
Sorting Or Cleaning,remove Bad Wheat
Sorting Accuracy(%):
>=99.98%
Capacity:
5-6 Ton Per Hour
Chutes:
5 Chutes 320 Channels
Weight:
900kg
Processor:
America FPGA Chip
Sensor:
Japan Toshiba
Ejectors:
More Than 10 Billion Times Long Lifetime
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable Price
Packaging Details
Plywood Cases Packing size(L*W*H):2259*1555*1877mm
Delivery Time
7-10 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
245PCS Per Month
Product Description

Intelligent 5 Chutes Wheat Color Sorter Cereal Grain Sorting Machine With Screenshot Function

1. Working principle of color sorter:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.



Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 0





2. Technical Parameters:



MODEL WYCS5-320
Chutes/Channels 5 / 320
Throughput(kg/h) 5000-6000kg/h
Sorting Aaccuracy ≥99.98%
Power 2.9kw
Power Voltage 240V/50Hz or 60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption 1300-2800L/Min
Weight 900kg
Diamension(L*W*H) 2244*1540*1852mm



3. Wenyao Color Sorter Machine Features:

1. It adopts high quality special industrial lenses;

2. Self checking system,5400 CCD camera, and photo processing technology.

3. High speed FPGA technology signal processor with fast detection and high identification rate.

4. Overall unit adopts intelligent closed-loop control.

5. High speed air value is used to ensure quick response, low power consumption and long service life.

6. It uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.

7. Failure alarm automation and modular construction makes easy repair.

8. Combining LED lighting systems with fixed backgrounds and low voltage vibrator, auto-adjusts varying light levels, minimizing vibrations and producing consistent throughput across the chute.

4.Product application:

Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower
Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp Significance of color sorting machine: Compared with manual selection, labor-saving, time-saving, high efficiency, low processing cost.Improve the quality and economic and social benefits of selected products



5. Color Sorting effects of cereal:

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 1

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 2

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 3

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 4

6. color sorting examples of other materials:



Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 5

7. Why choose wenyao?

(1) The most hygienic optical sorters, lowering the risk of contamination

(2) Unprecedented defect and foreign material detection

(3) Industry leading optical sorting technologies

8. Our Service:

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 6

9. customer side

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 7

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 8

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 9


10.Packing and Delivery:
Our products use professional wooden cases with PE plastic bag.

Intelligent 5 Chutes Wheat Color Sorter With Screenshot Function 10
