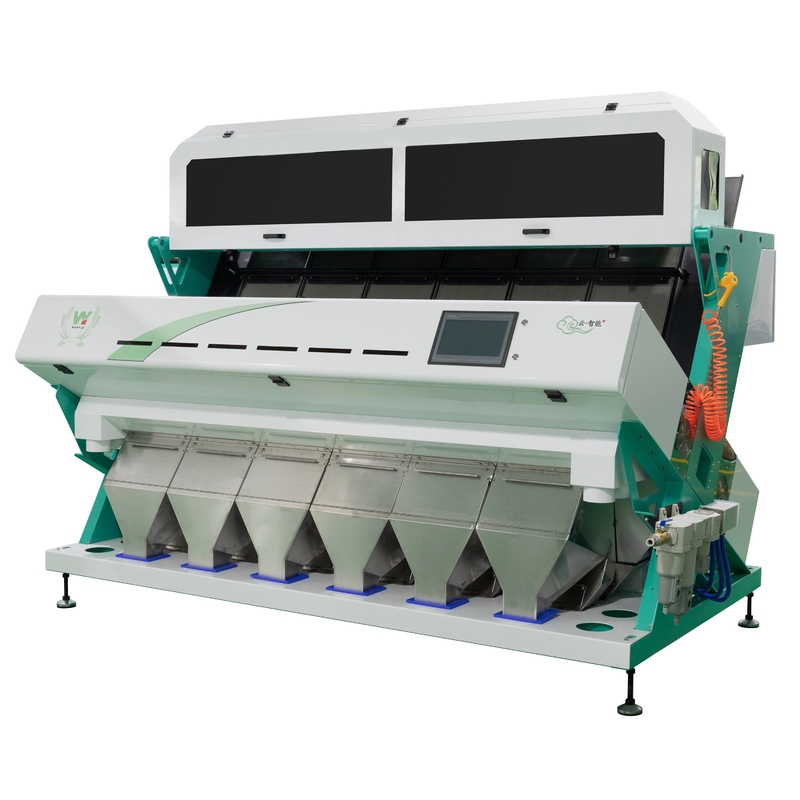

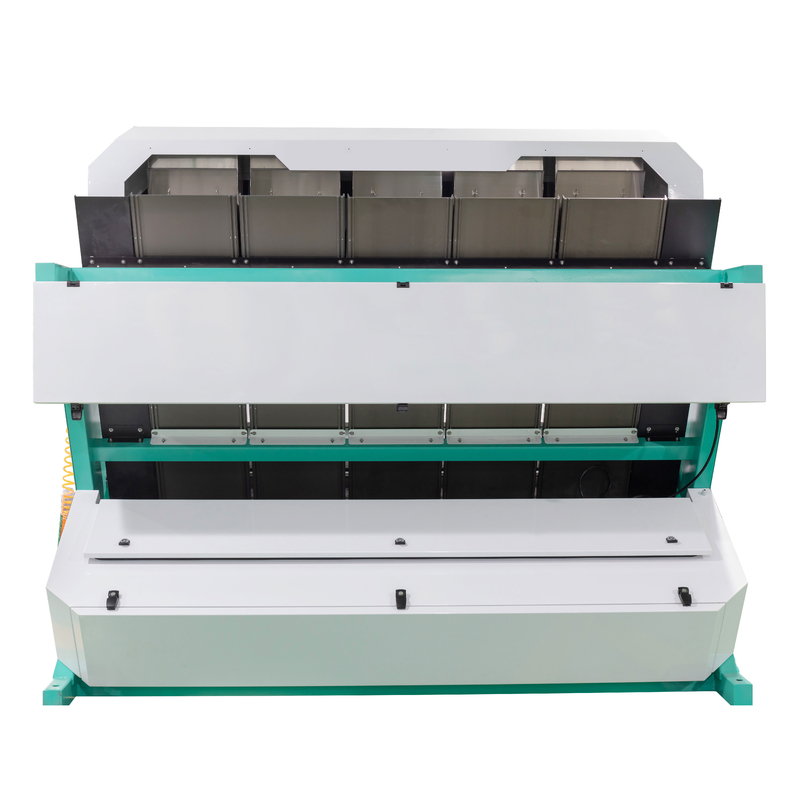

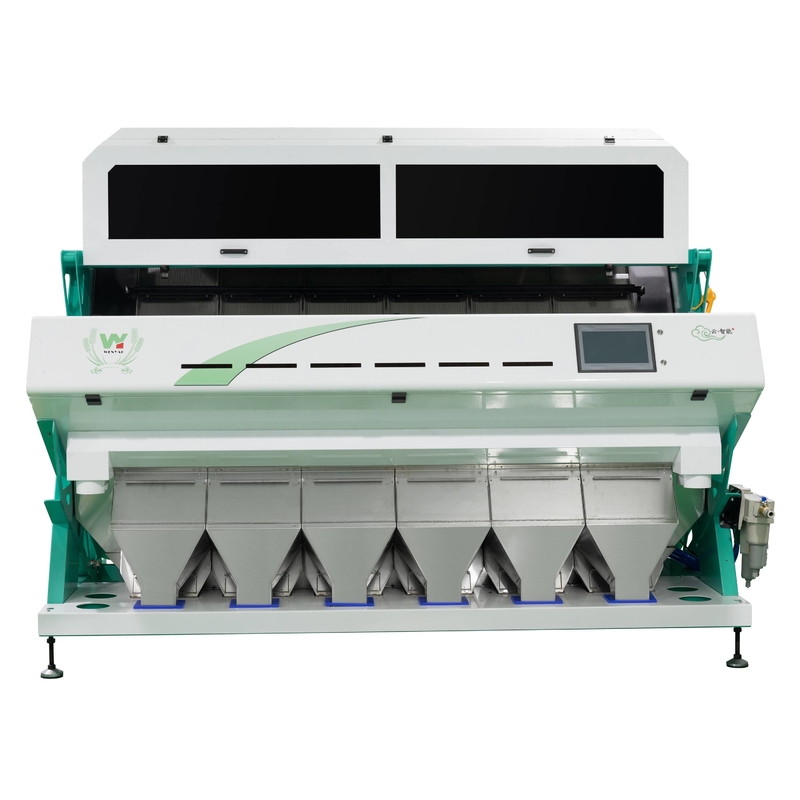

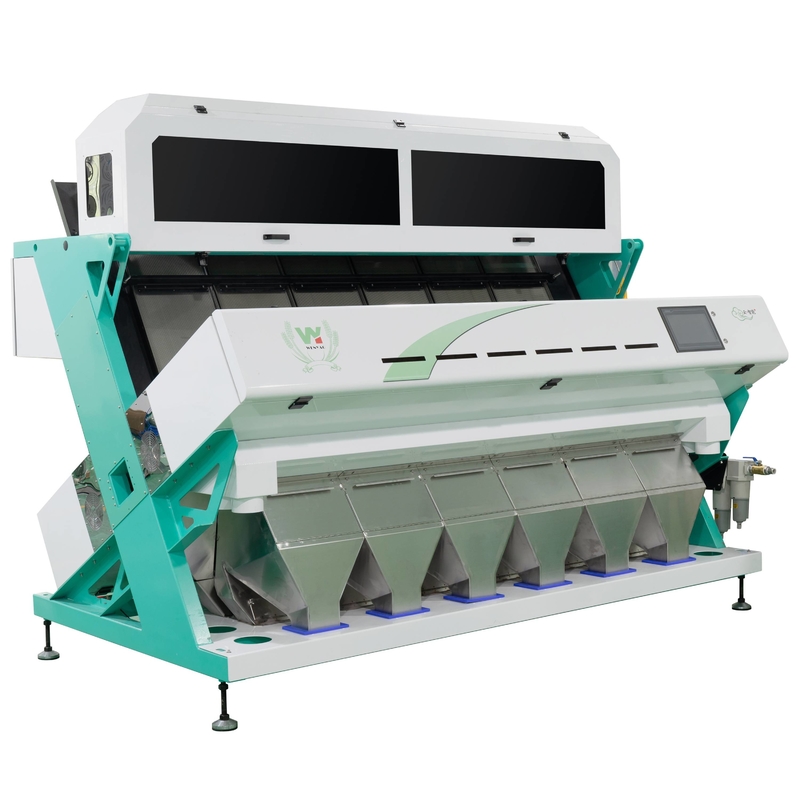

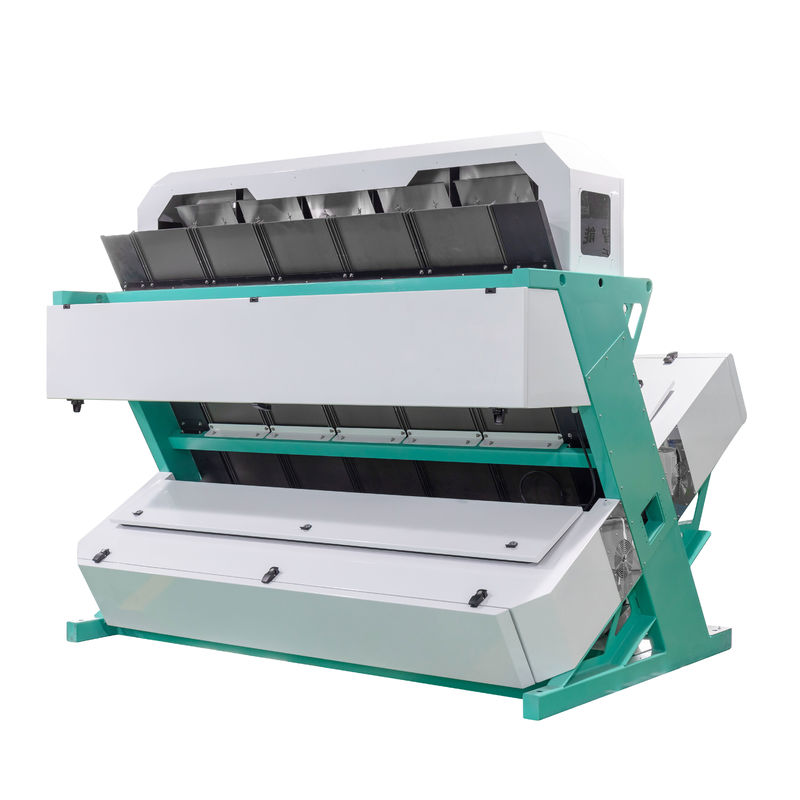

2024 Newest Wenyao 6 Chutes Multifunction Color Sorter Sorting Separating Machine With NIR Camera
Color sorter definition :
Digital color sorter is a kind of high-tech product which is integrated with optics, machinery and electronics and combines embedded system with digital image technique perfectly. The product adopts high speed digitalized module and digital image processing to get high precision sorting and can detect yellowish and speckle rice effectively. Intelligent Modular Structure is created with creative channel encode and decode technique to improve the stability and reliability of the product greatly. Its powerful way of setting parameter which is achieved with Artificial Intelligence make it very easy for the user to operate system. Innovative techniques used in the product represent the future direction of color sorter.
Wenyao color sorter technical parameters:
| MODEL | WYCS6-384 |
| Chutes(channels) | 6(384) |
| Sorting accuracy(%) | ≥99.9 |
| Carryout rate (bad:good) | ≥30:1 |
| Output(T/h) | 3-8t/h |
| Voltage | 180-240V/50Hz |
| Power supply(kw) | 3.1 |
| Work Air Pressure(Mpa) | 0.2-0.3 |
| Air consumption(L/min) | 1500-3200 |
| Air supply(Mpa) | 0.6--0.8 |
| Dimension(L*W*H) mm | 2595*1540*1852 |
| Weight(kgs) | 1100 |
| Package | Plywood case |
| Package Size mm | 2645*1590*1902 |
Wenyao color sorter core component:
| Ejector | Metal | 1.High speed effect 1500times/second.2.Low air consumption 3.long time service.warranty:18 months. |
| Filter | YSC/CKD | 1.High filtration accuracy 2.High filtering speed 3.durable and long time service. |
| Screen | Touch screen | 1.Easy to operate with the man-machine interface 2.High sensitivity of the screen 3.The service life is long.4.Software update service program warranty:two years.5.more than 15 languages are supported. |
| Hopper | 304 stainless steel | 1.Rust protection 2.Wear-resisting,wearproof |
| Package | Plywood case | 1.Stable structure no deformation 2.Easy to transport |
Working Principle of Color Sorter:
Raw Material are put into the machine from its feeding hopper on the top, vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate.Under the effect of light source, CCD sensor receives compound light from materials being sorted.According to the light intensity and color changes,make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Application:
Wenyao multifunction color sorter can used for more than 2500 kind materials,such as:Rice, Seeds,Beans, Tea, Dehydrated Vegetableand fruit, Grain, Corn, Wheat, Nuts, Plastic, Ore,Dried fish and shrimp, raisin,medlar, spice, salt, olive, cherry, blueberry etc .
Examples of color sorting:
