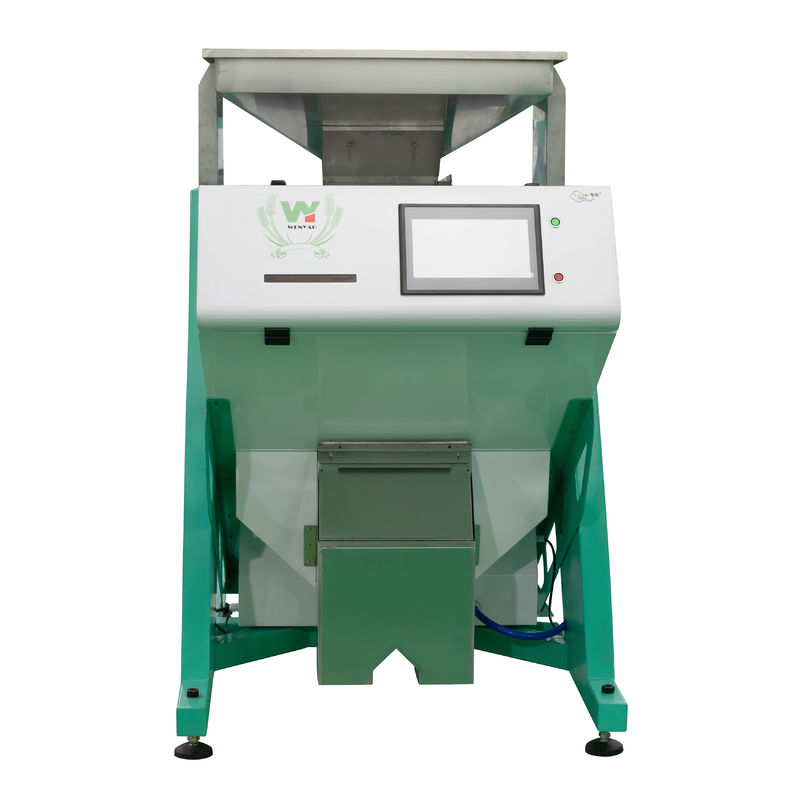

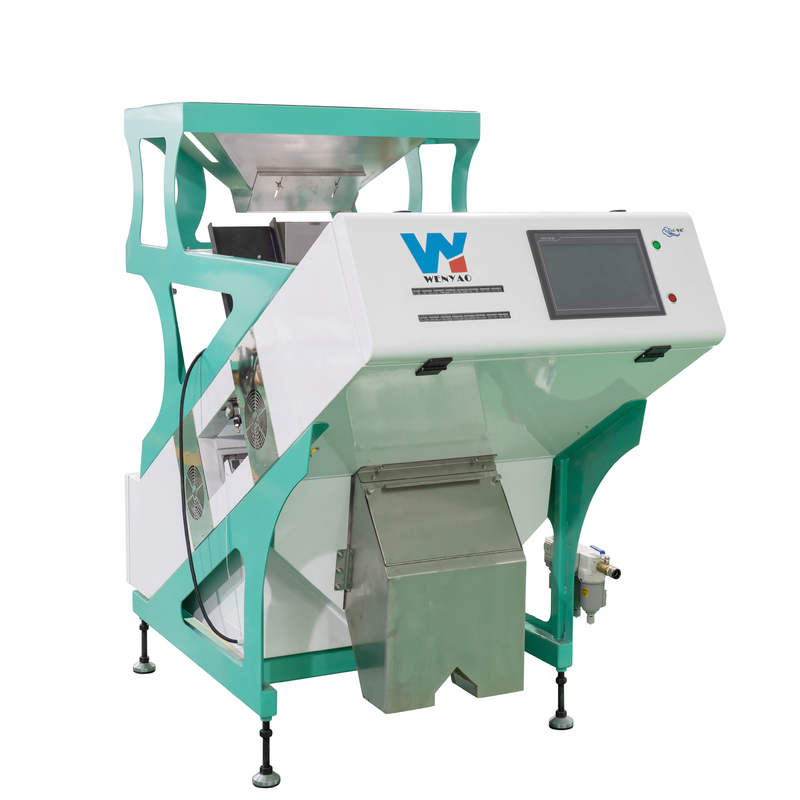

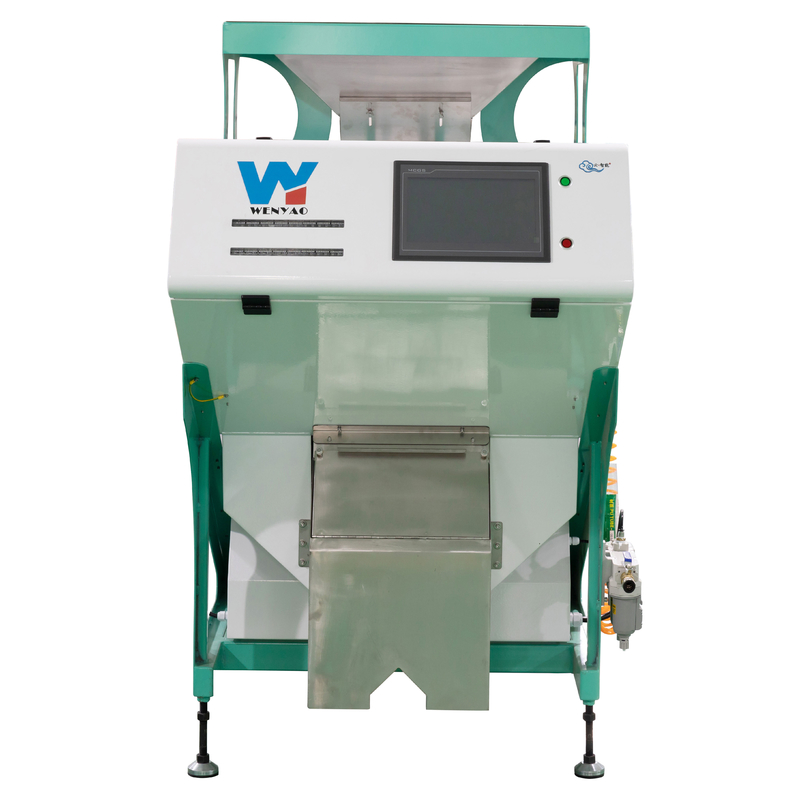

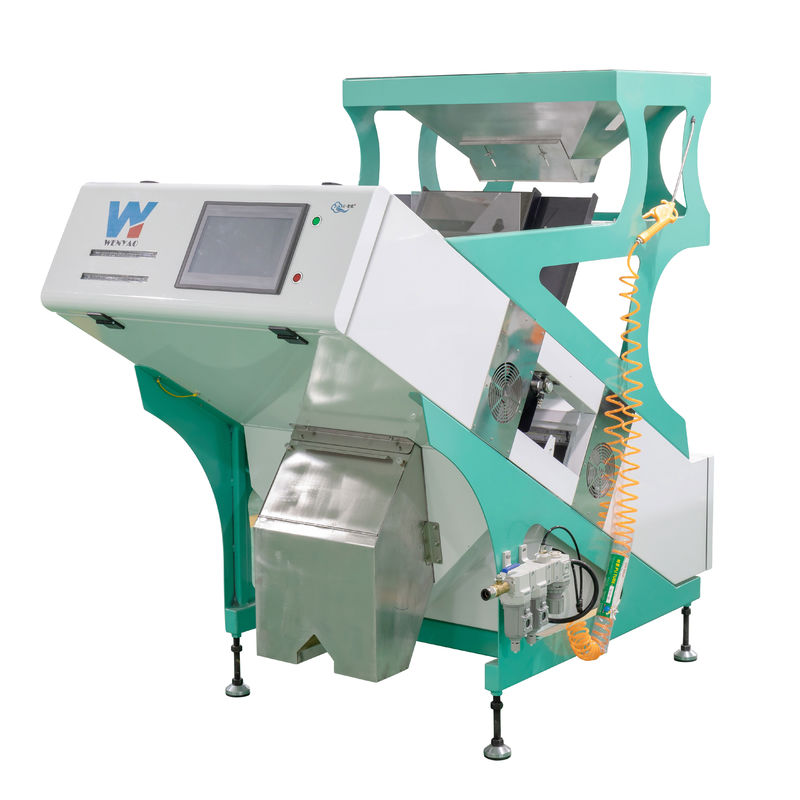

Optical Mini 1 Chute Wheat Color Sorter With CCD High Precision

Optical Mini 1 Chute Wheat Color Sorter Sorting Machine For Wheat With High Precision

Wenyao Color Sorter Core Technology:

1. The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.

2. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.

3. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

4. Unique material trough equipped with special anodizing process can ensure the output and make the product reach the international level. It can be equipped with waterfall flat and narrow chute channel, which can meet many kinds of material color selection.

5.High-quality solenoid valves use high-quality solenoid valves, high frequency, long service life, very low gas consumption, to ensure that the machine output is large, take-out ratio is low, failure rate is low, low energy consumption; in view of the characteristics of large and small particles of raw materials, solenoid valves of different sizes are adopted.

6. Excellent rejection rate (take-out ratio 30:1). Advanced image acquisition system + intelligent image processing algorithm + high quality nozzle system = Excellent rejection rate

7. Simple operation, easy to learn and use, simple optical system design, precise automatic correction system, combined with carefully designed man-machine interface, greatly simplifies the complexity of machine debugging and use, ensures simple operation,and make the machine easy to lean and use.

Types:

Sorters can be divided into chute-type and belt-type color sorters.

Belt-type color sorters break a smaller percentage of the material (important for nuts), and the product stays relatively static during the transport process as it moves horizontally on the belt. In the chute type, material slides on the chute because of gravity, causing collision, friction, and larger vertical movements, thus worsening the ratio of broken material. The belt structure makes the transmission smooth and stable without bouncing of material.

Chute-type color sorters are more common especially for food, as prices are lower, capacities are higher, and products can be seen more easily from both sides, which is important when a dehulled grain has hull only on one side. Chute sorters are usually applicable to specific products, as the chute is designed with special channels for this kind of material based on sizes and shapes of the material. For example, 5 mm chutes are used for rice, grain and plastic granules. Flat chutes are right for plastic flakes, such as PET, or milk bottle flakes.

Wenyao 1chute color sorter technical parameters:

MODEL	WYCS1-64
Chutes/Channels	1/64
Throughput(t/h)	1-2t/h
Sorting Aaccuracy	≥99.99%
Power	0.75kw
Power Voltage	220V/50Hz/60Hz
Air Source Pressure	0.6-0.8Mpa
Air Consumption	0.2-0.6M3/Min
Weight	280kg
Diamension(L*W*H)	780*1527*1543mm

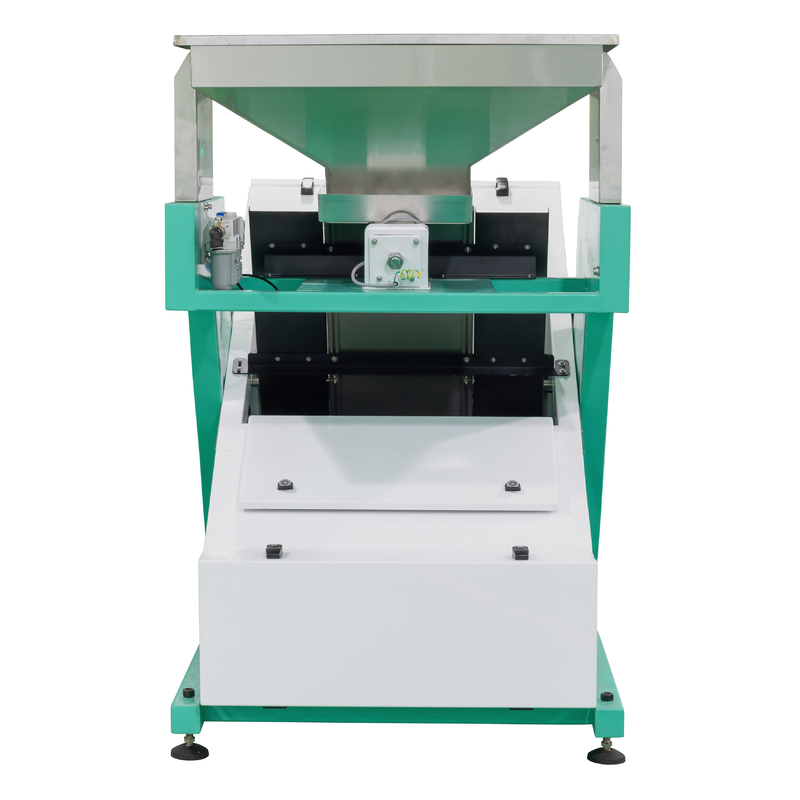

1 Chute detailed image:

Packing delivery:



Our Service:

Pre-sale service:
We will provide detailed solutions for your special requirement and help you know more about our color sorter.
After-Sale Service:Timely, efficient, customer first.
(1)Two-years warranty (life-time service).
(2)Online support and professional video guidance.
(3)Complete training course through the internet.



Frequently Asked :

1. How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2. How long about the guarantee period?

Two years. We supply lifelong software upgrade services for our customers.
3. Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipment, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4. How about after sales service?

By videos or by remote control or local service or engineers could go abroad when required.
5. Will you accept L/C as payment?
L/C ,T/T both OK.

6. Will you test machine before delivery ?

Yes , we will test carefully before delivery ,and save parameters in the machine .

Examples of grain wheat color sorting:
