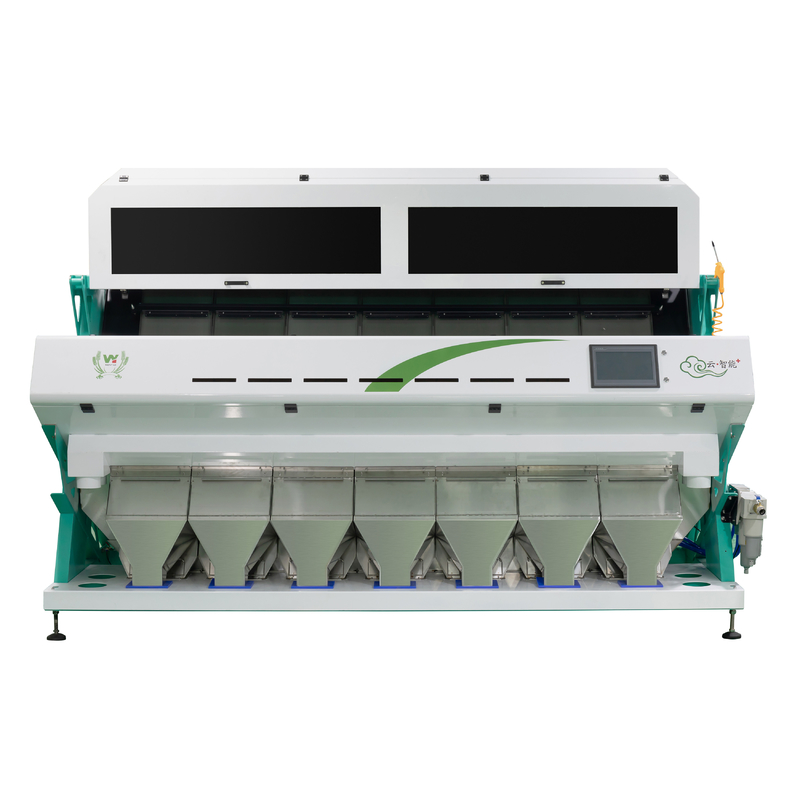

7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras

7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras

7 T/H WENYAO Color Sorter

5400 Pixels Cameras WENYAO Color Sorter

10 T/H WENYAO Color Sorter

Place of Origin:

Hefei China

Brand Name:

WENYAO

Certification:

ISO9001 & CE

Model Number:

WYCS7-448

Contact Us

Request A Quote
Product Details
MOQ:
1 Piece
Sorting Accuracy(%):
>=99.95%
Condition:
2022 Latest And Most Advanced WENYAO Brand
Power Supply:
Taiwan Meanwell
Touch Screen:
12-inch Flexem Humanized Type
Chip:
America FPGA Process Chip
Air Filter:
CKD Filter Or SMC Filter
Lens:
Japan Nikon Lens
Chute:
7(448)
CCD Sensor:
Japan Toshiba CCD Sensor
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
Plywood case package
Delivery Time
12-25work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
225Pieces Per Month
Product Description

7-10T/H WENYAO Color Sorter With Advanced RGB Cameras And 5400 Pixels Cameras



1. WENYAO Color Sorter Machine Working Flow

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber





What is Chute in one color sorter?
Just like one road let the material go through it ,then can go to the camera detected area correctly,You can see the following picture.



What is a CCD in a camera?
Stands for "Charged Coupled Device." CCDs are sensors used in digital cameras and video cameras to record still and moving images. The CCD captures light and converts it to digital data that is recorded by the camera. For this reason, a CCD is often considered the digital version of film.







7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras 0



2. Technical Parameters:

7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras 1

MODEL WYCS7-448
Chutes/Channels 7 / 448
Throughput(T/h) 5T/h-7T/h
Sorting Aaccuracy ≥99.99%
Power 3.9kw
Power Voltage 180-240V/50-60Hz
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 1350kg
Diamension(L*W*H) 2905*1540*1852mm



3. Machine Features:

7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras 2

Wenyao color sorter Features:

1. Most advanced RGB cameras with 5400 pixels linear industry CCD sensor .
2. America FPGA processing chip.
3. Japan Toshiba CCD sensor.
4. Metal ejectors/valves with more than one billion lifetime
5. Lens:Japan Nikon Lens .
6. Filter: Japan CKD filter
7. Power source:Taiwan Meanwell
8. All LED light source,more longer lifetime and save power
9. Flexem Humanized touch screen
10. WIFI remote control system ,help end user to debug and monitor machine situation in chinese factory during covid-19 period,Supply non-contactness after service



1. The color high resolution CCD image acquisition system uses the color CCD image acquisition system to realize the comprehensive acquisition of the material red, green and blue color information. The color sorter has the human eye's sense ability, the material selection is more realistic and more in line with the requirements; the higher resolution is up to 0.04 mm2, which can accurately identify the fine defects and spots of raw materials. High precision special lens ensures clear and accurate image.


2. Flexible and variable light source equipped with LED system with heat dissipation, long life, low energy consumption and good performance. Different raw materials require different spectral lighting, and tailor the light source according to the needs of customers.


3. The special image processing algorithm uses shape and color combination algorithm according to material characteristics. For complex color materials, the color space after HSV transformation is more intuitive and precise.

4. Examples of Color Sorting Examples



7-10T/H WENYAO Color Sorter With RGB Cameras And 5400 Pixels Cameras 3



Wenyao multifunction color sorter application



Food materials:
Such as: Rice, Wheat, Corn,Oats , Buckwheat,Barley,Cassava,Peanut, Sunflower seeds, Walnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Soybean,Red bean, black bean,chickpea,lentil,others.



Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.



Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.



Tea leaf materials:
Such as:Black Tea,Green Tea,Herb Tea,Corn Flower



Vegetable and fruits:
Such as: Dried Garlic ,Onion, Olive,Coffee Cherry,Jujube ,Dried fish and shrimp



How to get the correct size and suitable price of wenyao color sorter machine?


Step 1. Which kinds of the material do you want to sort ?


Step 2. How much input capacity for the raw materials per hour?


Step 3. In order to know the impurity rate of the raw materials which are needed to be sorted, please send us 3 pictures as following:
1. Raw material picture(feeding in the machine materials)
2. Accepted material picture(you want to save the good materials)
3. Rejected material picture(you want to sort out the bad materials)





5. Our Service:


A: For software:We have installed WIFI remote control system on machine,Once machine arrived in your local we will connect with machine touch screen provide technical assistance from Chinese factory.


B: For hardware:We will supply you the spare parts ship together with machine,In case you face hardware problems,we will guide you how to repair by live videos.


6. Packing and Delivery:

Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.

Delivery Detail:
Within 15 - 20 days after received deposit.
