CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand

CCD Cameras Mineral Sorting Machine

Quartz Stone Ore Sorting Machine

CKD Filter Mineral Sorting Machine

Place of Origin:

Hefei China

Brand Name:

WENYAO

Certification:

ISO9001

Model Number:

WYCS5-320

Contact Us

Request A Quote
Product Details
Condition:
Newest 2022 Color Sorter Machine For Mineral
MOQ:
1 Piece
Sorting Accuracy(%):
>=99.95%
Function:
Minerals Color Sorting
Application:
Mining Processing Line
Machine Dimensions(L*W*H):
1855*1540*1850millimeter
Warranty:
24Months
Filter:
Janpan CKD Filter
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Welcome to negotiated
Packaging Details
Packing size(L*W*H):2550*1720*2050millimeter
Delivery Time
17-25 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
218PCS Per Month
Product Description

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand Color Sorting



1. Minerals Colour Sorting Machine Working Flow

Raw materials are put into the machine from its material hopper on the top, vibrated by vibratiory feeder and sliding along material chute into the zone of observation in sorting chamber through sensors and background plate. Under the effect of lamps source, CCD sensor receives compound light from materials being sorted. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve(ejector) to work, ejecting the discolor grain to reject chamber and good materials continue to fall into the finished accept chamber

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 0



2. Technical Parameters:

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 1

MODEL WYCS5-320
Chutes/Channels 5 / 320
Throughput(kg/h) 3000kg/h-4000kg/h
Sorting Aaccuracy ≥99.99%
Power 2.9kw
Power Voltage 240V/50Hz or Customized
Air Source Pressure 0.6-0.8Mpa
Air Consumption <2.8M3/Min
Weight 900kg-910kg
Diamension(L*W*H) 2244*1540*1852mm




3. CCD Color Sorter Machine Core Parts:



CCD Camera
Japanese TOSHIBA 5340 line
ar CCD, core guarantee of high precision and quick sorting , the smallest to 0.04mm could be locked.

LED system
World leading stable long lifetime LED light, customized LED solution accepted according to specific material.

Control Unit
Advanced Image Processing System, synchronized for multiple operations and sorting mode. Adjust sorting operation to guarantee the sorting accuracy based on complex colors and shapes.

Chute System
Advanced chute design with hundreds of experiments, ensuring smooth flowing, uniform falling speed and less material consumption, optimized machine structure for disassembly and maintenance.



4. Examples of Color Sorting Examples



CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 2

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 3

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 4

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 5



5. FAQ

1). How to install and use the machine?
We will supply the Installation instructions or videos and our engineers will train the operators.

2). How long about the guarantee period?

2 years. We supply lifelong software upgrade services for our customers.
3). Can you supply air compressor, air tank and air filters?
Yes, We can provide above equipments, Our standard offer includes color sorter machine with air compressor, air tank and filters.

4). what about the after sales service?

We have installed wifi remote control in machine

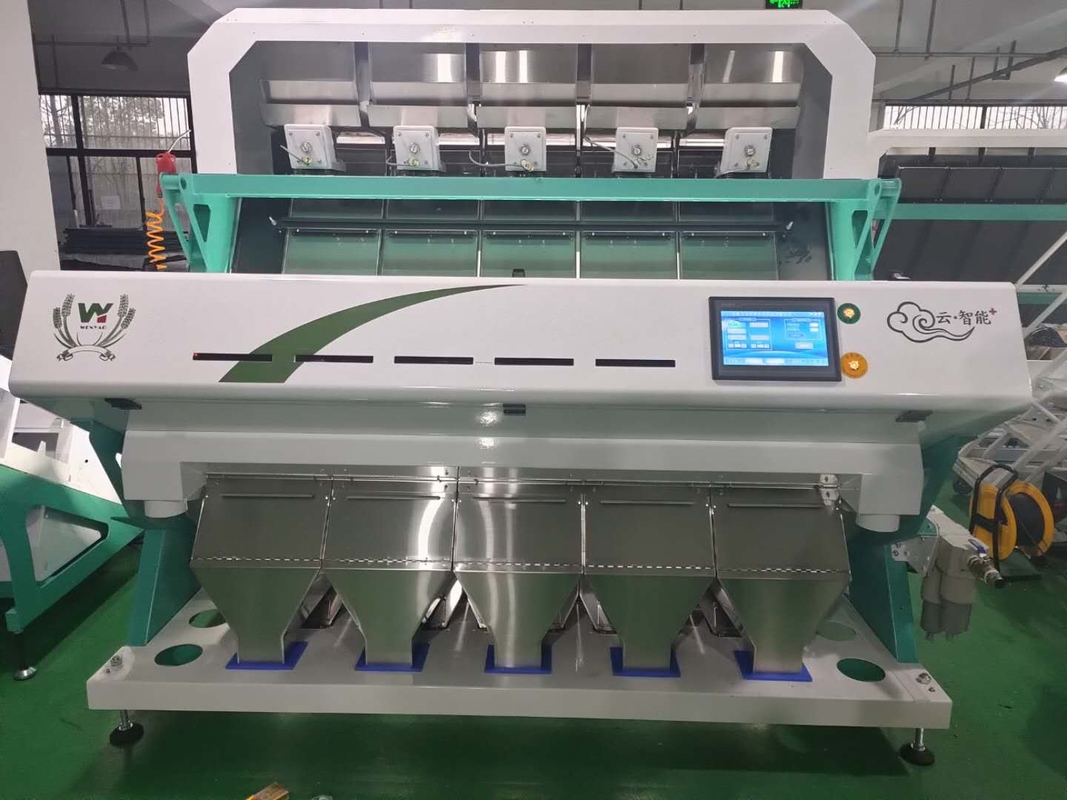

6. Real Photo of WYCS5-320

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 6



7. Our Service:


Pre-sales
We will provide detailed solutions for your special requirement and help you know more about our color sorter.

After-Sale Service
We will test your products at your plant, training your staff, set every file for customer to serve all round service, so as to ensure your machine working under the best situations.

From the date of use machine, we can provide one year free maintenance ( not the reason of vandalism and something unexpected, excluding delicate fittings) and lifetime maintenance.

Engineers available to service machinery overseas, we also can train technical staff for customers.We provide lifelong software upgrade services for our customers for free.


8. Packing and Delivery:
Packaging Details:
Our products use professional wooden cases with PE plastic bag.
Package size will depend on each model size.

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 7

CCD Cameras Mineral Sorting Machine For Quartz Stone And Sand 8
